RGC 7500 gas spring

• Compact design, with extra high force 420 daN to 18 300 daN
• Stroke maximum : 50mm
• Double sealing
• Lubricated guiding
• Can be used in piping system with a rear adapter to :
– connect the gas springs in equi-pressure
– use the half-flange fixations of the ISO range

Print this sheet

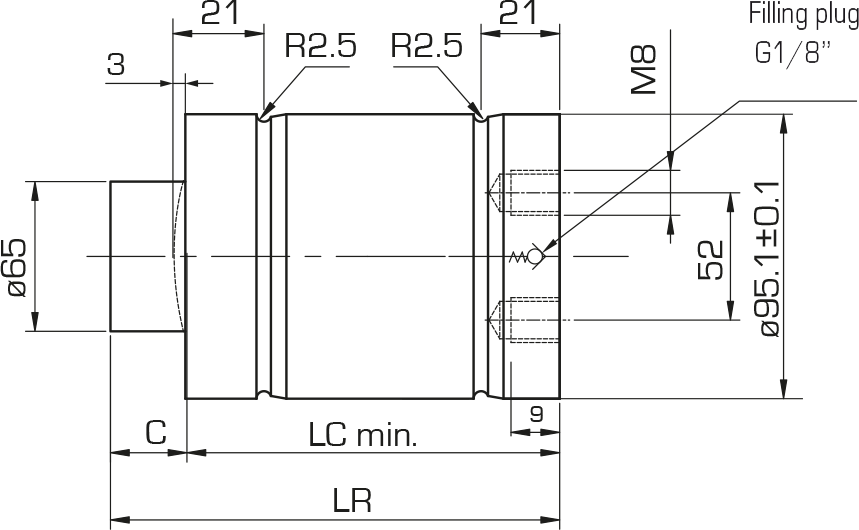

RGC 7500 gas spring : SUPER COMPACT RGC - Quiri - 2
RGC 7500 gas spring : SUPER COMPACT RGC - Quiri - 3
RGC 7500 gas spring : SUPER COMPACT RGC - Quiri - 4
Type Force

daN

Stroke

C

mm

Order code Pressure

MPa

(bar)

Force F1

N *

Force F2

N *

LR LC Weight

Kg

RGC 7500 10 443162/000 15

(150)

(!)

75 400 104 400 90 80 3.00
16 443163/000 105 340 116 100 3.40
25 443164/000 109 820 145 120 3.80
32 443165/000 105 270 182 150 4.40
40 443166/000 106 860 210 170 4.80
50 443167/000 105 690 255 205 5.50

* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa

Example of order: RGC 7500 C50
Spare Kit : 896512/000.
Composition : Seals, valve and lubricant.

(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure (<15 MPa)

RGC 7500 gas spring : SUPER COMPACT RGC - Quiri - 5

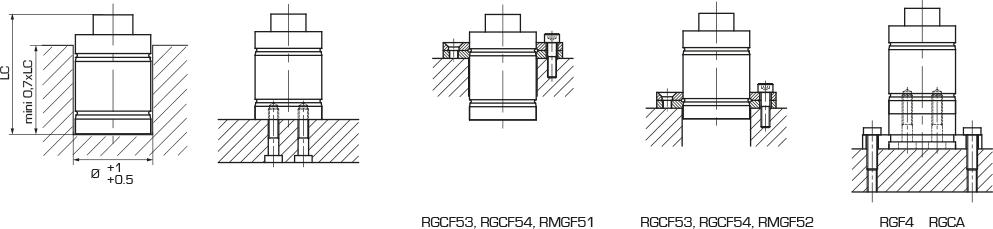

CAUTION : If you fix RGC type by bottom thread, gas spring’s bottom surface should lay completely on the die. RGC with stroke > 25mm should be attached to the die with screws or flanges (no drop-in mounting).
