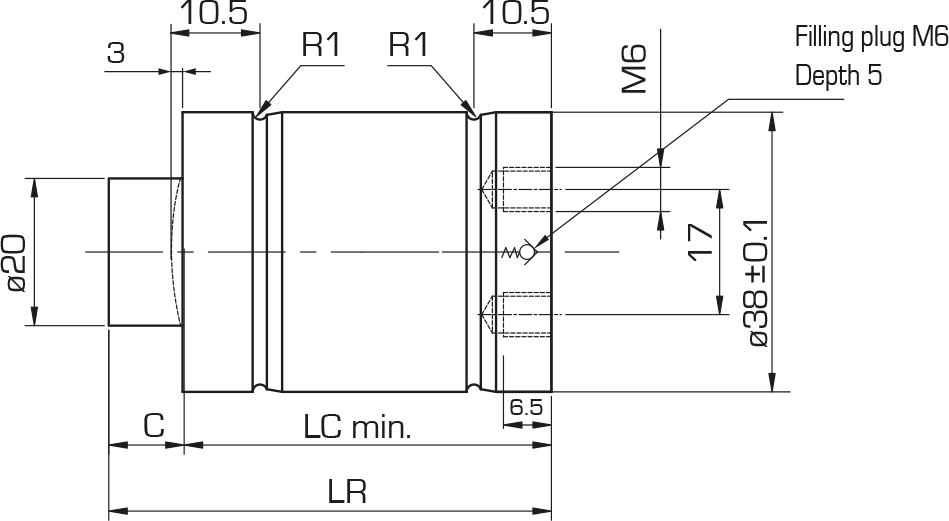

RGC 1000 gas spring
| Type | Force | Stroke C | Reference | Pressure | Force F1 | Force F2 | LR | LC | Mass | 3D Model |
| daN | mm | MPa (bar) | N* | N* | mm | mm | Kg | |||
| RGC | 1000 | 6 | 443131/000 | 15
(150) (!) |
10 610 | 16 410 | 61 | 55 | 0.35 | 3D |
| 10 | 443132/000 | 16 410 | 78 | 68 | 0.41 | 3D | ||||
| 16 | 443133/000 | 16 410 | 100 | 84 | 0.48 | 3D | ||||
| 25 | 443134/000 | 16 240 | 135 | 110 | 0.58 | 3D | ||||
| 32 | 443135/000 | 15 680 | 167 | 135 | 0.68 | 3D | ||||
| 40 | 443136/000 | 15 900 | 195 | 155 | 0.76 | 3D | ||||
| 50 | 443137/000 | 16 080 | 230 | 180 | 0.86 | 3D |
* (N) = Kgf x 9.80665 | (Kgf)=N x 0.101972 | 1daN=1 x 101N | 1bar=1 x 10-1MPa
Example of order : RGC 1000 C50
Spare Kit : 896509/000
Composition : Seals, valve and lubricant
(!) There is a blue sticker on the gas spring body when it is inflated with a special pressure (<15 MPa)
CAUTION : If you fix RGC type by bottom thread, gas spring’s bottom surface should lay completely on the die. RGC with stroke > 25mm should be attached to the die with screws or flanges (no drop-in mounting).
