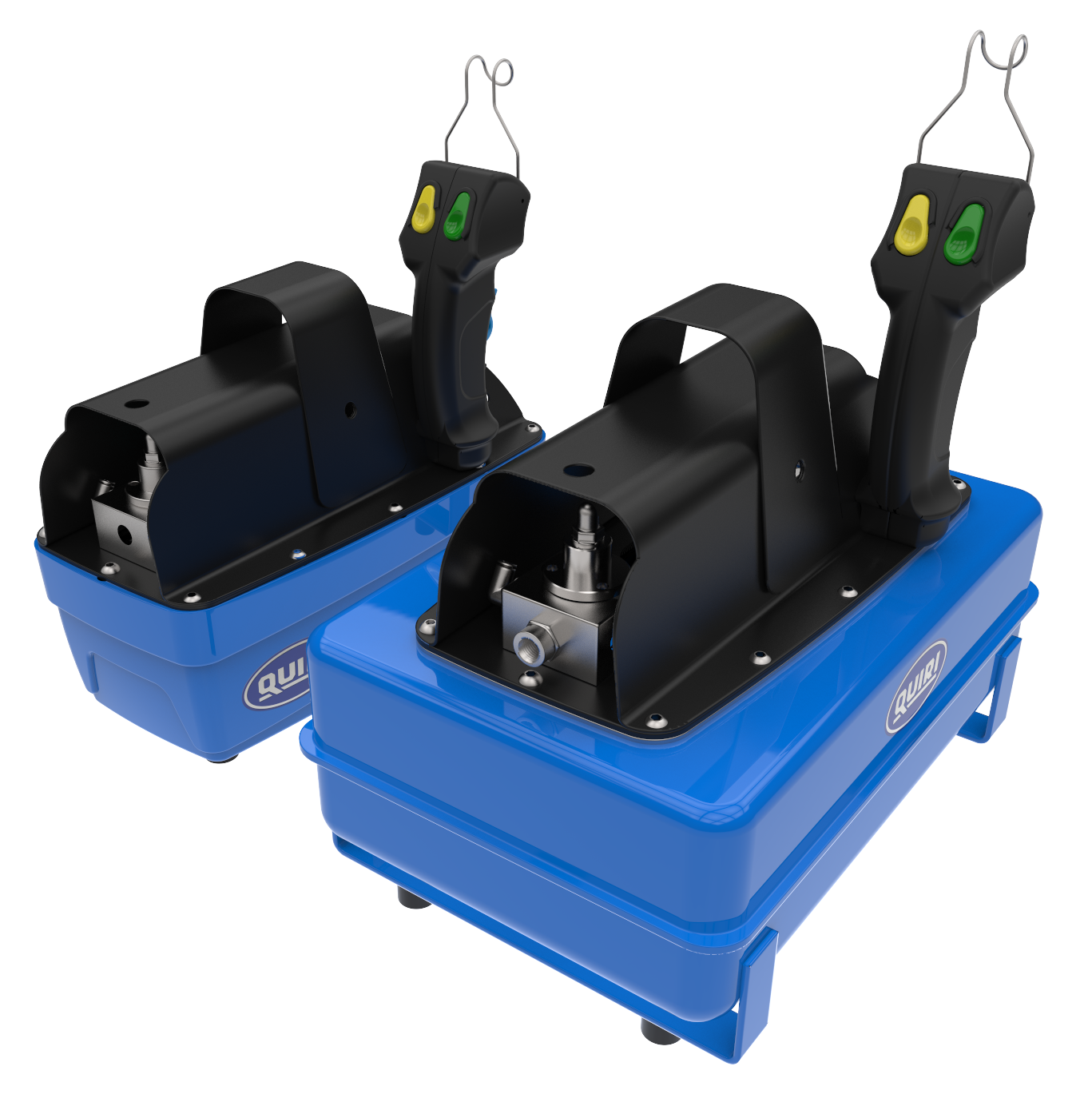

For single acting cylinders
• Hydraulic pressure proportional to air pressure
• Working cycle : advance / hold / return
• External adjustable pressure relief valve, set at:
– 700 bar for PHP 705 et 711
– 1500 bar for PHP 1530
• Oil capacity: 500, 1250 and 3000 cm³ (delivered with oil)
• Air inlet pressure: 7 bar
• Oil flow:
– PHP 705 et 711: from 700 to 50 cm³/min
– PHP 1530: from 1500 to 43 cm³/min
• Air consumption: 270 l/min (without load) under 7 bar air pressure
Other relief valve setting : on request
Maxi. oil pressure at 7 bar air
bar |
Oil flow (no load)
cm3/min |
Oil flow (at maxi. pressure)
cm3/min |
Usable oil capacity
cm3 |

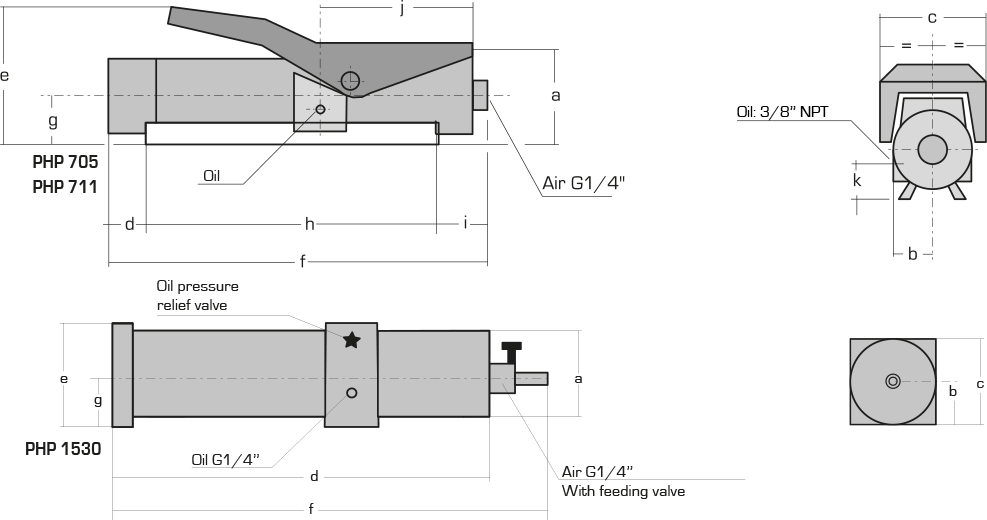

Reference | To use with cylinder… | Dimensions (mm) | Weight
Kg |
||||||||||
a | b | c | d | e | f | g | h | i | j | k | |||||||
700 | 700 | 50 | 500 | PHP 705 | single acting | 120 | 40 | 120 | 40 | 150 | 415 | 55 | 335 | 40 | 180 | 36 | 7,5 |
700 | 700 | 50 | 1250 | PHP 711 | single acting | 120 | 40 | 120 | 300 | 150 | 675 | 55 | 335 | 40 | 180 | 36 | 9,5 |
1500 | 700 | 43 | 3000 | PHP 1530 | single acting | 105 | 65 | 120 | 667 | 125 | 750 | 55 | / | / | / | / | 15 |
