Air hydraulic pumps with foot control – 700 bar – PHP

For single and double acting cylinders

Features
Options

Features

• Hydraulic pressure proportional to air pressure
• Working cycle : advance / hold / return
• Manual operated valve for double acting cylinders (4/3-way)
• Foot operated valve for single acting cylinders (3/3-way)
• External adjustable pressure relief valve, set at 700 bar
• Oil capacity : from 1300 to 4000 cm3 (delivered with oil)
• Model 1300 cm3 in light alloy
• Model 2500 cm3 in polyethylene
• Model 4000 cm3 in steel
• Air inlet pressure: 7 bar
• Oil flow: from 1200 to 70 cm3/min
• Air consumption: 350 l/min (without load) at 7 bar air pressure

Options

• other relief valve setting : on request

Print this sheet

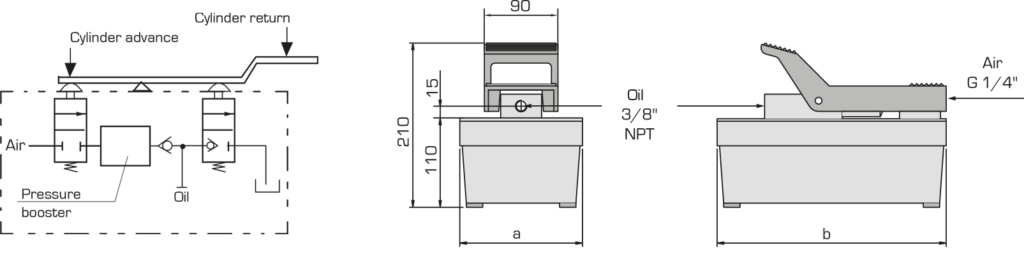

PHP 713/723/753

Air hydraulic pumps with foot control – 700 bar – PHP : Air hydraulic pumps 700 bar - Quiri - 2

PHP 724/754

Air hydraulic pumps with foot control – 700 bar – PHP : Air hydraulic pumps 700 bar - Quiri - 3

Maximum pressure	Usable oil capacity (cm³)	Oil flow (cm³/min)		Reference	To use with cylinder…	Dimensions		Weight (kg)
Maximum pressure	Usable oil capacity (cm³)	no load	at 700 bar	Reference	To use with cylinder…	a	b	Weight (kg)
700	1300	1200	70	PHP 713	single acting	133	280	9
700	2400	1200	70	PHP 723	single acting	170	310	11
700	2400	1200	70	PHP 724	double acting	170	310	13
700	4000	1200	70	PHP 753	single acting	320	320	13
700	4000	1200	70	PHP 754	double acting	320	320	15
