Double acting cylinders, hydraulic return, high tonnage – 700 bar – DL

Steel

Features

Features

• Double acting, hydraulic return
• Chrome plated piston rod
• Fitted in standard with couplers HF 738 and safety valve on the retract side
• Cylinders with 2 transport eye hooks

Print this sheet

Double acting cylinders, hydraulic return, high tonnage – 700 bar – DL : Lifting steel cylinders 700 bar - Quiri - 2

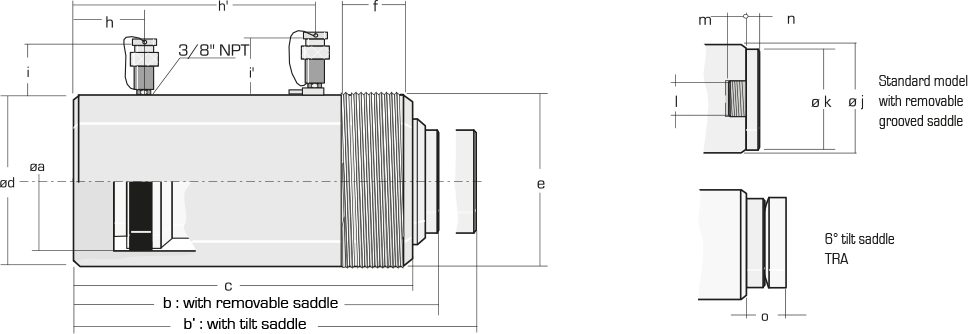

Cylinder category	Maximum force 700 bar		Stroke	Effective area	Oil volume	Reference	Dimensions (mm)												Weight
							a	b	b’	c	d	h/h’	i/i’	j	k	m	n	o

Tons	* kN		mm	cm2	cm3														kg

200	P	1983,7	150	283,52	4253	DL 20015	190	356	403	348	242	62/283	70/113	150	113	13	5	52	135
	R	747,3		106,8	1600
	P	1983,7	250	283,52	7090	DL 20025		456	503	448		62/383							173
	R	747,3		106,8	2670
300	P	3034,6	150	433,74	6505	DL 30015	235	412	478	403	304	78/321	70/113	170	130	25	5	71	210
	R	1446,6		206,75	3100
	P	3034,6	250	433,74	10845	DL 30025		512	578	503		78/421							261
	R	1446,6		206,75	5170
400	P	4005,9	150	572,5	8590	DL 40015	270	417	502	408	349	84/318	70/113	210	160	25	5	90	301
	R	1582,6		226,2	3393
	P	4005,9	240	585,35	12740	DL 40024		507	592	498		84/408							365
	R	1582,6		226,2	5430
500	P	5111,8	150	730,62	10960	DL 50015	305	439	539	429	392	90/337	70/113	240	180	25	5	105	388
	R	1946,6		278,2	4175
	P	5111,8	190	730,62	13882	DL 50019		479	579	469		90/377							419
	R	1946,6		278,2	5285
