Hollow cylinders saddles (for CSE and CDE cylinders) – 700 bar

Print this sheet

TLC saddles are standard saddles delivered on QUIRI 700 hollow cylinders.
Protect piston rod end.

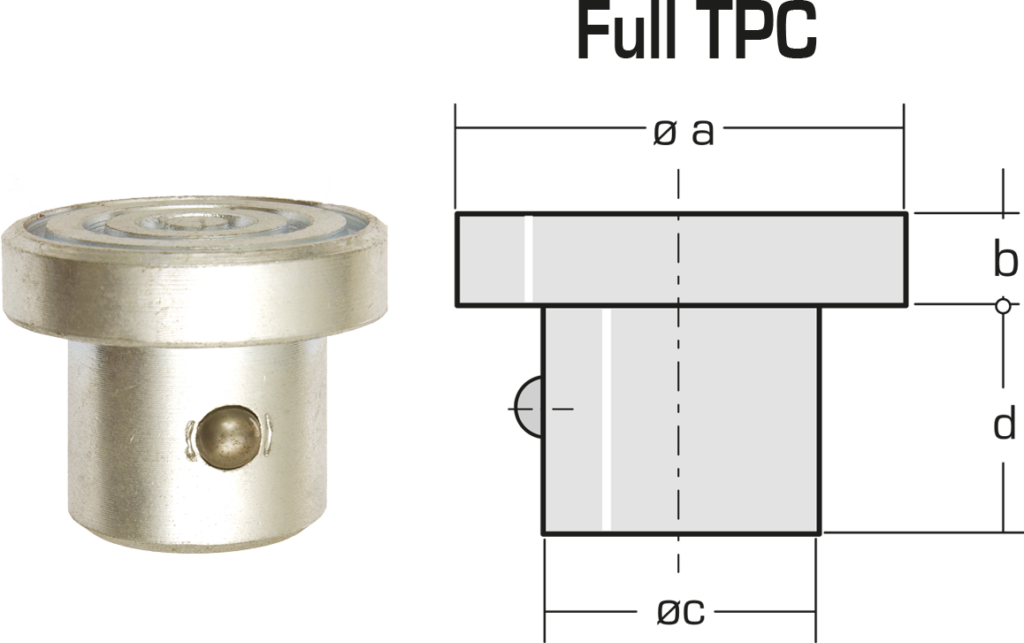

Hollow cylinders saddles (for CSE and CDE cylinders) – 700 bar : Lifting steel cylinders 700 bar - Quiri

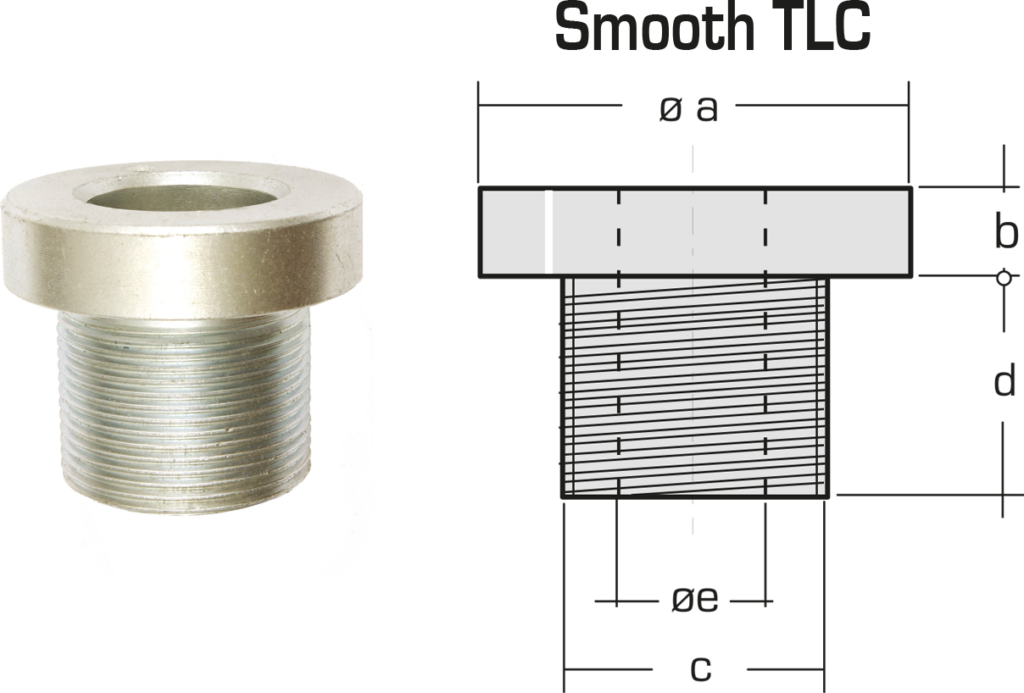

Hollow cylinders saddles (for CSE and CDE cylinders) – 700 bar : Lifting steel cylinders 700 bar - Quiri - 2

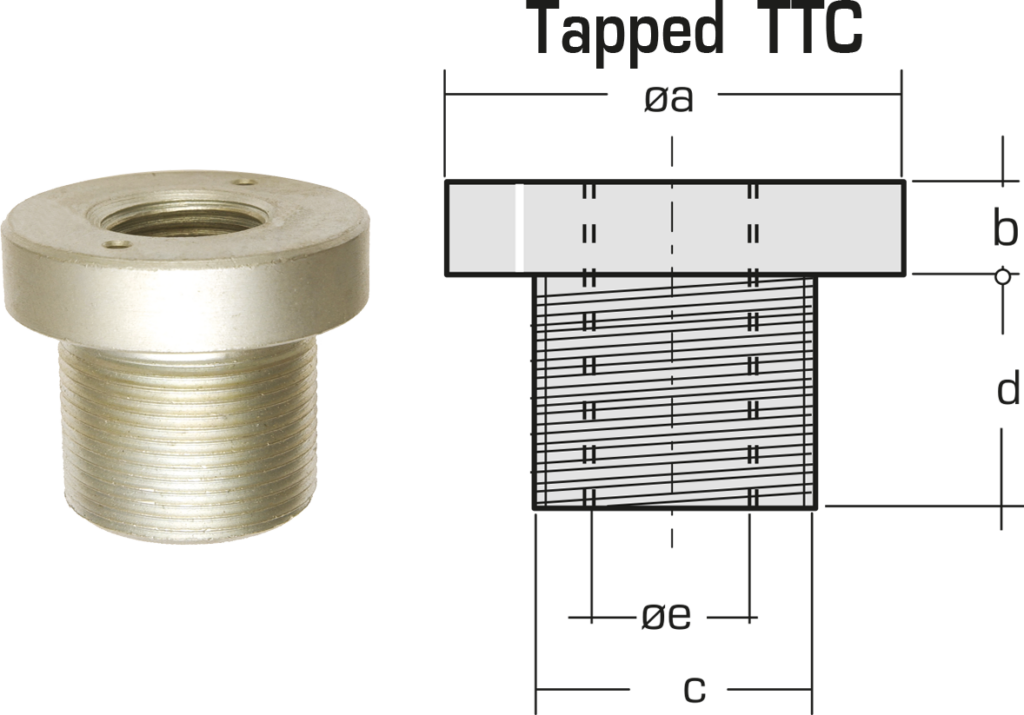

Hollow cylinders saddles (for CSE and CDE cylinders) – 700 bar : Lifting steel cylinders 700 bar - Quiri - 3

Cylinder category Tons	Reference			Dimensions (mm)					Weight Kg
Cylinder category Tons	Full	Smooth	Tapped	a	b	c	d	e	Weight Kg
12	TPC 12			36	8	27,2	20		0,15
		TLC 12				M29 x 1,5	20	19,5	0,09
			TTC 12			M29 x 1,5	20	3/4’’ 16 UNF	0,09
20	TPC 20			50	10	35,2	20		0,3
		TLC 20				M37 x 1,5	20	26,5	0,18
			TTC 20			M37 x 1,5	20	1’’ – 8 UNC	0,18
29	TPC 29			61	10	44,2	22		0,49
		TLC 29				M46 x 1,5	22	33	0,27
			TTC 29			M46 x 1,5	22	1’’ 1/4 – 7 UNC	0,27
58	TPC 58			93	12	70,2	25		1,4
		TLC 58				M72 x 1,5	25	53,5	0,78
			TTC 58			M72 x 1,5	25	1’’ 5/8 – 5 1/2 UNS	0,78
90	TPC 90			127	12	ø 102,2	30		3,12
90		TLC 90		127	12	M104 x 1,5	30	79	1,5

Compatible products

Single acting cylinders, spring return (5 to 16 T) – 700 bar – SER

Steel

Single acting cylinders, spring return (23 to 93 T) – 700 bar – SER

Steel

Hollow piston single acting cylinders, spring return – 700 bar – CSE

Steel

Hollow piston double acting cylinders, hydraulic return – 700 bar – CDE

Steel

Double acting cylinders, hydraulic return, high tonnage – 700 bar – DL

Steel

See similar accessories

TPP – Flat saddles – 700 bar

Standard saddles delivered on QUIRI 700 cylinders. Protect piston rod end.

TRP – Tilt saddles – 700 bar

Correct the effects of a non centered load.

TPA – Flat saddles – 700 bar

Standard saddles delivered on QUIRI 700 cylinders. Protect piston rod end.

TRA – Tilt saddles – 700 bar

Correct the effects of a non centered load.
