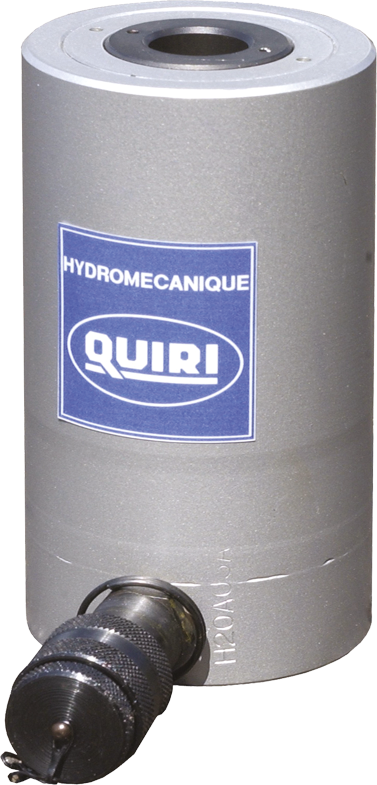

Hollow piston single acting cylinders, spring return – 700 bar – CSE

Steel

Features

Features

Single acting, spring return
Threaded piston end with hollow saddle TLC
2 base threaded mounting holes
Salt bath nitriding piston rod
Fitted in standard with HF 738 coupler
Cylinders CSE 2915, CSE 587 and CSE 5815 with carrying handles
Cylinder CSE 907 with 2 transport eye hooks

Print this sheet

Hollow piston single acting cylinders, spring return – 700 bar – CSE : Lifting steel cylinders 700 bar - Quiri - 2

Cylinder category	Maximum force 700 bar	Stroke	Effective area	Oil volume	Reference	Dimensions (mm)												Weight
Tons	kN	mm	cm2	cm3		a	b	d	M x p on ø g	h	i	j	k	l	m	n	q	kg
12	121,6	41	18,03	74	CSE 124	55	145	70	5/16 – 18UNC x 15 on ø 50,8	20	70	38,5	38	M29 x 1,5	20	8	19,5	3,8
		75		135	CSE 127		191											5
20	200,4	48	28,86	140	CSE 204	70	172	95	3/8 – 16UNC x 18 on ø 82,6	20	70	50,5	50	M37 x 1,5	20	10	26,5	8
		150		433	CSE 2015		321											14
29	297,3	63	42,51	270	CSE 296	85,72	200	110	3/8 – 16UNC x 18 on ø 92,1	20	70	62	61	M46 x 1,5	22	10	33	13
		150		638	CSE 2915		340											23
58	590	76	84,34	640	CSE 587	125	245	155	1/2 – 13UNC x 18 on ø 130,2	20	70	94	93	M72 x 1,5	25	12	53,5	26,6
		150		1266	CSE 5815		385											40
90	899,1	76	133	1010	CSE 907	165,1	272	200		38	70	128	127	M104 x 1,5	30	12	79	46
