Pull cylinders, spring return – 700 bar – SRT

Steel

Features

Features

• Single acting, spring return
• Chrome plated piston rod
• 2 clevis eyes
• Fitted in standard with HF 738 coupler
• Cylinders SRT 3015 and SRT 5015 with carrying handles

Print this sheet

Pull cylinders, spring return – 700 bar – SRT : Lifting steel cylinders 700 bar - Quiri - 2

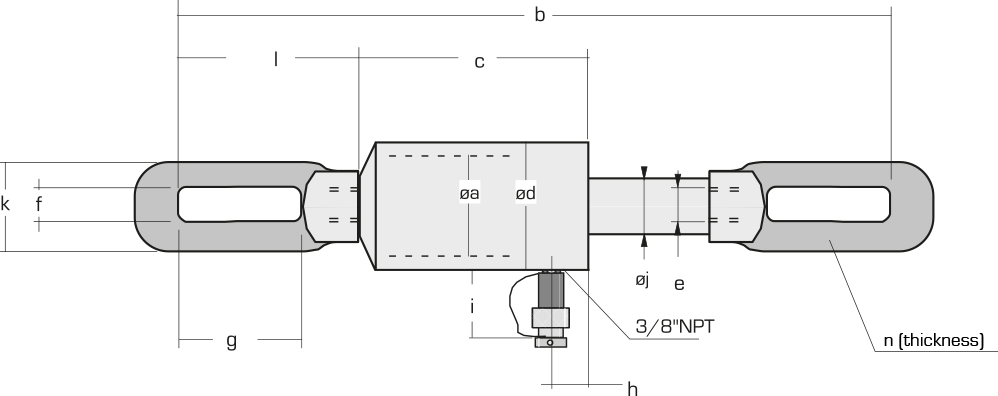

Cylinder category	Maximum force 700 bar	Stroke	Effective area	Oil volume	Reference	Dimensions (mm)													Weight
						a	b	c	d	e	f	g	h	i	j	k	l	n

Tons	kN	mm	cm2	cm3															kg
Tons	kN	mm	cm2	cm3															kg
10	100,9	140	14,42	183	SRT 1014	60	601	241	80	M26 x 2	40	65	35	70	42	70	109	15	8,7
30	338,2	150	48,34	725	SRT 3015	100	775	285	125	M42 x 2,5	50	100	40	70	62	95	168	30	22,1
50	506,9	150	72,45	1085	SRT 5015	125	920	310	155	M60 x 2,5	60	150	44	70	80	120	228	40	37
