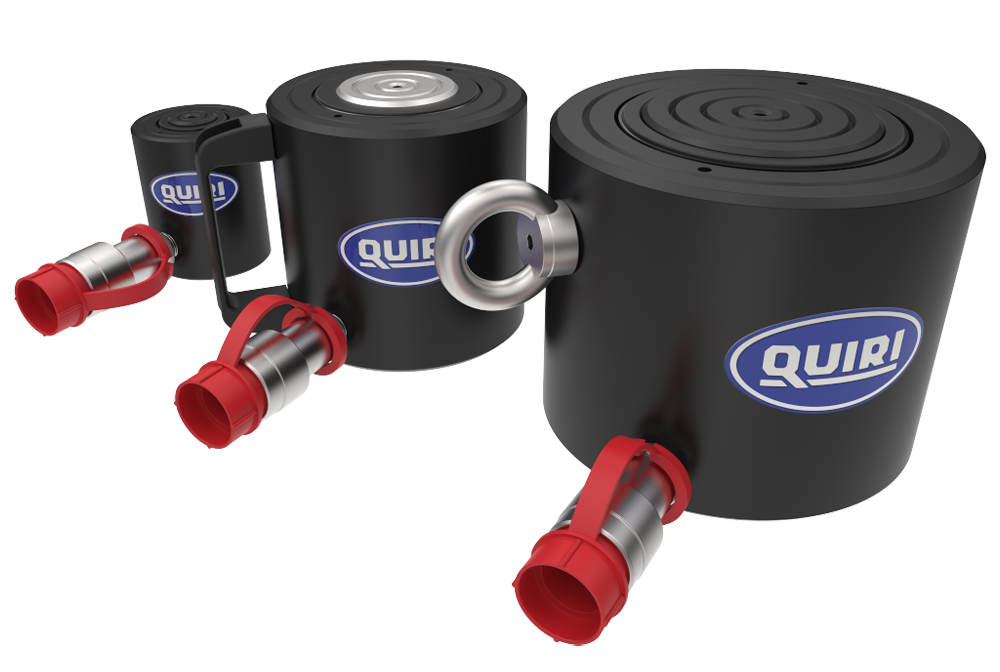

Extra flat cylinders, spring return – 700 bar – SRP

Steel

Features
Note

Features

• Single acting, spring return
• Grooved piston rod end
• Salt bath nitriding piston rod
• Fitted in standard with HF 738 coupler
(SRP5 with hose 0,5 m extension)

Note

When used, make sure that the cylinder is absolutely steady

Print this sheet

Extra flat cylinders, spring return – 700 bar – SRP : Lifting steel cylinders 700 bar - Quiri - 2

Cylinder category	Maximum force 700 bar	Stroke	Effective area	Oil volume	Reference	Dimensions (mm)											Weight
						a	b	c	d	e	g/f 2 holes	h	i	j	r	s

Tons	kN	mm	cm2	cm3													kg
Tons	kN	mm	cm2	cm3													kg
5	49,5	6,5	7,06	5	SRP 5	30	34	33	41	60	ø 5,5/28	17		26	20	22	0,75
5	49,5	15	7,06	11	SRP 5/15	30	43	42	41	60	ø 5,5/28	15,5		26	20	24	1
11	111,3	11	15,9	18	SRP 11	45	44,5	43,5	56	79	ø 6,6/37	23	70	39	28	34	1,75
23	232,2	11	33,18	37	SRP 23	65	54	53	80	98	ø 9/50	23	70	54	40	37	3,2
31	309,1	12	44,18	53	SRP 31	75	60	59	94	115	ø 9/52	23	70	57,15	47	44	4,8
54	549,5	16	78,54	125	SRP 54	100	72	71	124	147	ø 11/70	23	70	80	62	58	9,4
75	717,9	16	102,6	165	SRP 75	114,3	79	78	139	165	ø 13,5/76	20,5	70	85	69	66	11
93	928,7	16	132,73	212	SRP 93	130	88	87	160	180	ø 14/76	23	70	105	80	75	17,2
140	1385,7	16	198,06	317	SRP 140	158,8	100	99	190	215	ø 13,5/117	20	70	114,3	95	82	26
