Guide : Hydraulic block cylinder BDL

Print this guide

Quick access

Designation
Basic strokes
Available strokes
Conception

Guide : Hydraulic block cylinder BDL : Hydraulic block cylinders BDL - Quiri

Designation of BDL

Guide : Hydraulic block cylinder BDL : Hydraulic block cylinders BDL - Quiri - 2

Example of designation : BDL 25 – 50 R T
BDL block cylinder 25 mm bore, 50 mm stroke, RADIAL – feeds perpendicular to rod, tapped rod.
.

Basic strokes

Basic strokes (mm)
Fixing	BDL 16	BDL 25	BDL 32	BDL 40	BDL 50	BDL 63
Smooth	16	20	25	25	25	30
	50	50	50	50	50	63
	75	75	75	75	75	75
	100	100	100	100	100	100
Tapped	125	125	125	125	125	125
	160	160	160	160	160	160
	175	175	175	175	175	175
	200	200	200	200	200	200

Available strokes

Available strokes (mm)
Fixing	BDL 16	BDL 25	BDL 32	BDL 40	BDL 50	BDL 63
Smooth	5	5	5	5	5	5
	10	10	10	10	10	10
	16	15	15	15	15	15
	20	20	20	20	20	20
	25	25	25	25	25	25
	30	30	30	30	30	30
	35	35	35	35	35	35
	40	40	40	40	40	40
	45	45	45	45	45	45
	50	50	50	50	50	50
	55	55	55	55	55	50
	60	60	60	60	60	63
	65	65	65	65	65	65
	70	70	70	70	70	70
	75	75	75	75	75	75
	80	80	80	80	80	80
	85	85	85	85	85	85
	90	90	90	90	90	90
	95	95	95	95	95	95
	100	100	100	100	100	100
Tapped	105	105	105	105	105	105
	110	110	110	110	110	110
	115	115	115	115	115	115
	120	120	120	120	120	120
	125	125	125	125	125	125
	130	130	130	130	130	130
	135	135	135	135	135	135
	140	140	140	140	140	140
	145	145	145	145	145	145
	150	150	150	150	150	150
	155	155	155	155	155	155
	160	160	160	160	160	160
	165	165	165	165	165	165
	170	170	170	170	170	170
	175	175	175	175	175	175
	180	180	180	180	180	180
	185	185	185	185	185	185
	190	190	190	190	190	190
	195	195	195	195	195	195
	200	200	200	200	200	200

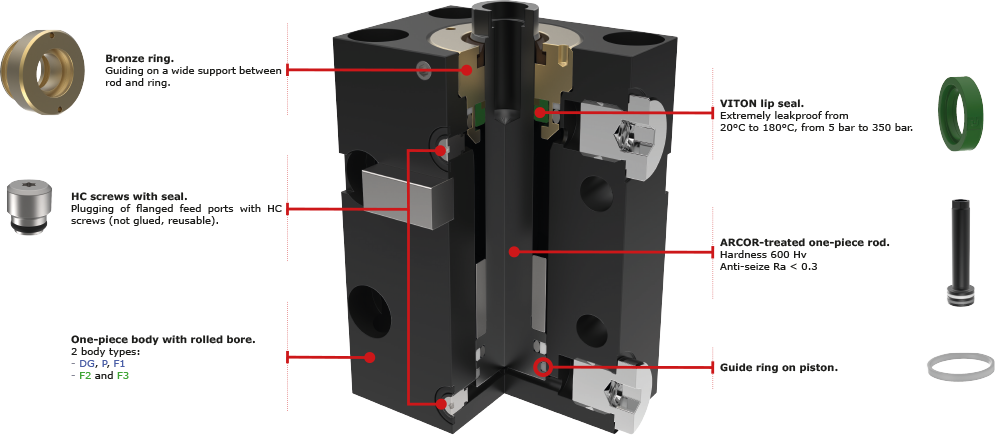

Conception

Guide : Hydraulic block cylinder BDL : Hydraulic block cylinders BDL - Quiri - 3
