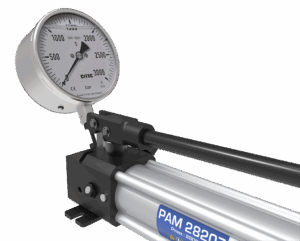

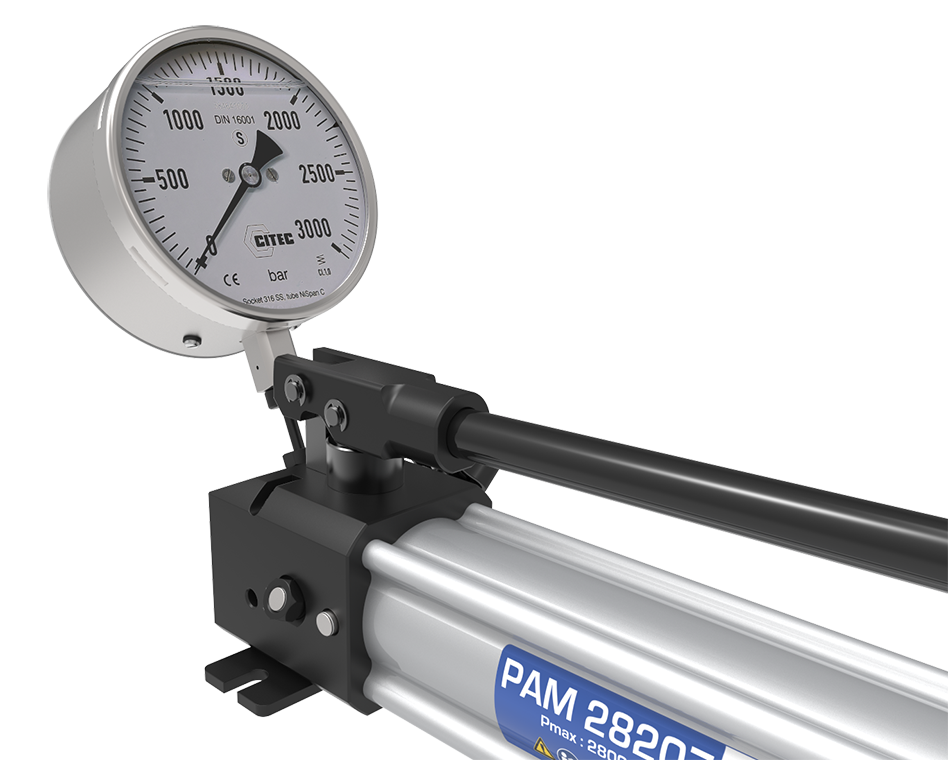

Single acting 2800 bar hand pumps, 2 speeds – PAM

For single acting cylinders

Features
Options

Features

• Two speeds
• Adjustable pressure relief valve, set at 2800 bar
• Max handle effort reduce by the use of a bypass on the approach flow
• Delivered with oil

Options

Other pressure relief valve setting : on request

Print this sheet

Single acting 2800 bar hand pumps, 2 speeds – PAM : Hydraulic hand pumps 2800 bar - Quiri - 2

Single acting 2800 bar hand pumps, 2 speeds – PAM : Hydraulic hand pumps 2800 bar - Quiri - 3

For cylinder	Pressure	Oil flow	Max pressure	Oil flow	Oil capacity		Max handle effort	Reference	Dimensions (mm)									Weight
	Pressure	Oil flow	Max pressure	Oil flow	Oil capacity				a	b	c	d	d’	e	f	g	h
	bar	cm3/pump stroke	bar	cm3/pump stroke	Totale	Usable
	BP		HP		cm3	cm3	daN											kg
single acting	20	12.9	2800	0.59	1000	700	43	PAM 28207	634	169	157	60	108	80	140	513	598	5.3
