CONNECTION WITH CONNECTOR

Print this sheet

CN 11 WITH STRAIGHT CONNECTOR

CONNECTION WITH CONNECTOR : CONNECTIONS FOR RGT GAS SPRINGS - Quiri
CONNECTION WITH CONNECTOR : CONNECTIONS FOR RGT GAS SPRINGS - Quiri - 2

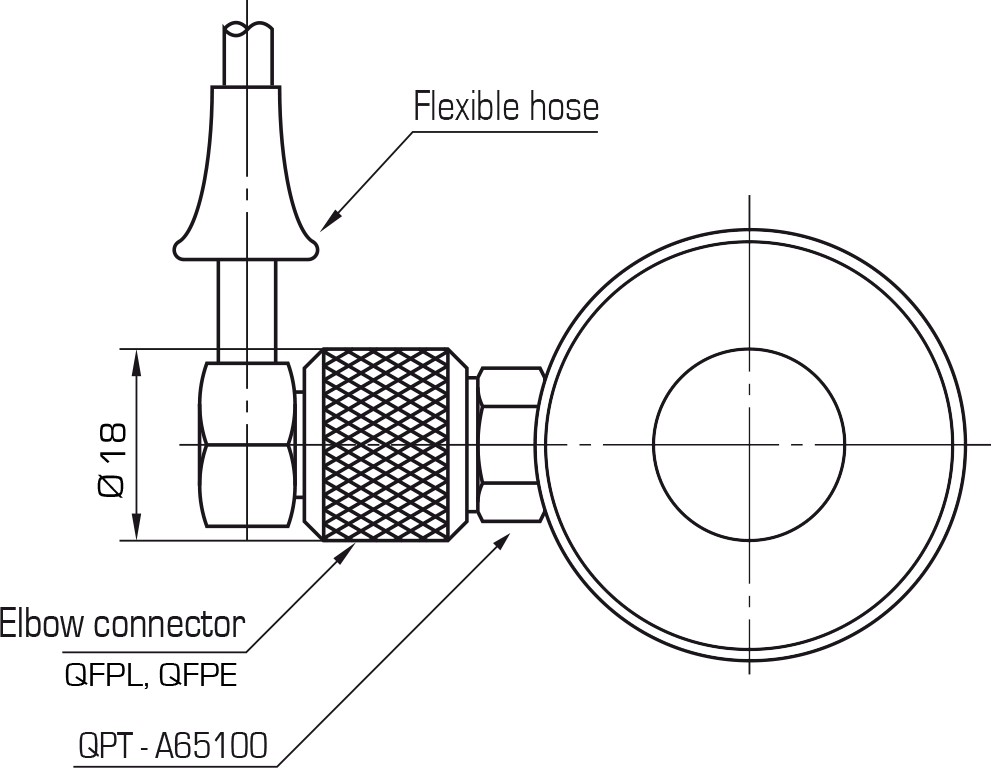

CN 11 WITH 90° ELBOW CONNECTOR

CONNECTION WITH CONNECTOR : CONNECTIONS FOR RGT GAS SPRINGS - Quiri - 3
CONNECTION WITH CONNECTOR : CONNECTIONS FOR RGT GAS SPRINGS - Quiri - 4
Type Jmin.

(mm)
RGTR 1000 128
RGTR 2400 129
RGTR 4200 152
RGTR 6600 164
RGTR 9500 179
