Coupling screw for BDS

Print this sheet
Coupling screw for BDS : Hydraulic block cylinders BDS - Quiri

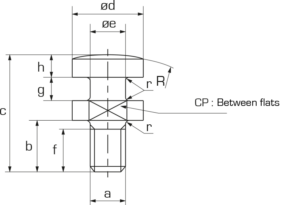

TYPE Units VS25.30 VS32.20 VS40.26 VS50.32 VS63.42 VS80.52 VS100.64 VS125.80
a (mm) M8 x 125 M8 x 125 M10 x 150 M16 x 150 M20 x 150 M27 x 200 M33 x 200 M42 x 200
b (mm) 18 18 20 28 39 40 50 63
c (mm) 48 48 56 70 90 100 122 147
d (mm) 32 32 40 50 62 79 95 122
e (mm) 20 20 26 32 42 52 64 80
f (mm) 14 14 16 22 32 42 52 62
g (mm) 10 10 12 14 17 20 24 28
h (mm) 10 10 12 14 17 20 24 28
r (mm) 1 1 1,5 1,5 2 2 2 2
CP (mm) 27 27 30 42 52 68 82 105
