Double acting hydraulic cylinders HVB Guide

Print this guide

Quick access to sections

Designation

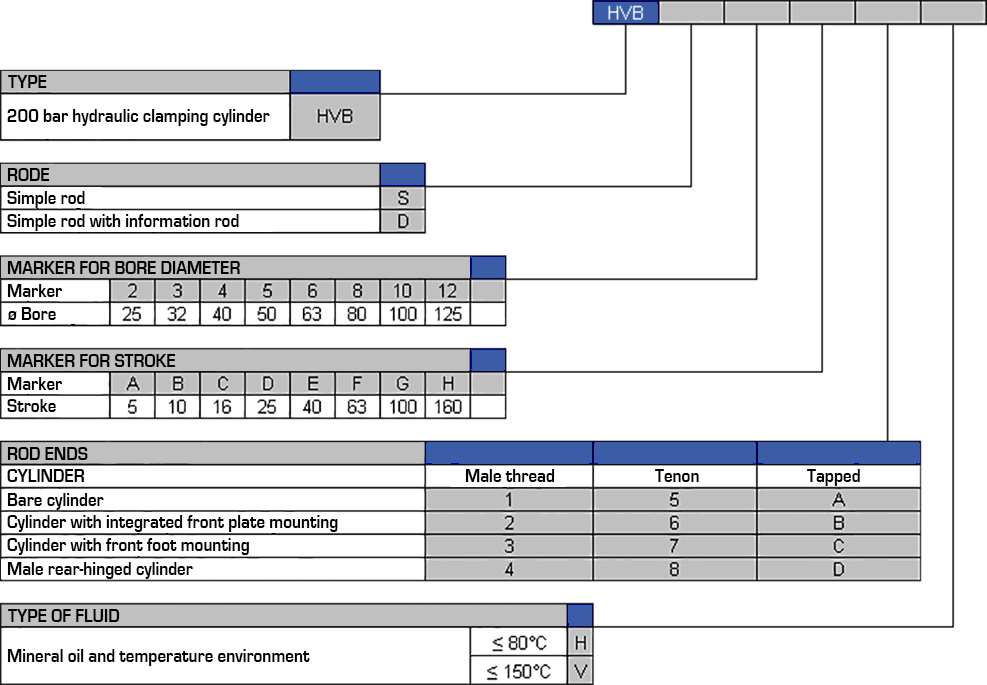

HVB designation

Double acting hydraulic cylinders HVB Guide : Double acting hydraulic cylinders HVB - Quiri

Designation example: HVB S 06 F 2 V
Hydraulic clamping cylinder 200 bar, single rod, bore 63, stroke 63, integrated front plate mounting, male threaded rod end. Mineral oil and temperature environment ≤150°C.
