Coupling screw for S48

Print this sheet
Coupling screw for S48 : Hydraulic block cylinders S48 - Quiri

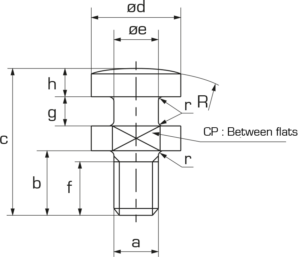

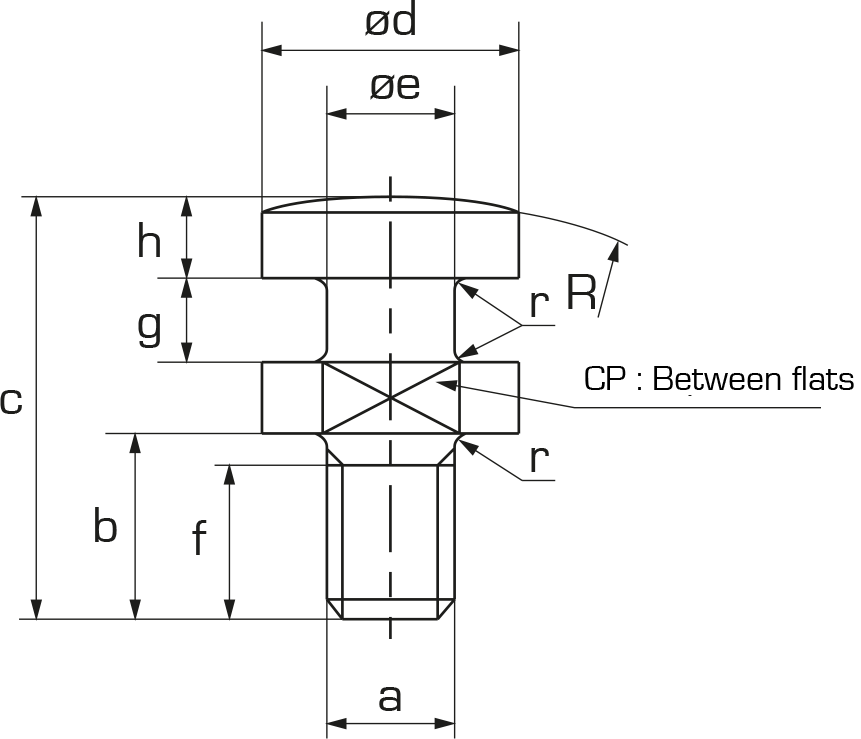

TYPE Units S48 40 S48 50 S48 63
VS40.26 VS50.32 VS63.42
a (mm) M10 M16 x 1.5 M20 x 1.5
b (mm) 20 28 39
c (mm) 56 70 90
d (mm) 40 50 62
e (mm) 26 32 42
f (mm) 16 22 32
g (mm) 12 14 17
h (mm) 12 14 17
r (mm) 1.5 1.5 2
CP (mm) 30 42 52
