Spring clamp RS

Thrust or traction
Max. force: 26 to 130 kN

Characteristics

• clamping by lock washers
• release by application of pressure
• used both in traction and in thrust
• threaded body
• fastening tap on the head

Design

• steel body with anti-corrosion treatment
• treated steel rod

Options

• special models on request

Print this sheet

Spring clamp RS : Linear cylinders - Quiri - 2

Part numbers of packs of nitrile seals for RS: 11* ***/900
Example for RS 26 clamp, part no.: 111 130/900

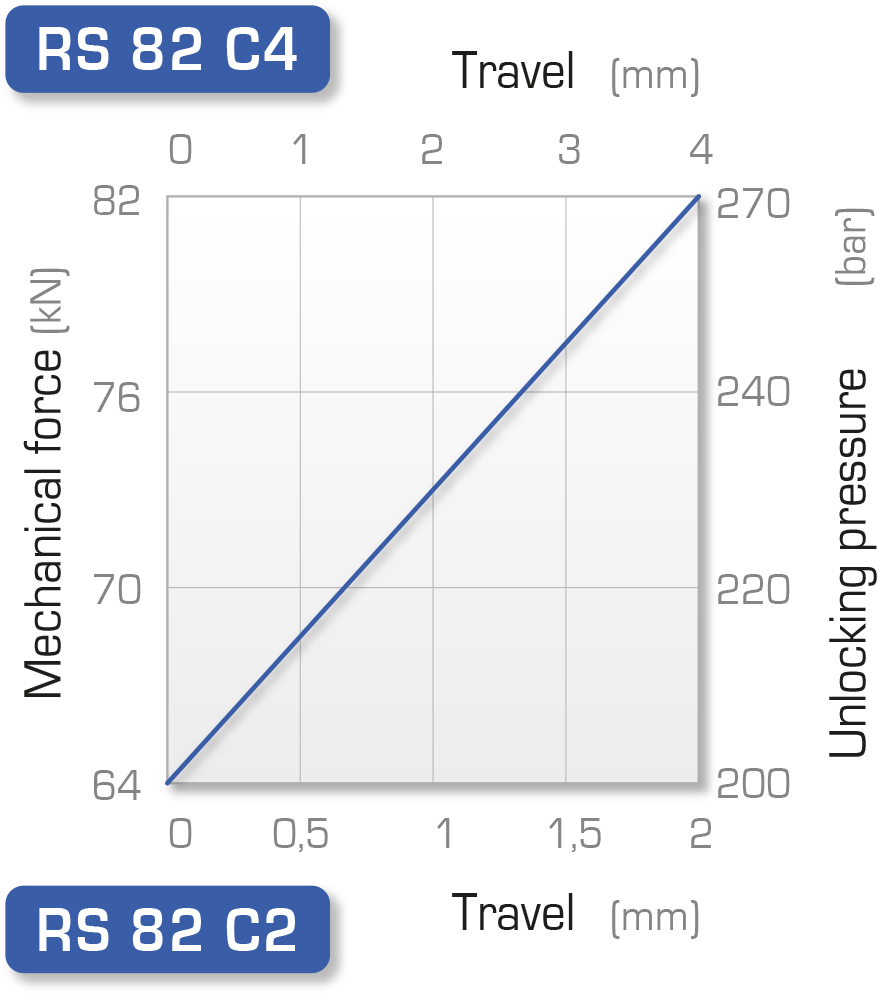

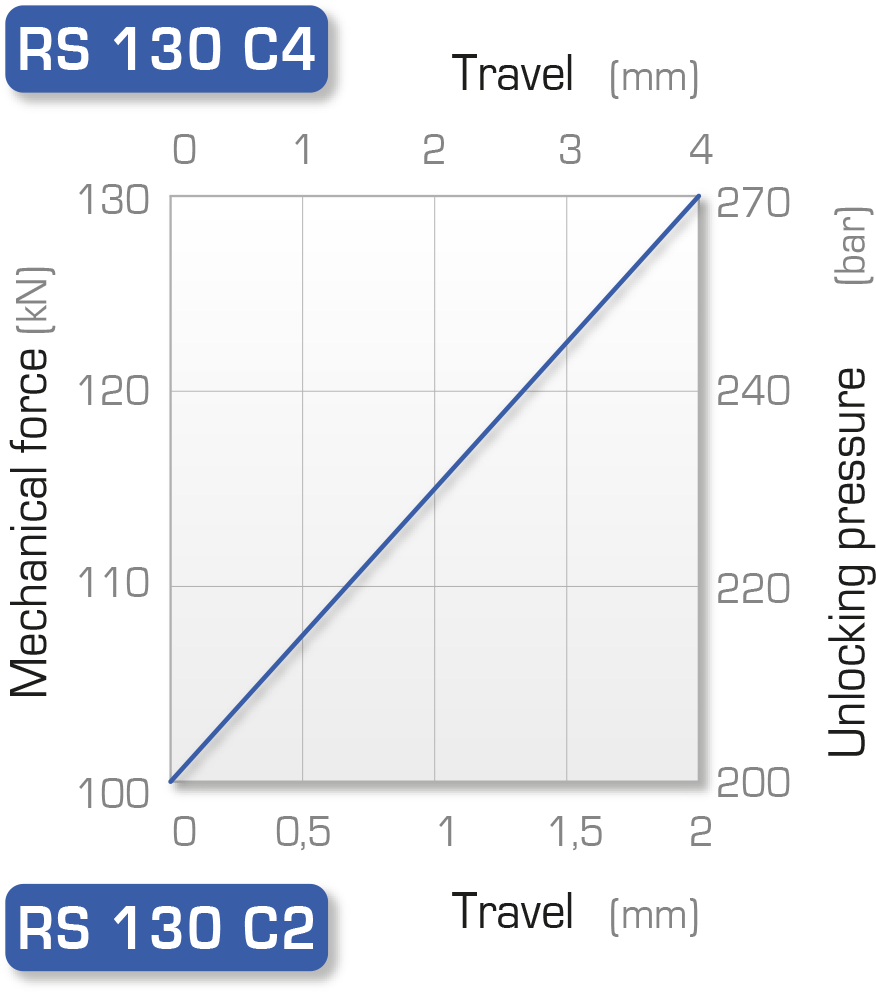

Maximum pressure: 350 bar (internal mechanical stop)

Max. force	Travel	Type	Reference
Max. force	Travel	Type	Reference	øD	ød1	ød2	e	G	g	g1 (4x at 90°)	L	L1	L2	øm	n
kN	mm			mm	mm	mm	mm				mm	mm	mm	mm	mm
26	2	RS 26 C2	111 130/000	75	20	18	13	M52 x 1.5	M12 lg. 20	M6 lg. 15	104	98	73	56	5	3D
26	4	RS 26 C4	111 130/100	75	20	18	13	M52 x 1.5	M12 lg. 20	M6 lg. 15	168	162	137	56	5	3D
38	2	RS 38 C2	111 131/000	90	30	25	14	M75 x 1.5	M16 lg. 25	M10 lg .20	111	105	80	70	5	3D
38	4	RS 38 C4	111 131/100	90	30	25	14	M75 x 1.5	M16 lg. 25	M10 lg .20	170	164	139	70	5	3D
82	2	RS 82 C2	112 103/000	105	30	30	18	M85 x 2	M 16 lg. 30	M12 lg. 25	145	139	109	80	5	3D
82	4	RS 82 C4	112 103/100	105	30	30	18	M85 x 2	M 16 lg. 30	M12 lg. 25	230	224	194	80	5	3D
130	2	RS 130 C2	112 104/000	130	50	40	23	M115 x 2	M24 lg. 30	M14 lg. 25	163	154	119	106	8	3D
130	4	RS 130 C4	112 104/100	130	50	40	23	M115 x 2	M24 lg. 30	M14 lg. 25	249	240	205	106	8	3D
