Single-acting hollow rod clamp PCS

Single-acting - Spring return
Force at 350 bar: 13 to 131 kN

Single-acting hollow rod clamp PCS : Linear cylinders - Quiri

Characteristics
Design

Characteristics

• thrust and traction
• fixing taps in the base (standard)
• rod with a Heli-Coil ring, suffix HC

Design

• steel body with anti-corrosion treatment
• treated steel rod
• Passage for standardised rod quality 8.8

Print this sheet

Single-acting hollow rod clamp PCS : Linear cylinders - Quiri - 2

Part numbers of packs of spare seals for PCS clamps: 171 0**/900
Example: The part number for the PCS clamp 20 is: 171 035/900

Force at 350 bar	Travel	Thrust cross section	Rod øD	Rod ød	Type	Reference

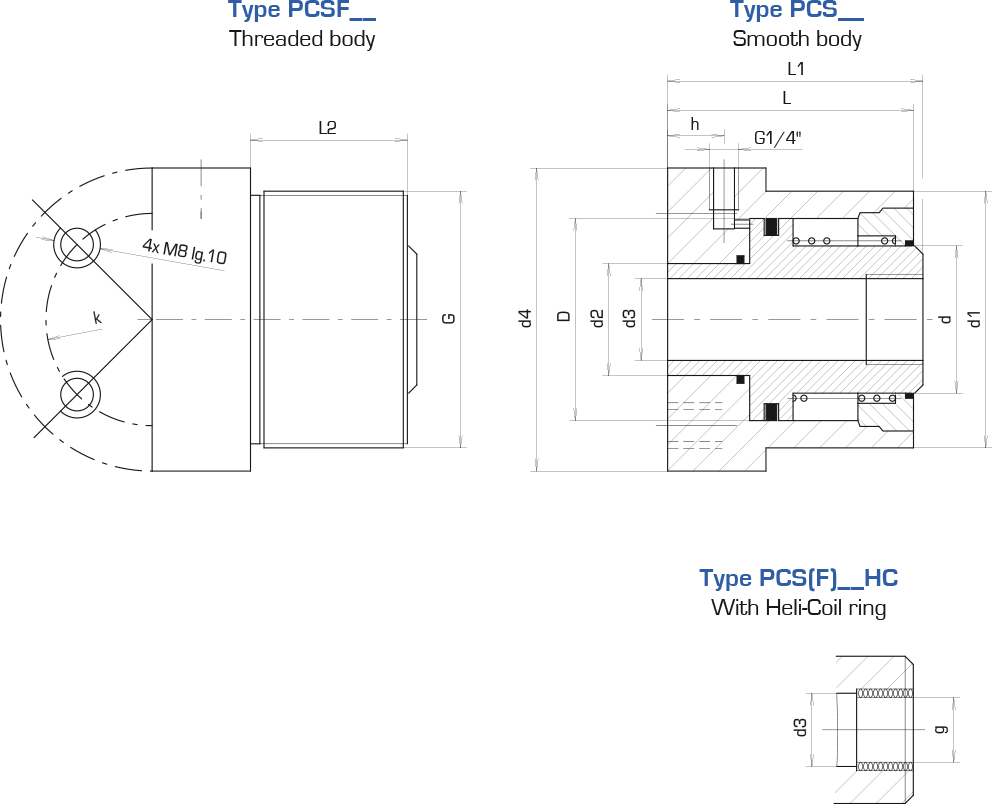

Force at 350 bar	Travel	Thrust cross section	Rod øD	Rod ød	Type	Reference	ød1	ød2	ød3	ød4	g HC	G	k	L	L1	L2	h
kN	mm	cm²	mm	mm			mm	mm	mm	mm			mm	mm	mm	mm	mm
13	10	3.77	25	16	PCS 20	171 035/000	40	12	8.2	50	M8	M40 x 1.5	35	59	60	36	12	3D
					PCS 20 HC	171 035/200
					PCSF 20	171 035/100
					PCSF 20 HC	171 035/300
20	10	6.03	32	20	PCS 30	171 036/000	45	16	10.2	55	M10	M45 x 1.5	40	64	65	41	12	3D
					PCS 30 HC	171 036/200
					PCSF 30	171 036/100
					PCSF 30 HC	171 036/300
32	12	9.42	40	25	PCS 50	171 037/000	55	20	12.2	65	M12	M55 x 1.5	45	71	72	45	15	3D
					PCS 50 HC	171 037/200
					PCSF 50	171 037/100
					PCSF 50 HC	171 037/300
51	12	14.72	50	32	PCS 80	171 038/000	65	25	16.2	70	M16	M65 x 1.5	50	77	78	50	15	3D
					PCS 80 HC	171 038/200
					PCSF 80	171 038/100
					PCSF 80 HC	171 038/300
80	16	23.12	63	40	PCS 120	171 039/000	80	32	20.2	80	M20	M80 x 2	60	60	96	60	19	3D
					PCS 120 HC	171 039/200
					PCSF 120	171 039/100
					PCSF 120 HC	171 039/300
131	16	37.7	80	50	PCS 200	171 040/000	100	40	28.2	100	M27	M100 x 2	75	65	110	65	21	3D
					PCS 200 HC	171 040/200
					PCSF 200	171 040/100
					PCSF 200 HC	171 040/300

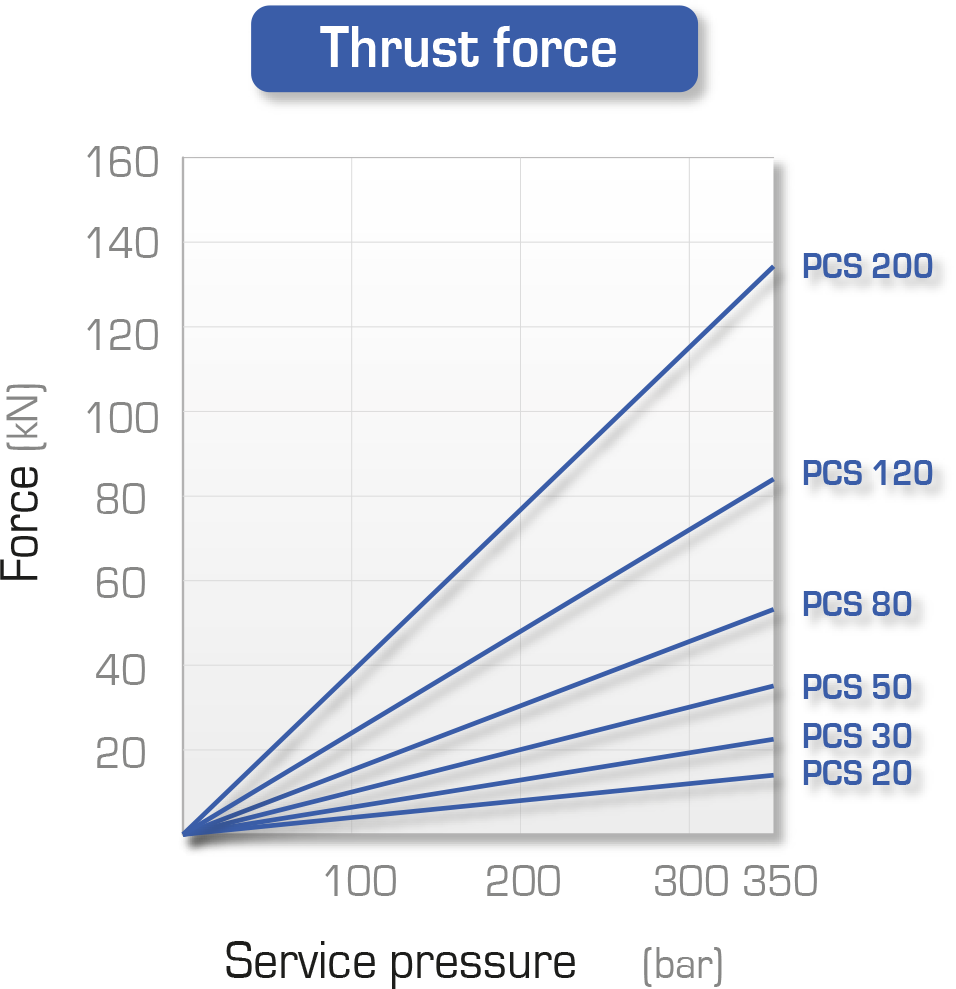

Product charts
