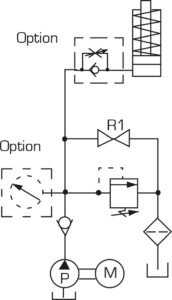

Motor in function only during operation
Cylinder advance: Start motor. Close R1
Cylinder hold: Stop motor
Cylinder retract: Open R1
Options :
• Braking valve
• Pressure gauge ø 63 ( ø 100 on request)

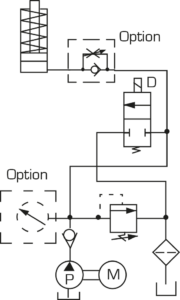

Cylinder advance: Start motor
Cylinder hold: Stop motor
Cylinder retract: Activate D
Options :
• Braking valve
• Pressure gauge ø 63 (ø 100 on request)

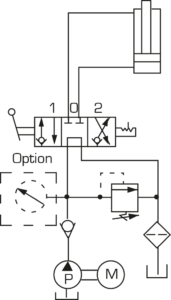

Motor always in function
Cylinder advance: Valve in position 1
Cylinder hold: Valve in position 0
Cylinder retract: Valve in position 2
Options :
• Braking valve
• Pressure gauge ø 63 ( ø 100 on request)

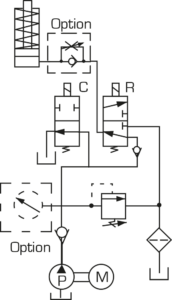

Cylinder advance: Activate C
Cylinder hold: C and R off
Cylinder retract: Activate R
Options :
• Braking valve
• Pressure gauge ø 63 ( ø 100 on request)

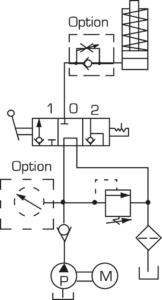

Motor always in function
Cylinder advance: Valve in position 1
Cylinder hold: Valve in position 0
Cylinder retract: Valve in position 2
Option :
• Pressure gauge ø 63 ( ø 100 on request)

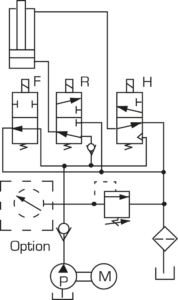

Cylinder advance: Activate F
Cylinder hold: F, R and H off
Cylinder retract: Activate F, R and H
Option :
• Pressure gauge ø 63 ( ø 100 on request)

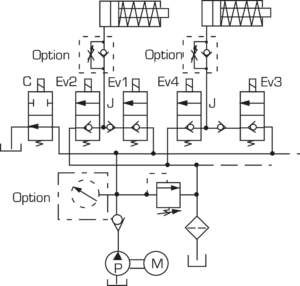

Motor always in function
Cylinder advance: Activate C, Ev1 or Ev3
Cylinder hold: C and J off
Cylinder retract: Activate Ev2 or Ev4
Options :
• Braking valve
• Pressure gauge ø 63 ( ø 100 on request)

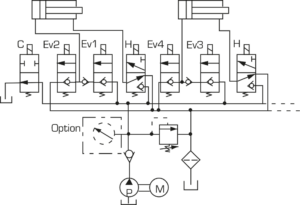

Cylinder advance: Activate C, Ev2 or Ev4
Cylinder hold: C, J and H off
Cylinder retract: Activate C, H and Ev2 or Ev5
Option :
• Pressure gauge ø 63 ( ø 100 on request)
