Bench and workshop presses

• Single acting cylinder, spring return (except 100 T press: double acting cylinder)
• Horizontally adjustable cylinder on PRD models
• Height adjustable work table
• Mechanical work table winch (depending on model: see chart below)
• Frame incorporated pressure gauge
• Scale in kg/cm2 and in tons
• Pressure relief valve to prevent from overload
• Manual extension screw (except 100T press)
• Fixing holes
• In compliance with European directive 2006/42/CE

• These presses also exist with air hydraulic pump (see Air hydraulic or electric powered presses)
• Presses with electric pumps: on request

Print this sheet
Bench and workshop presses : Hydraulic presses - Quiri - 2
Bench and workshop presses : Hydraulic presses - Quiri - 3

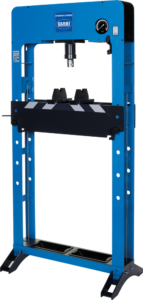

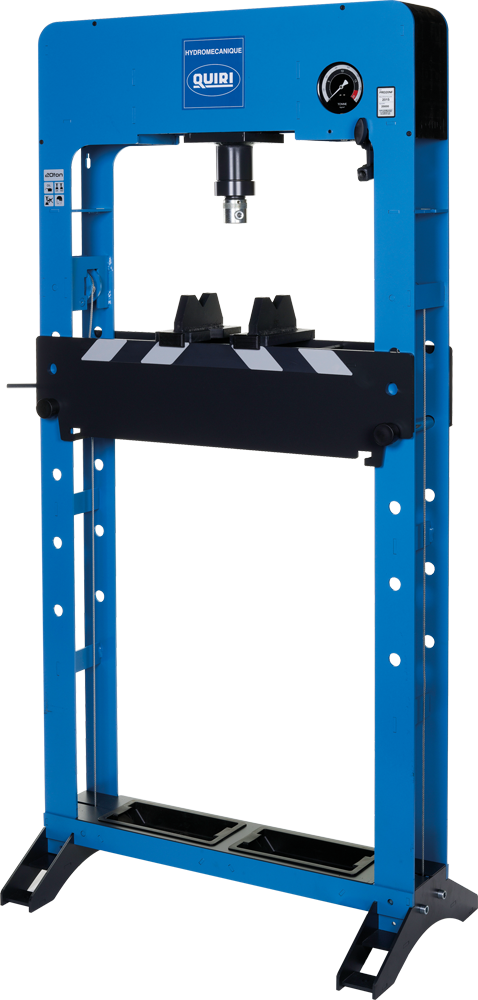

PRD 30

Bench and workshop presses : Hydraulic presses - Quiri - 4

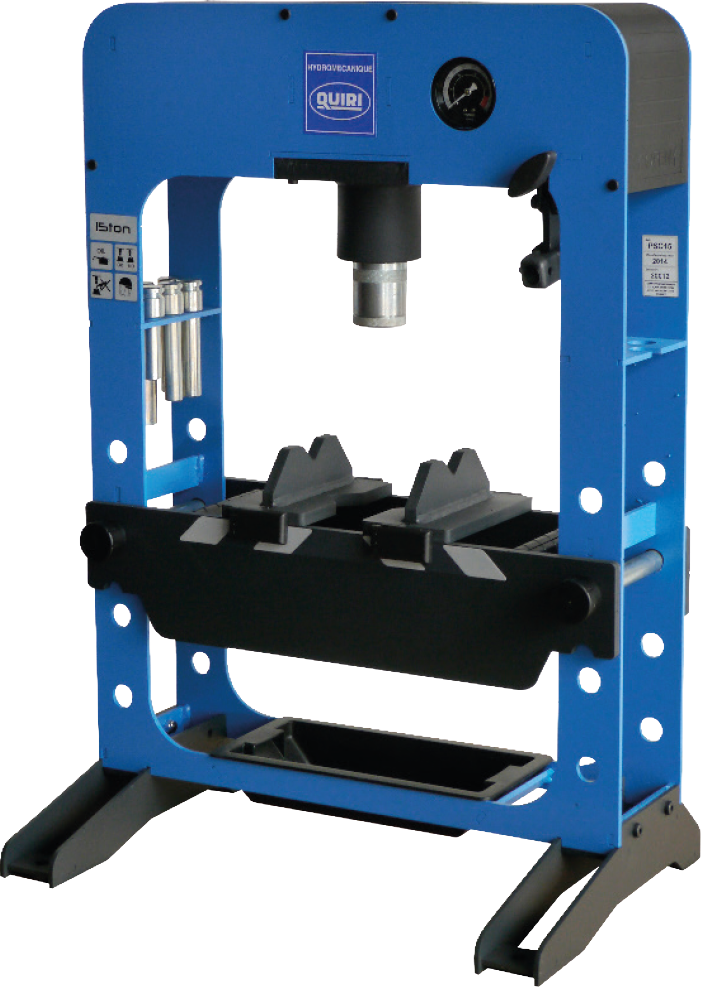

PRS 15

Capacity





(Tons)

Type Cylinder Hand pump Winch Reference Dimensions (mm) Weight







(kg)

R1 : hydraulic stroke

(mm)

R2 : extension

screw

(mm)

Bore diameter



(mm)

Oil flow

(cm3/pump stroke)

A B C D E M G1 G2
mini maxi
LP HP
15 Bench 95 75 60 2,3 PRS 15 550 350 800 132 430 45 338 48
30 Workshop 120 75 75 7,6 2,3 PRC 30 670 488 1850 132 530 17 854 112
50 Workshop 120 75 97 7,6 2,3 * PRD 50 890 490 1900 150 720 189 84 770 191
100 Workshop 250 130 19 2,5 * K-100 1200 715 2050 260 975 115 915 620

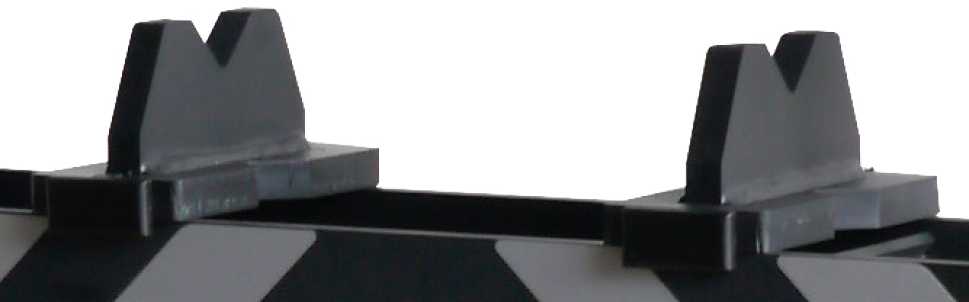

Set of two «V-blocks»

Bench and workshop presses : Hydraulic presses - Quiri - 5

Included in each press

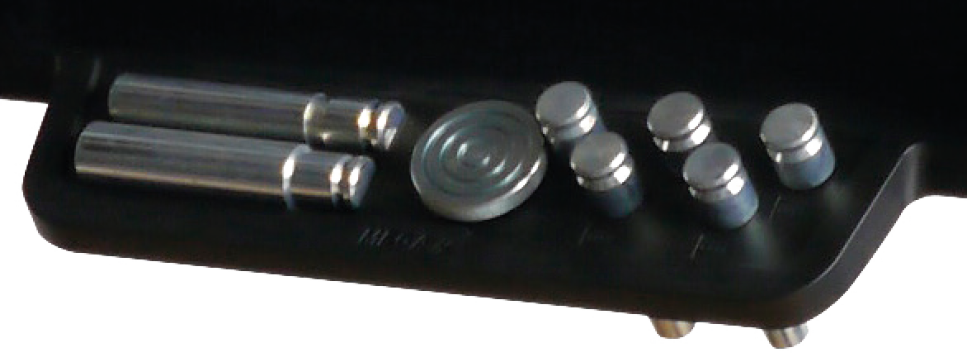

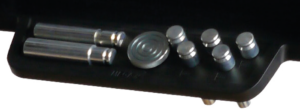

Option : Set of 7 punches

Bench and workshop presses : Hydraulic presses - Quiri - 6

[Diameters : 12-16-18-20-22-25-30]
For presses until 50 T included
Reference : MA-7
