Digital pressure gauge and pressure switches
Digital pressure gauge – MN700
Pressure scale: 0 – 700 bar
Accuracy: ± 0,1% of full scale
Min/Max function
Supply 3 V battery, type CR 2430
Diameter x Height x Depth 59 x 95 x 32 mm
Pressure Connection G1/4’’ (rotating)
Calibration certificate
Specific scales in Force
Protective rubber covering: ref A69297
Carrying bag: ref A69298
Pressure switches
A pressure switch controls a hydraulic system and gives an electrical signal when the pressure reaches a set level

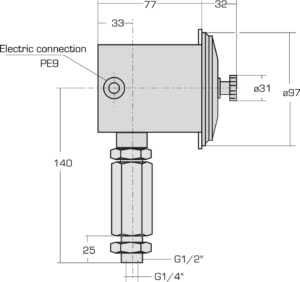

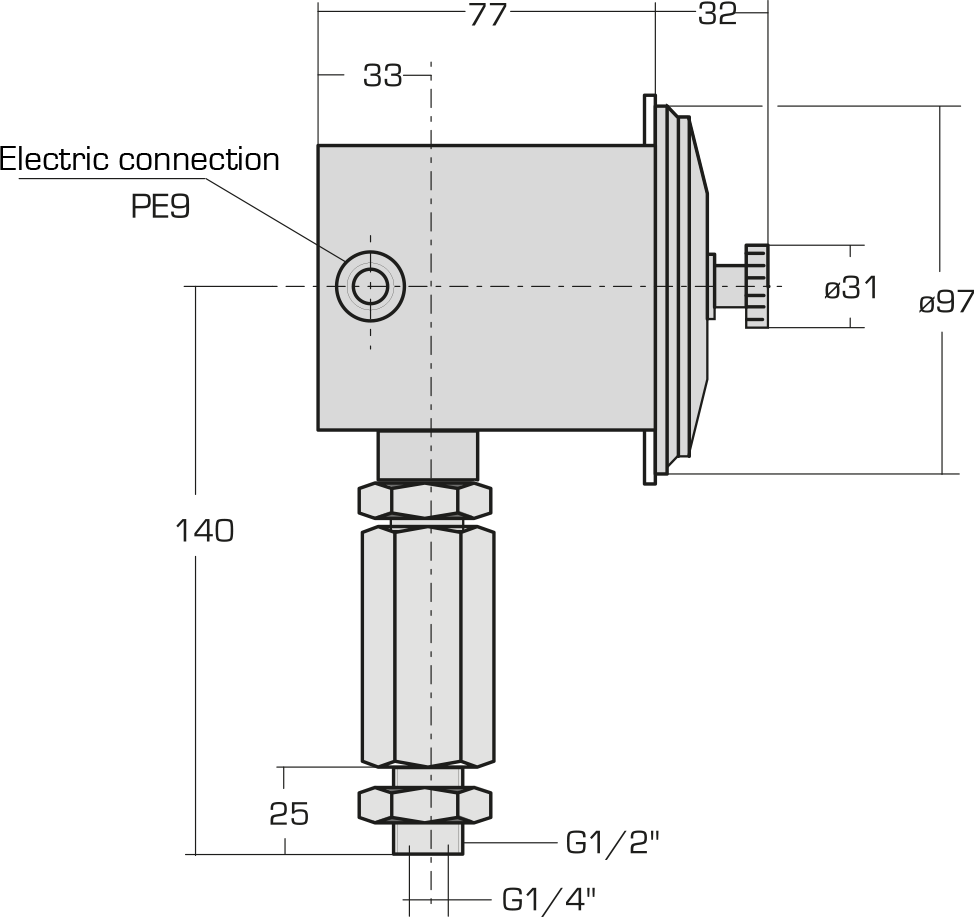

DG2H et DG24H

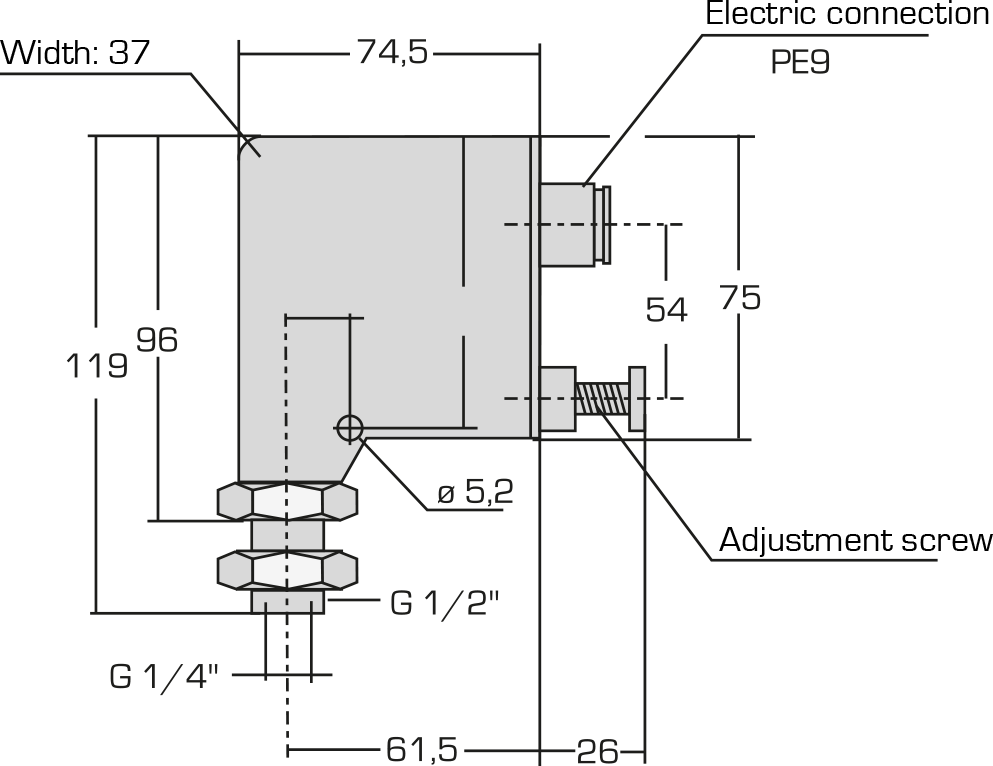

DG1RF
| Maximum
pressure bar |
Adjustable pressure range
bar |
Reference | Hysteresis
(depends on the adjustment)
|
|
| 600 | 100 – 500 | DG 2H | ~12 % at 500 bar | |
| 800 | 400 – 800 | DG 24H | ~12 % at 800 bar | |
| 600 | 20 – 600 | DG 1RF | ~12 % at 600 bar |
Symbol:
