Hydraulic couplers 500, 1000 and 1500 bar

Quick connecting coupler, poppet valving.
Fitted in standard with plastic dust caps and plugs.

FOR YOUR SAFETY, NEVER PUT UNDER PRESSURE DISCONNECTED COUPLERS

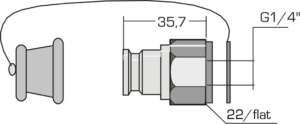

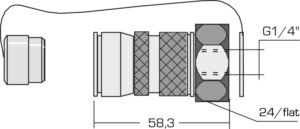

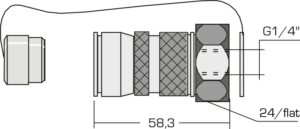

Quick connecting couplers

Note : RM, RF 518 and RF 518 S couplers can be loaded until 500 bar disconnected.

* RF 518S couplers with a hose breaking valve. In case of broken hose, this security system prevents cylinders from dropping down.
To avoid dangerous overpressure, these security couplers should not be used:
– on return side of double acting cylinder
– when using several single acting cylinders on the same system

** Mark on standard couplers (RF 518 without security system)

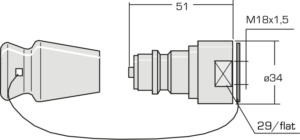

Quick connecting couplers, fitted with safety ring for the locking sleeve to prevent from accidental disconnection

Note : Never put PM 115 coupler under pressure while disconnected

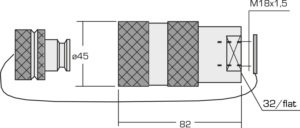

Quick connecting couplers – Fitted with safety ring for the locking sleeve to prevent from accidental disconnection

Note : Never put PM 116 coupler under pressure while disconnected
