Progressive manual operated seated valves – 600 bar
• Manual operated valves (leakage free)
• 3/3-way for use with single acting cylinders
• 4/3-way for use with double acting cylinders
• Maximum flow 40 l/min
• Maximum working pressure 600 bar
• Oil ports M18x1,5
• Lever operated (3 positions), detent positioned or centre spring return
These manual operated valves can be used individually or connected in parallel.
(see heavy lifting hydraulic pump)
| Single acting valves M3/3 | |
| Reference | |
 |
313031/000 |
 |
313040/000 |
 |
313035/000 |
 |
313036/000 |

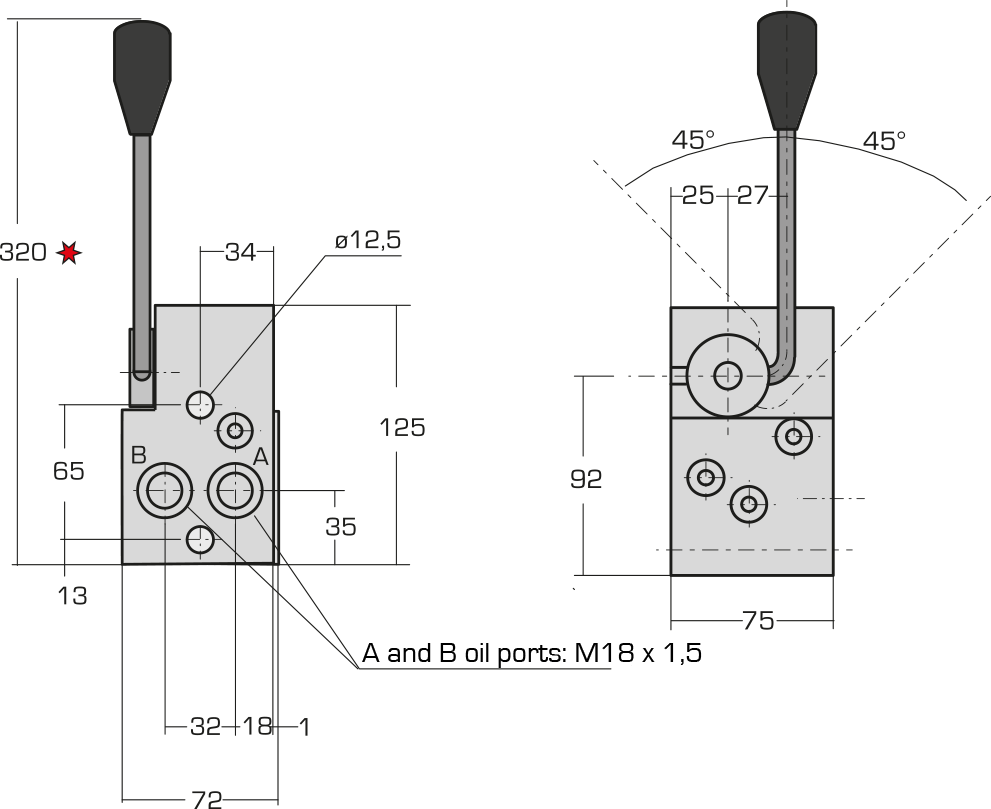

* Height 280 for valves 313040/000 and 315131/000
| Double acting valves M4/3 | |
| Reference | |
 |
315031/000 |
 |
315131/000 |
 |
315035/000 |
 |
315135/000 |
 |
315036/000 |
 |
315037/000 |
