Orientating male fitting SMO

For Ø8 and Ø12 steel pipe - ISO 8434-1 - S series - PN630

Print this sheet
Orientating male fitting SMO : Valves & fitting - Quiri

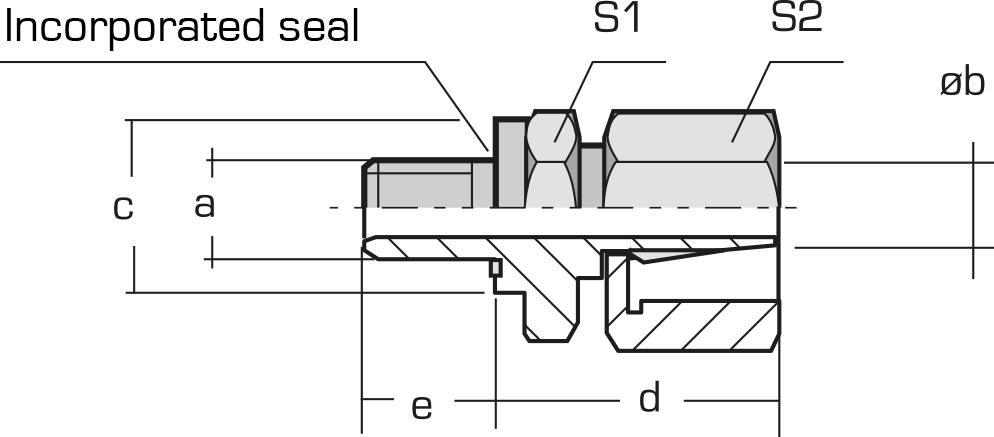

a b Reference Dimensions (mm)
c d e S1 S2
G 1/4’’ 8 A32081 19 29,5 12 19 19
G 1/4’’ 12 A33354 19 30 12 19 24
G 3/8’’ 12 A32083 22 34 12 22 24
M18x1,5 12 A32082 24 34 12 24 24
3/8 NPT 12 A32419 – 37 – 19 24
Connected to USM, EE, TE, CE …
Orientating male fitting SMO : Valves & fitting - Quiri - 2

NOTE : fittings delivered without nut and without ring
