Valve RD11 / RD31 – 500 bar

Print this sheet
Valve RD11 / RD31 – 500 bar : Valves & fitting - Quiri

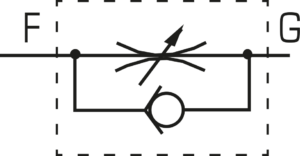

Symbol

Valve RD11 / RD31 – 500 bar : Valves & fitting - Quiri - 2

Description

Braking valve
Free flow in one way, adjustable flow in the other way RD11 : G1/4’’ oil ports, maximum oil flow 12l/min
RD31 : G1/2’’ oil ports, maximum oil flow 60l/min

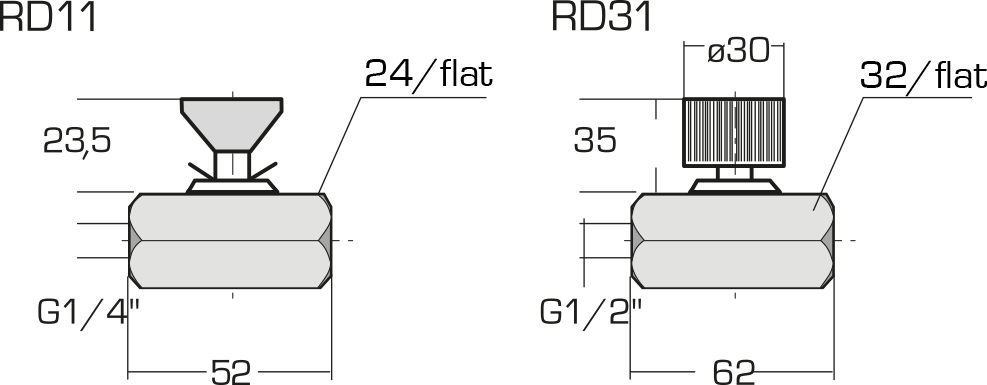

Dimensions

Valve RD11 / RD31 – 500 bar : Valves & fitting - Quiri - 3
