Male – male adaptors

Print this sheet
Male – male adaptors : Valves & fitting - Quiri
Working pressure

bar

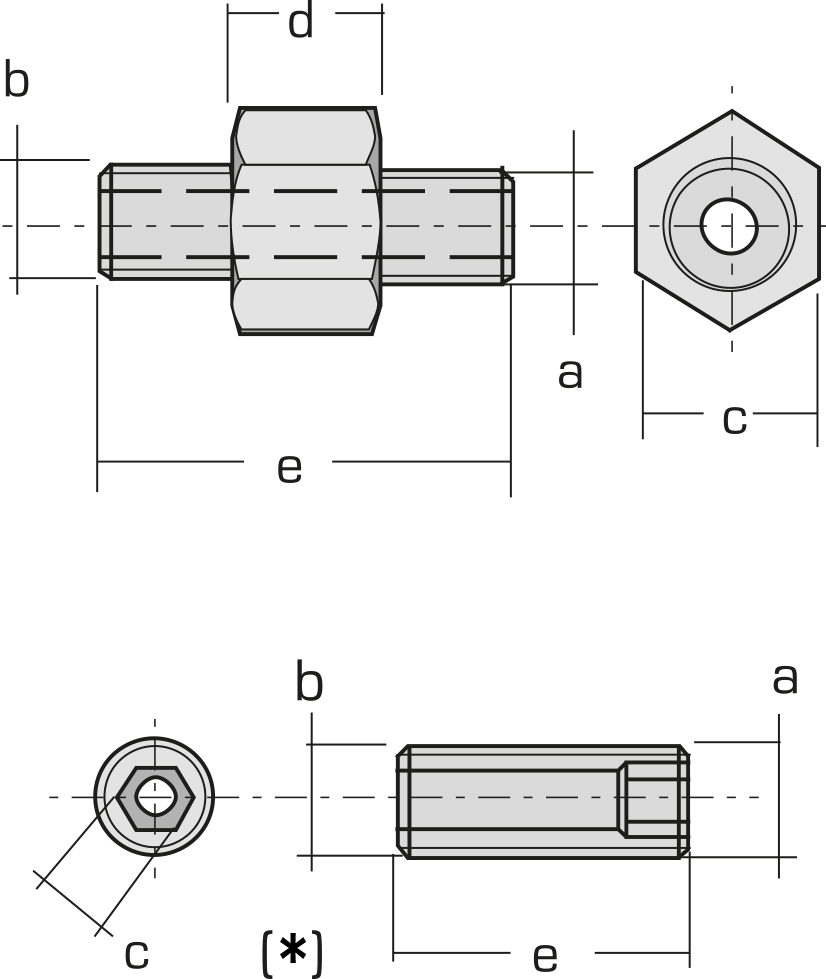

 Reference Dimensions (mm)
a b c d e
500 A31006 M18x1,5 M18x1,5 24 12 36
A31034 G1/4’’ M18x1,5 24 10 34
A31039 M18x1,5 3/8’’NPT 24 10 40
833207000 G1/4’’ G1/4’’ 21 10 32
A31030 M18x1,5 G3/8’’ 24 12 36
700 A31038 3/8’’NPT 3/8’’NPT 19 5 37
A31040 G1/4’’ 3/8’’ NPT 24 10 40
833246000 G1/4’’ G3/8’’ 24 12 36
A31095 G1/4’’ 1/4’’NPT 24 11 40
833516000 G3/8’’ 3/8’’NPT 24 10 40
1000 A31048 (*) G1/4’’ G1/4’’ 5 24
