20 TON TEST BENCHES

Print this sheet

• QTB-D (20 tons) – 220V-50Hz power supply – with DIGITAL GAUGE – (853027/100)
• QTB-D (20 tons) – 110V-60Hz power supply – with DIGITAL GAUGE – (853027/200)

20 TON TEST BENCHES : Test benches - Quiri

Control:

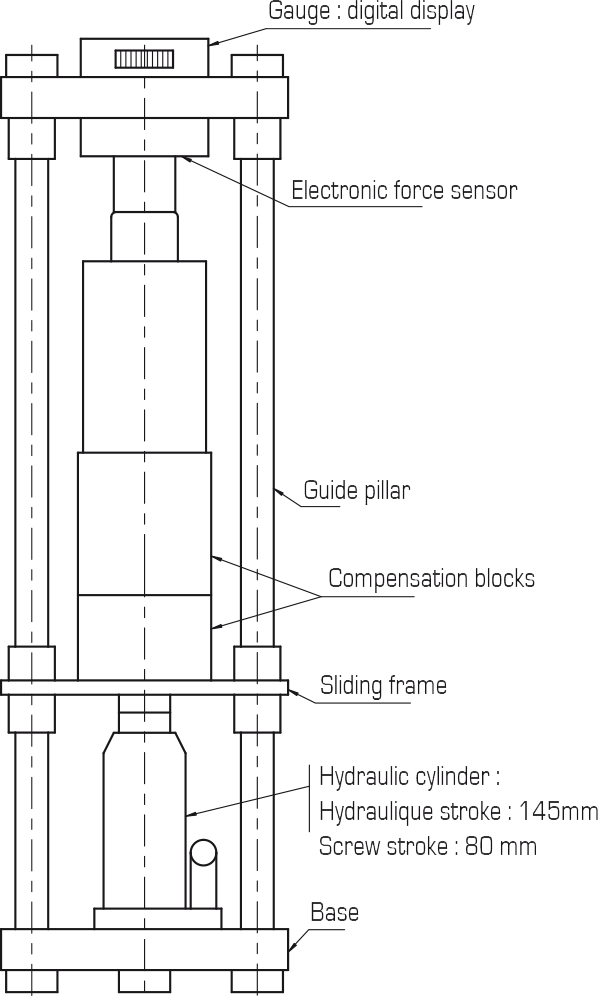

The test bench has been specially designed to check the nominal load of the range of gas springs from RG 150 to RG 5000 daN.

Capacity:
– Maximum force : Digital sensor => 20T
– Maximum stroke : 225 mm

Dial gauge reading tolerance:
up to ± 0.1%

Overall dimension:
– Height : 1400 mm
– Length : 390 mm
– Width : 340 mm
– 3 guide pillars

Weight:
Approximately 220 kg (without gas spring)

Note:
In order to ensure an accurate measure, we advise the digital version for the test of gas spring below force 500 daN.
