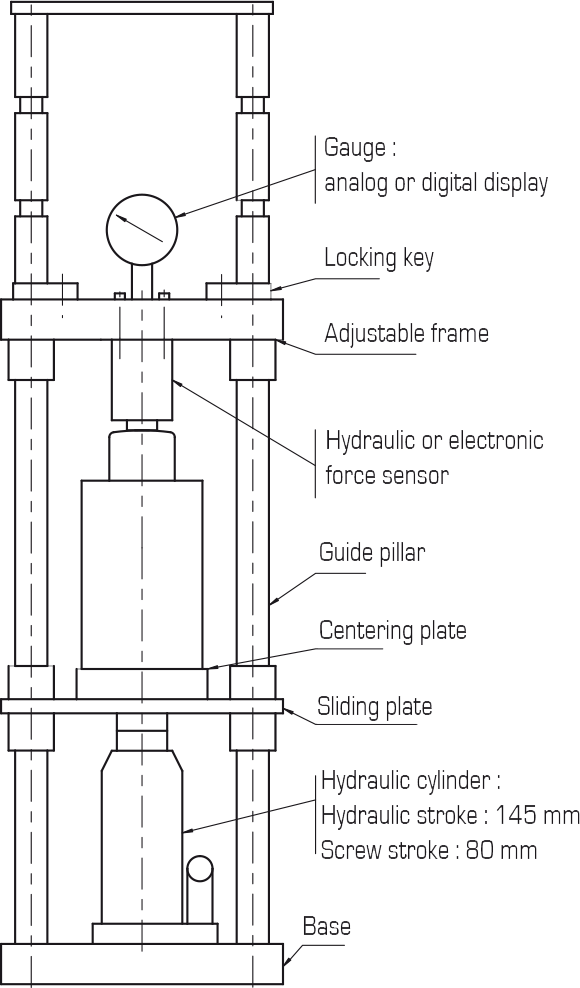

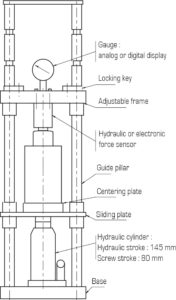

5 TON and 6 TON TEST BENCHES

• QTB-A (6 tons) with MECHANICAL PRESSURE GAUGE – (852019/000)
• QTB-B (5 tons) – 220V-50Hz power supply – with DIGITAL GAUGE – (852020/000)
• QTB-B (5 tons) – 110V-60Hz power supply – with DIGITAL GAUGE – (852022/000)

Control:
The test bench has been specially designed to check the nominal load of the range of gas springs from RG 150 to RG 5000 daN.

Nota:
The measured efforts are subject to variation (ambient temperature, recent use, etc.)
Admissible range for new spring: +/- 5%.
Permissible loss for ground spring: up to -10%.

Capacity:
– Maximum force :
Mechanical sensor => 6T
Digital sensor => 5T
– Maximum stroke : 225 mm

Dial gauge reading tolerance:
– Mechanical gauge tolerance : ± 10%
– Digital gauge tolerance : ± 0.1%

Overall dimension:
– Height 1000 mm
– Length 300 mm
– Width 200 mm

Weight:
Approximately 50 kg (without gas spring)
