Hydraulic block cylinders – S48
Test pressure: 500 bars
Max working pressure: 350 bars
HELD IN STOCK
Key provided
- Double stem seal
- Galvanized one-piece body
- Treated one-piece piston rod
- Strokes ± 0.3mm
- 2-year or 400 km warranty (4 million cycles for a 50 mm stroke)

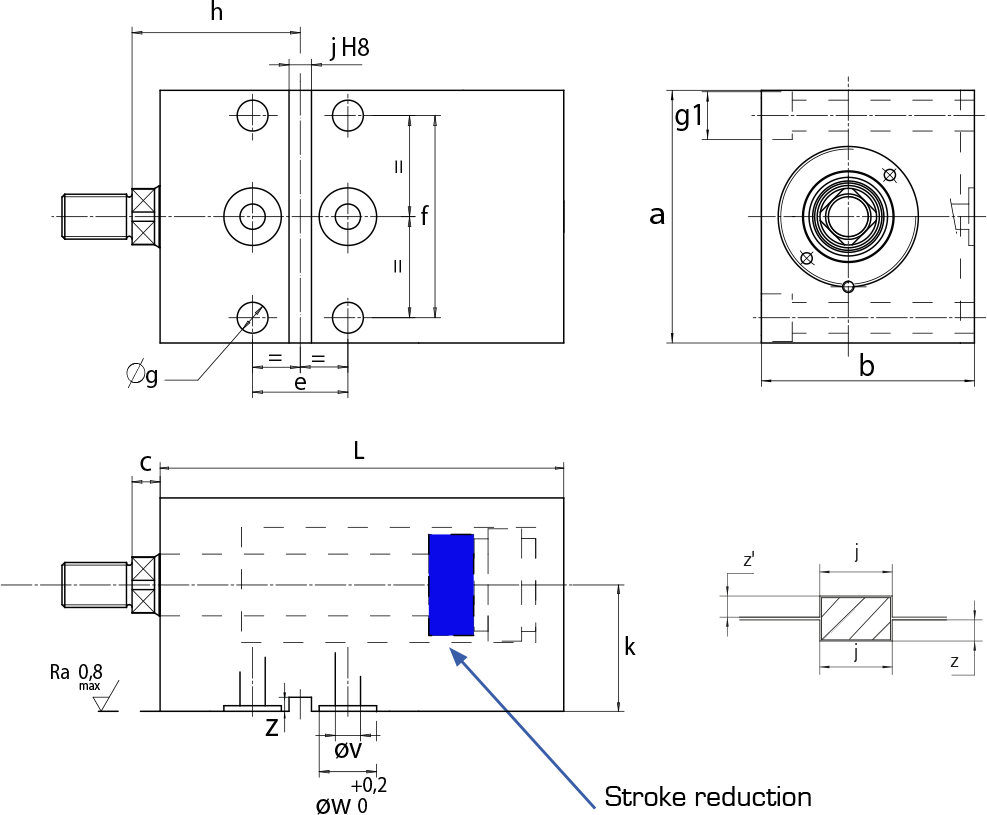

| TYPE | Units | S48 40 | S48 50 | S48 63 |
| Piston | (mm) | 40 | 50 | 63 |
| Rod | (mm) | 22 | 28 | 36 |
| Pushing force at 100 bars | (kN) | 12.5 | 19.6 | 31.1 |
| Pulling force at 100 bars | (kN) | 8.7 | 13.4 | 21 |
| L (strokes from 5 to 80 mm) | (mm) | 165 | 175 | 188 |
| L (strokes from 85 to 120 mm) | (mm) | 205 | 215 | 228 |
| L (strokes from 125 to 160 mm) | (mm) | 245 | 255 | 268 |
| L (strokes from 165 to 200 mm) | (mm) | 285 | 295 | 308 |
| a | (mm) | 90 | 100 | 120 |
| b | (mm) | 76 | 86 | 106 |
| c | (mm) | 10 | 10 | 12 |
| e | (mm) | 34 | 35 | 42 |
| f | (mm) | 72 | 82 | 98 |
| g | (mm) | 11 | 11 | 13 |
| g1 x depth | (mm) | ø17 x 11 | ø17 x 11 | ø19 x 13 |
| h | (mm) | 60 | 60 | 72 |
| j H8 | (mm) | 8 | 10 | 12 |
| k | (mm) | 45 | 50 | 60 |
| v | (mm) | 9 | 9 | 10 |
| w x depth | (mm) | ø20.5 x 2 | ø20.5 x 2 | ø22.3 x 2 |
| z | (mm) | 5 | 5 | 5 |
| z’ (+0.1 0) | (mm) | 5 | 5 | 5 |
Rod ends
| TYPE | Units | S48 40 | S48 50 | S48 63 |
| ød | (mm) | 22 | 28 | 36 |
| A | (mm) | 25 | 30 | 40 |
| B | (mm) | 8 | 8 | 10 |
| M | (mm) | M16 x 1.5 | M20 x 1.5 | M27 x 2 |
| C | (mm) | M10 | M16 x1.5 (S : M16 x 2) | M20 x1.5 (S : M20 x 2.5) |
| K | (mm) | 17 | 22 | 30 |
