Double-acting hollow rod clamp PCD

Double acting
Force at 350 bar: 13 to 131 kN

Characteristics
Design

Characteristics

• thrust and traction
• fixing taps in the base (standard)
• rod with a Heli-Coil ring, suffix HC

Design

• steel body with anti-corrosion treatment
• treated steel rod
• Passage for standardised rod quality 8.8

Print this sheet

Double-acting hollow rod clamp PCD : Linear cylinders - Quiri - 2

Part number of PCD clamp with Heli-Coil ring: 171 0**/500
Part numbers of packs of spare seals for PCD clamps: 171 0**/900
Example: The part number for the PCD clamp 20 is: 171 041/900

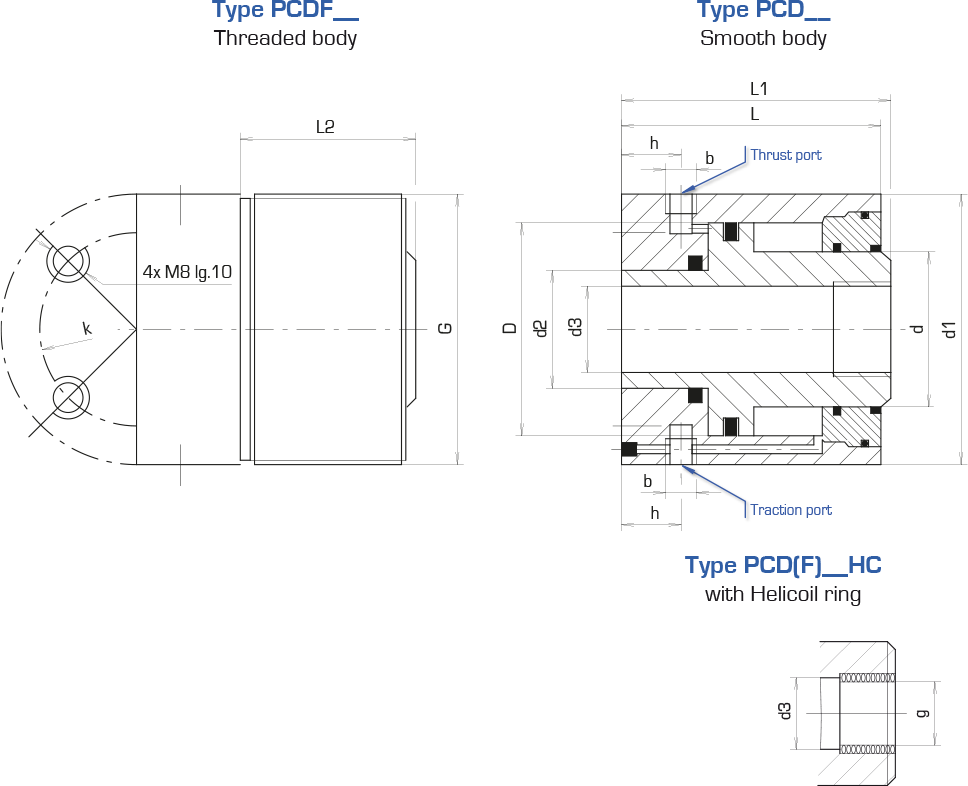

Force at 350 bar		Travel	Thrust cross section		Rod øD	Rod ød	Type	Reference
Force at 350 bar		Travel	Thrust cross section		Rod øD	Rod ød	Type	Reference	ød1	ød2	ød3	b	g HC	G	øk	L	L1	L2	h
kN		mm	cm²		mm	mm			mm	mm	mm	mm			mm	mm	mm	mm	mm
P	13	10	P	3.77	25	16	PCD 20	171 041/000	50	12	8.2	G1/8’’	M8	M50 x 1.5	35	59	60	36	11	3D
P	13		P	3.77			PCD 20 HC	171 041/200
T	10		T	2.89			PCDF 20	171 041/100
T	10		T	2.89			PCDF 20 HC	171 041/300
P	20	10	P	6.03	32	20	PCD 30	171 042/000	55	16	10.2	G1/4’’	M10	M55 x 1.5	40	64	65	41	12	3D
P	20		P	6.03			PCD 30 HC	171 042/200
T	17		T	4.90			PCDF 30	171 042/100
T	17		T	4.90			PCDF 30 HC	171 042/300
P	32	16	P	9.42	40	25	PCD 50	171 043/000	65	20	12.2	G1/4’’	M12	M65 x 1.5	45	72	73	45	14	3D
P	32		P	9.42			PCD 50 HC	171 043/200
T	26		T	7.65			PCDF 50	171 043/100
T	26		T	7.65			PCDF 50 HC	171 043/300
P	51	16	P	14.72	50	32	PCD 80	171 044/000	70	25	16.2	G1/4’’	M16	M70 x 1.5	50	78	79	50	14	3D
P	51		P	14.72			PCD 80 HC	171 044/200
T	40		T	11.59			PCDF 80	171 044/100
T	40		T	11.59			PCDF 80 HC	171 044/300
P	80	20	P	23.12	63	40	PCD 120	171 045/000	80	32	20.2	G1/4’’	M20	M80 x 2	60	95	96	60	18	3D
P	80		P	23.12			PCD 120 HC	171 045/200
T	65		T	18.60			PCDF 120	171 045/100
T	65		T	18.60			PCDF 120 HC	171 045/300
P	131	25	P	37.68	80	50	PCD 200	171 046/000	100	40	28.2	G1/4’’	M27	M100 x 2	75	109	110	65	22	3D
P	131		P	37.68			PCD 200 HC	171 046/200
T	107		T	30.63			PCDF 200	171 046/100
T	107		T	30.63			PCDF 200 HC	171 046/300

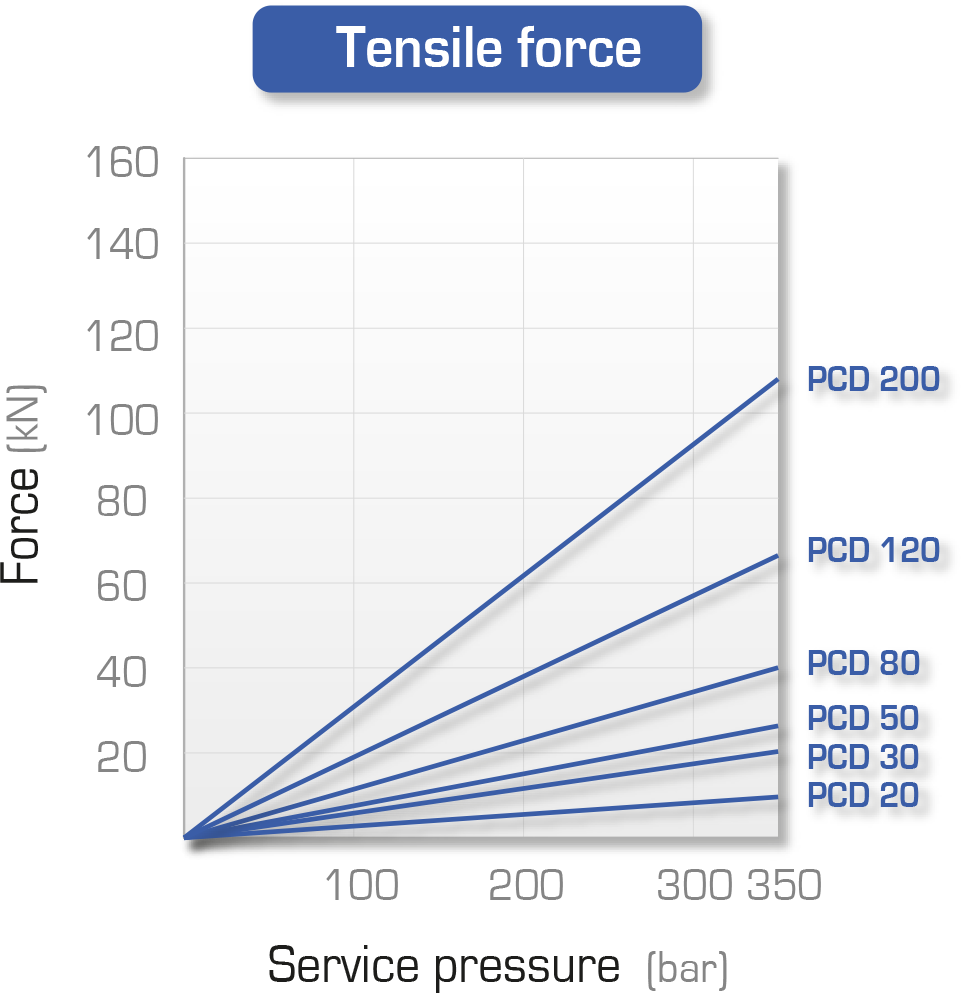

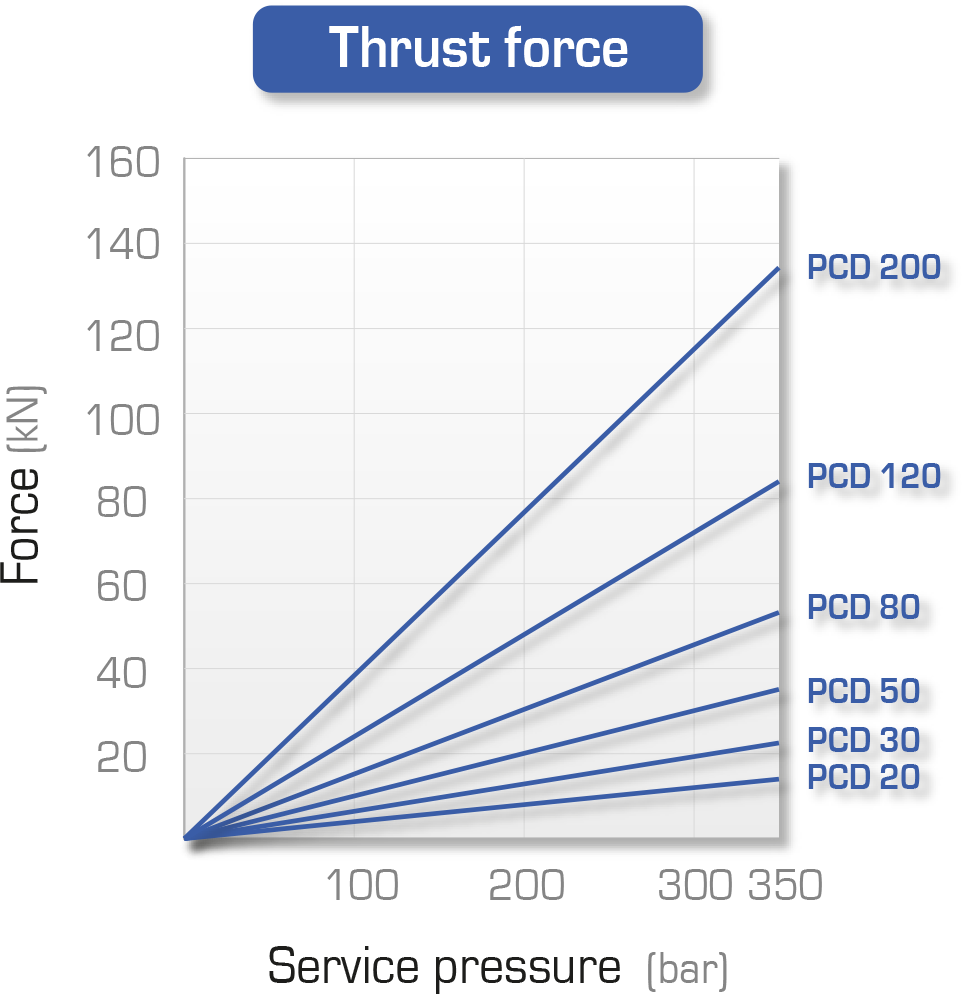

Product charts
