Double-acting threaded clamp FD

Double acting
Max force at 350 bar: 11 to 109 kN

Double-acting threaded clamp FD : Linear cylinders - Quiri

Characteristics
Design

Characteristics

• domed or tapped rod end

Design

• steel body with anti-corrosion treatment
• treated steel rod

Print this sheet

Double-acting threaded clamp FD : Linear cylinders - Quiri - 2

Part numbers of packs of nitrile seals for FD: 14* ***/900
Example for FD 40 clamp, part no.: 11 108/900

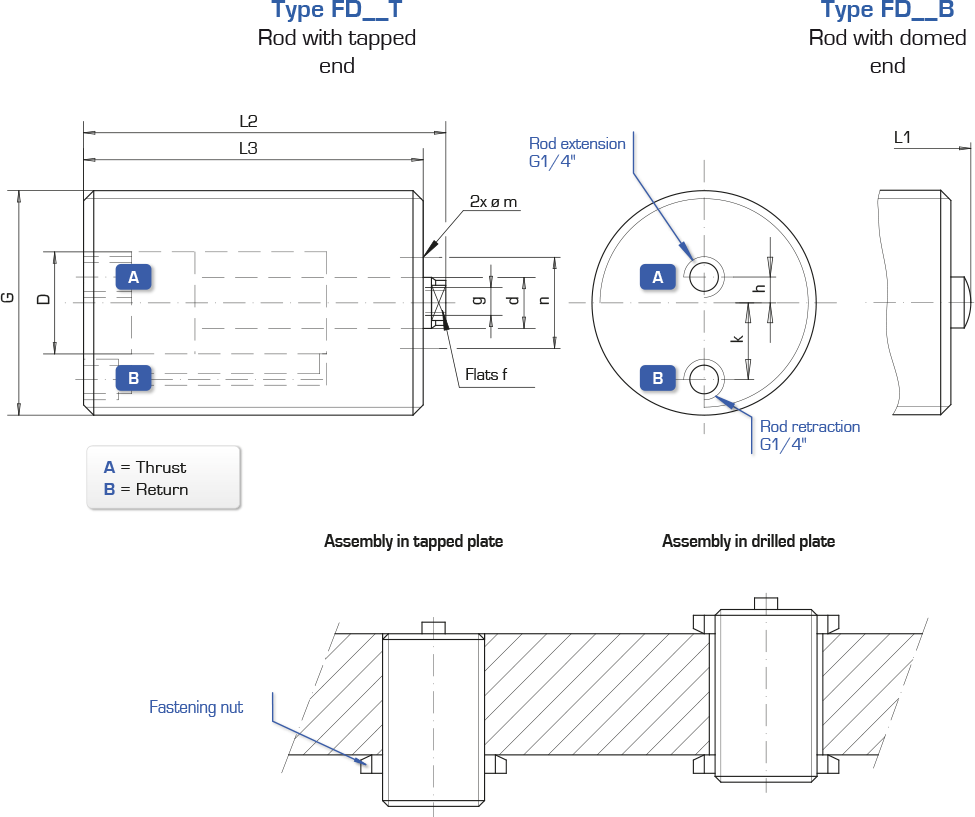

Force at 350 bar		Travel	Thrust cross section		Rod øD	Rod ød	Type	Reference
Force at 350 bar		Travel	Thrust cross section		Rod øD	Rod ød	Type	Reference	L1	L2	L3	f	G	g	h	k	øm	n
kN		mm	cm²		mm	mm			mm	mm	mm	mm			mm	mm	mm	mm
P	11	20	P	3.14	20	10	FD 15 B	141 106/000	71.5	74.5	68	8	M45 x 1.5	M6 lg. 12	9	13	4	22	3D
T	8	20	T	2.35	20	10	FD 15 T	141 106/100	71.5	74.5	68	8	M45 x 1.5	M6 lg. 12	9	13	4	22	3D
P	17.1	25	P	4.9	25	14	FD 25 B	141 107/000	78.5	81.5	75	11	M52 x 1.5	M8 lg. 12	6	16	4	28	3D
T	12	25	T	2.37	25	14	FD 25 T	141 107/100	78.5	81.5	75	11	M52 x 1.5	M8 lg. 12	6	16	4	28	3D
P	28	25	P	8.04	32	16	FD 40 B	141 108/000	84.5	87.5	80	13	M60 x 1.5	M10 lg.15	3	20	5	32	3D
T	21.7	25	T	6.03	32	16	FD 40 T	141 108/100	84.5	87.5	80	13	M60 x 1.5	M10 lg.15	3	20	5	32	3D
P	44	40	P	12.56	40	20	FD 65 B	141 109/000	105	108	100	17	M70 x 1.5	M12 lg. 20	0	25.5	6	40	3D
T	33.6	40	T	9.42	40	20	FD 65 T	141 109/100	105	108	100	17	M70 x 1.5	M12 lg. 20	0	25.5	6	40	3D
P	68.7	40	P	19.63	50	25	FD 100 B	142 202/000	110.5	113.5	103	19	M85 x 2	M16 lg. 22	0	23.5	8	48	3D
T	52.9	40	T	14.72	50	25	FD 100 T	142 202/100	110.5	113.5	103	19	M85 x 2	M16 lg. 22	0	23.5	8	48	3D
P	109	50	P	31.17	63	32	FD 160 B	142 203/000	125.5	129.5	117	24	M105 x 2	M20 lg. 30	0	41	10	62	3D
T	83.3	50	T	23.13	63	32	FD 160 T	142 203/100	125.5	129.5	117	24	M105 x 2	M20 lg. 30	0	41	10	62	3D
