500V series hydraulic cylinders

Print this guide

Quick access to sections

Features
Single-acting cylinders
Plunger cylinders
Cylinder selection
See products

Features

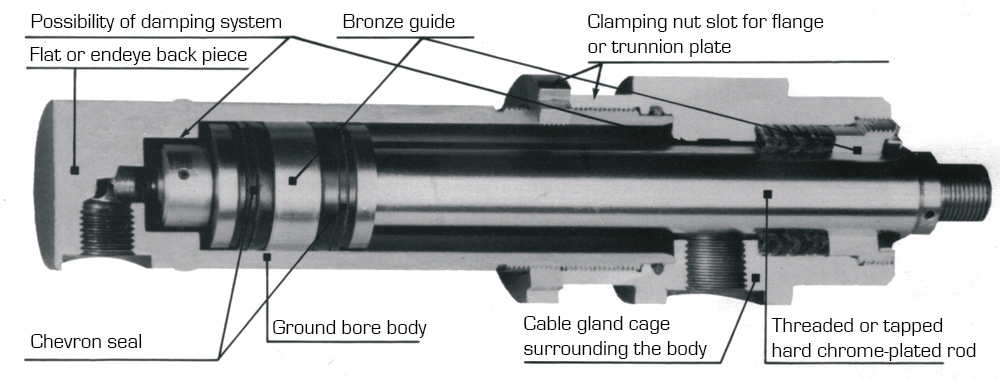

High-performance cylinders suitable for all applications, particularly in very harsh operating conditions with high loads in small spaces (steelworks, public works, presses, etc.).
• Wide embedded and bronze guiding
• Chevron seals on piston and rod for standard version
• Pressure in intermittent service : 500 bar
• Intensive operating : 400 bar
• Maximum speed : 0,5 m/s with standard seals, up to 2 m/s with special seals
• Maximum temperature : 100°C with standard seals, up to 200°C with viton seals
• A choice of three rod diameters per bore from 50Ø upwards, with the differential rod corresponding to common cases. Standardized bore and rod.

500V series hydraulic cylinders : 500 bar hydraulic cylinders - Quiri

500V series hydraulic cylinders : 500 bar hydraulic cylinders - Quiri - 2

Single-acting cylinders

Single-acting “Push” cylinders (Sealing on thrust-side stock) with strong rod.
Single-acting “Pulling” cylinders (Sealing on stem and stock on return side) with pull rod.
These cylinders are derived from the double-acting version by removing the seals, which are no longer required depending on the version. The unused supply port is fitted with an air filter.

Plunger cylinders

Plunger cylinders are based on double-acting cylinders with a strong rod, and eliminate the need for a piston seal.
The unused port is sealed with a steel plug and gasket.

Cylinder selection based on buckling constraints

Maximum force : Take into account extreme operating conditions: overpressure, dynamic forces, fastener reactions, etc. Avoid end-of-stroke shocks (damping for high speeds >0.15 m/s)

Feed port : Select them according to the generator flow rate, taking into account the ratio of thrust to return cross-sections.

Buckling : Determine the cylinder according to the tables below, which give the maximum length compatible with buckling as a function of force, operating pressure, bore and rod diameters.

• To obtain the maximum stroke Cmax resistant to buckling, multiply the buckling lengths L in Table I by the correction coefficient K in Table II, depending on the type of fastener.

Cmax.=KL

• Preferably choose fasteners that are more resistant to buckling, leading to smaller cylinders and therefore lower costs.

Table I

Maximum length L (in mm): safety factor approx. 2,5
Corresponding force F (in 10⁴ N corresponding in practice to tons of force)

Bore	Rod	Working pressure in bar
		50		100		150		200		250		300		350		400		450		500
		F	L	F	L	F	L	F	L	F	L	F	L	F	L	F	L	F	L	F	L
25	18	0.24	1320	0.49	930	0.73	760	0.98	655	1.22	585	1.47	535	1.71	495	1.96	450	–	–	–	–
32	22	0.40	1530	0.80	1085	1.20	885	1.61	765	2.01	685	2.41	625	2.81	580	3.22	540	–	–	–	–
40	28	0.621	1980	1.25	1400	1.88	1140	2.51	990	3.14	885	3.77	805	4.40	745	5.02	695	–	–	–	–
50	32	0.98	2040	1.96	1450	2.95	1175	3.93	1020	4.91	910	5.89	830	6.87	770	7.85	720	8.83	680	9.80	645
	36		2510		1770		1440		1250		1120		1025		945		885		835		790
	40		3250		2300		1875		1625		1450		1325		1225		1145		1080		1025
63	40	1.56	2580	3.11	1830	4.67	1500	6.23	1280	7.80	1150	9.34	1050	10.90	975	12.50	910	14.00	860	15.55	815
	45		3550		2300		1875		1625		1450		1325		1225		1145		1080		1025
	50		4000		2830		2310		2000		1790		1640		1510		1410		1330		1260
80	50	2.51	3150	5.02	2200	7.53	1820	10.04	1580	12.65	1400	15.06	1290	17.57	1190	20.08	1110	22.59	1050	25.10	995
	56		3820		2690		2200		1910		1700		1560		1440		1340		1270		1200
	63		5000		3520		2880		2500		2230		2040		1890		1770		1665		1580
100	63	3.92	4050	7.85	2860	11.78	2340	15.70	2025	19.65	1810	23.55	1650	27.50	1530	31.40	1435	35.35	1350	39.27	1280
	70		5000		3540		2880		2500		2230		2040		1890		1770		1665		1580
	80		6550		4630		3780		3275		2930		2680		2480		2320		2180		2070
125	80	6.13	5160	12.27	3650	18.40	2980	24.55	2580	30.67	2300	36.80	2110	42.93	1950	49.10	1830	55.20	1720	61.30	1630
	90		6550		4630		3780		3275		2930		2680		2480		2320		2180		2070
	100		8220		5820		4750		4110		3670		3360		3110		2910		2740		2600
140	90	7.70	5800	15.40	4100	23.10	3350	30.80	2900	38.50	2590	46.20	2370	53.90	2190	61.60	2050	69.30	1930	77.00	1830
	100		7300		5160		4210		3650		3260		2980		2760		2590		2430		2310
	110		8700		6150		5020		4350		3890		3550		3290		3080		2900		2750
160	100	10.05	6430	20.10	4550	30.15	3710	40.20	3215	50.25	2870	60.30	2630	70.35	2430	80.40	2280	90.45	2140	100.5	2030
	110		7640		5400		4410		3820		3410		3120		2890		2700		2540		2410
	125		9900		7000		5700		4950		4420		4050		3740		3500		3300		3130
200	125	15.74	7880	31.14	5680	46.88	4550	62.28	3940	78.50	3520	94.25	3220	110	2980	125.7	2790	141.5	2610	157.4	2490
	140		9900		7000		5700		4950		4420		4050		3740		3500		3300		3130
	160		13000		9200		7500		6500		5800		5310		4910		4600		4330		4110

Table II : Fastening correction coefficient K

Fastening type
Fastening type	Embedding body Unguided rod	Embedding body Guided rod		Endeye on body & rod				Trunnions on body Endeye on rod
Working pressure (bar)	0 – 400	0 – 200	200 – 400	0	100	200	300	0	100	200	300
Working pressure (bar)	0 – 400	0 – 200	200 – 400	100	200	300	400	100	200	300	400
K	0.5	1.40	1.37	0.43	0.40	0.37	0.35	0.91	0.86	0.83	0.81
