Single acting 1000 bar hand pumps, 2 speeds – PMS

For single acting cylinders

Features
Options

Features

• two speeds
• External adjustable pressure relief valve, set at 1000 bar
• Delivered with oil

Options

Other relief valve setting : on request

Print this sheet

Single acting 1000 bar hand pumps, 2 speeds – PMS : Hydraulic hand pumps 1000 bar - Quiri - 2

Pressure

bar

Oil flow

cm3/pump stroke

Maximum

pressure

bar

Oil flow

cm3/pump stroke

Oil capacity

Reference

Dimension (mm)

Weight

Total

Usable

cm3

19,4

1000

1,2

850

750

PMS 10207

560

180

164

112

140

442

517

7,8

HOSES WITH COUPLERS

Single acting 1000 bar hand pumps, 2 speeds – PMS : Hydraulic hand pumps 1000 bar - Quiri - 3

Standard length in m *	Reference
1	A38055
2	A38056
3	A38057

* Other length on request

BLOCK – PRESSURE GAUGE – ADAPTOR

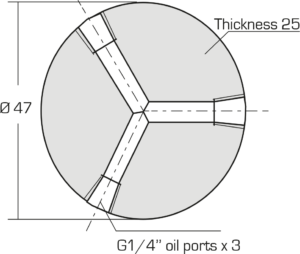

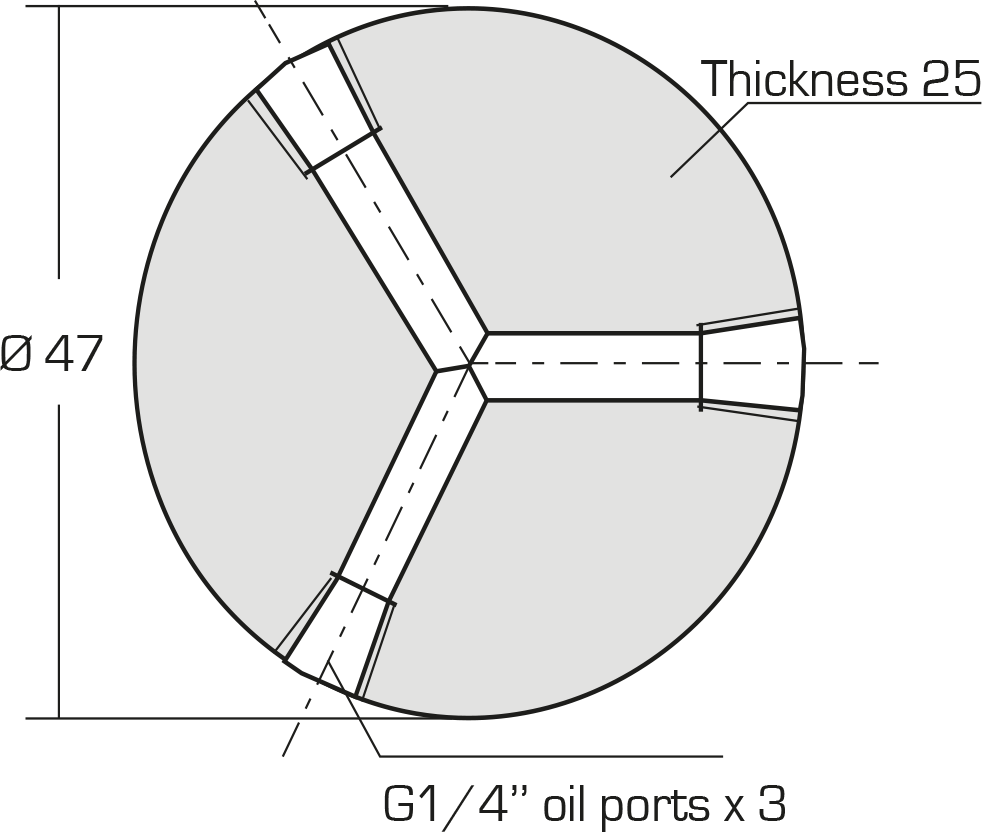

Block : MF 13

Single acting 1000 bar hand pumps, 2 speeds – PMS : Hydraulic hand pumps 1000 bar - Quiri - 4

Pressure gauge ø100 1/2’’ NPT bottom connection: MG 1500

Single acting 1000 bar hand pumps, 2 speeds – PMS : Hydraulic hand pumps 1000 bar - Quiri - 5

Pressure gauge adaptor : AM 053

Single acting 1000 bar hand pumps, 2 speeds – PMS : Hydraulic hand pumps 1000 bar - Quiri - 6
