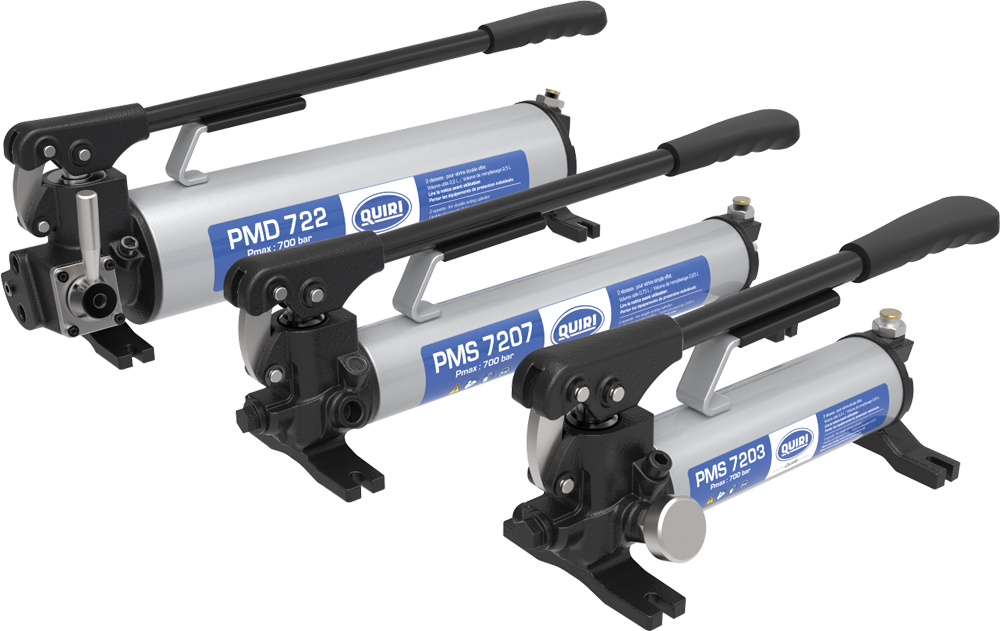

Single acting hand pumps, 2 speeds – 700 bar – PMS

For single acting cylinders

Features

• 2 automatic speeds
• External adjustable pressure relief valve, set at 700 bar
• Delivered with oil

Options

Other relief valve setting : on request

Print this sheet
Single acting hand pumps, 2 speeds – 700 bar – PMS : Hydraulic hand pumps 700 bar - Quiri - 2
For cylinder Pressure Oil flow Maximum

pressure

 Oil flow Oil capacity Maxi.

handle

effort

daN

 Reference Dimensions (mm) Weight
a b c d e f g h
bar cm3/pump stroke bar cm3/pump stroke Total Usable kg
LP HP cm3 cm3
single acting 20 19,4 700 1,2 450 300 30 PMS 7203 447 177 164 110 140 140 282 357 6,5
single acting 20 19,4 2,8 850 750 51 PMS 7207 560 180 164 110 140 140 442 517 7,8
single acting 27 39,5 2,8 2500 2200 48 PMS 722 633 222 195 122 150 150 502 567 13
double acting 27 39,5 2,8 2500 2200 48 PMD 722 633 222 195 122 150 159 502 596 14

Product accessories

ø 100 pressure gauge adaptor – 700 bar – AM 135

ø 100 pressure gauge – 700 bar

Standard Thermoplastic hoses (internal Ø 6mm) – 700 bar

Internal 6mm
