Pressure gauges

Print this sheet

Standard pressure gauges

Single scale (bar)
Accuracy: ± 1% to 2,5% of full scale

Pressure gauges : Valves & fitting - Quiri
Size Reference Scale

(bar)

Connection
Dry Glycerine filled
63 MG 016 0 – 160 G 1/4’’
MG 025 0 – 250
MG 040 0 – 400
MG 060 0 – 600
MG 070 0 – 700
MG 0100 0 – 1000
100 MS 116 * MG 116 0 – 160 G 1/2’’
MS 125 * MG 125 0 – 250
MS 140 * MG 140 0 – 400
MS 160 * MG 160 0 – 600
MG 1100 0 – 1000
MG 1500 0 – 1600 1/2’’ NPT
160 MG 1600 0 – 1600 G 1/2’’

* On request, we can deliver a twin scale (bar and ton or kN) on dry 100 mm gauges only
MS116 and MS160 with maximum indicating pointer

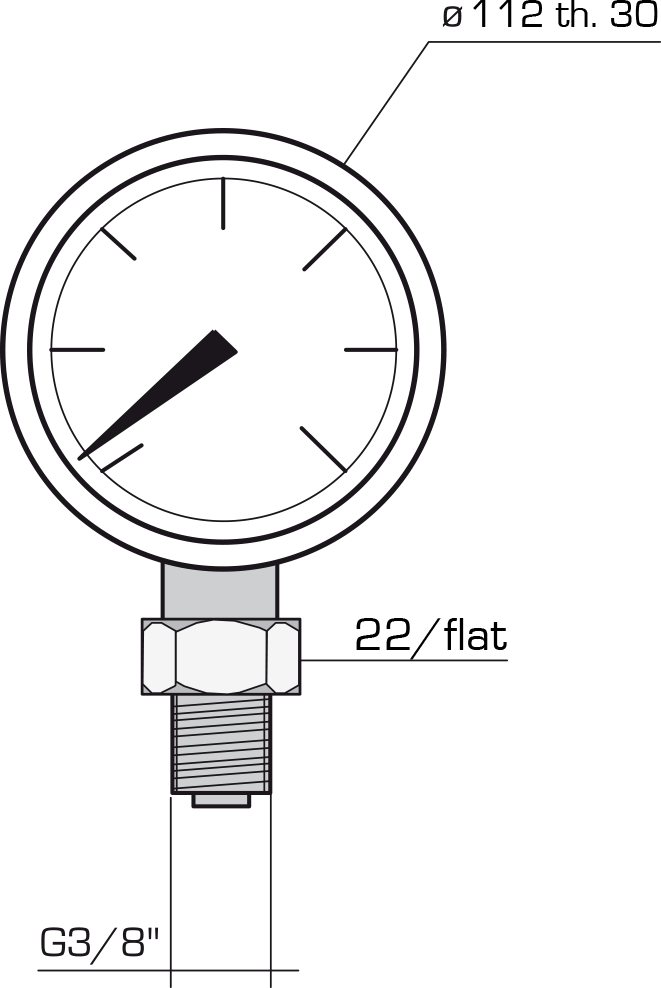

ø100 mm glycerine filled pressure gauges : specific to QUIRI 700 cylinders

Scales in PSI and bar (kg/cm²)
G3/8’’ rotating bottom connection
Accuracy : ± 2,5% of full scale

Pressure gauges : Valves & fitting - Quiri - 2
Pressure gauges : Valves & fitting - Quiri - 3
Pressure gauges : Valves & fitting - Quiri - 4
Scale (Ton) Reference To use with cylinder…
5 – 11 MG 511 SER 5 – 11
SEG 11
SRP 5 – 11
16 – 23 MG 1623 SER 16 – 23
SEG 23
SRP 23
DE 23
31 – 54 MG 3154 SER 31 – 54
SEG 31 – 54
SRP 31 – 54
SGS 31 – 54
DE 31 -54
31 – 54 – 93 MG 93 SER 93
SEG 93
SRP 31 – 54 – 93
SGS 93
DE 93
12 – 20 MG 1220 CSE 12 – 20
29 – 58 MG 2958 CSE 29 – 58
CDE 29 – 58
MG 700 All cylinders
