DM1 magnetic sensor

Characteristics

  • Supply voltage : 10 to 30 V DC
  • Permanent current : 200 mA at 25°C
  • Connection : PNP-NO, connecteur M8
  • Protection degree : IP 67 selon CEI 60529
  • Temperature : -20°C to 70°C
  • Cables : available on request
  • Direct fixing in the key groove of the BDA cylinder
Print this sheet

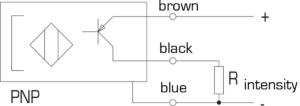

Connection

DM1 magnetic sensor : Hydraulic block cylinders BDA - Quiri - 2

Dimensions

DM1 magnetic sensor : Hydraulic block cylinders BDA - Quiri - 3

Compatible products

Hydraulic block cylinders – BDA Std

Test pressure: 500 bars
Max working pressure: 350 bars

Hydraulic block cylinders – BDA F1 Type

Test pressure: 500 bars
Max working pressure: 350 bars

Hydraulic block cylinders – BDA F2 Type

Test pressure: 500 bars
Max working pressure: 350 bars

Hydraulic block cylinders – BDA F3 Type

Test pressure: 500 bars
Max working pressure: 350 bars

See similar accessories

DM2 magnetic sensor

DM3 HT magnetic sensor

DM4 magnetic sensor

Coupling screw for BDA
