Coupling screw for BDA

Print this sheet
Coupling screw for BDA : Hydraulic block cylinders BDA - Quiri

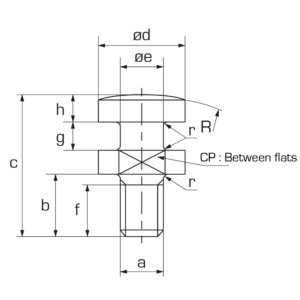

TYPE Units VA25.10 VA40.12 VA65.16 VA100.20 VA160.27
a M10 M12 M16 M20 M27
b (mm) 14.5 14.5 20 28 39
c (mm) 32 32 40 56 75
ød (mm) 20 20 25 32 40
øe (mm) 10 10 16 18 24
f (mm) 12 12 16 22 32
g (mm) 6.5 6.5 7 10 13
h (mm) 5.5 5.5 6 10 12
r (mm) 1 1 1 1 1.5
R (mm) 320 320 400 500 630
CP (mm) 17 19 24 30 41
