Accessories for clamping hydraulic unit ACHB

Pressure connectors - Capillaries - Gauges

Print this sheet

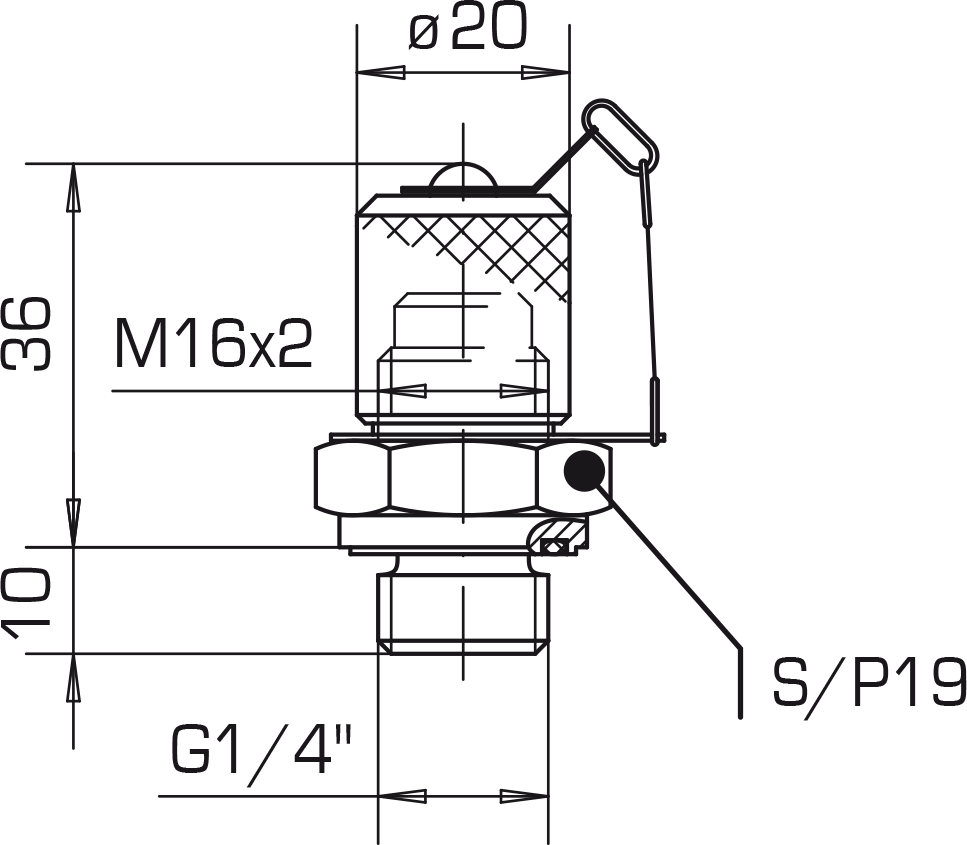

Complete screw connector with cap

(with incorporated seal)
Part number: A 65 035

Accessories for clamping hydraulic unit ACHB : Hydraulic unit and components - Quiri

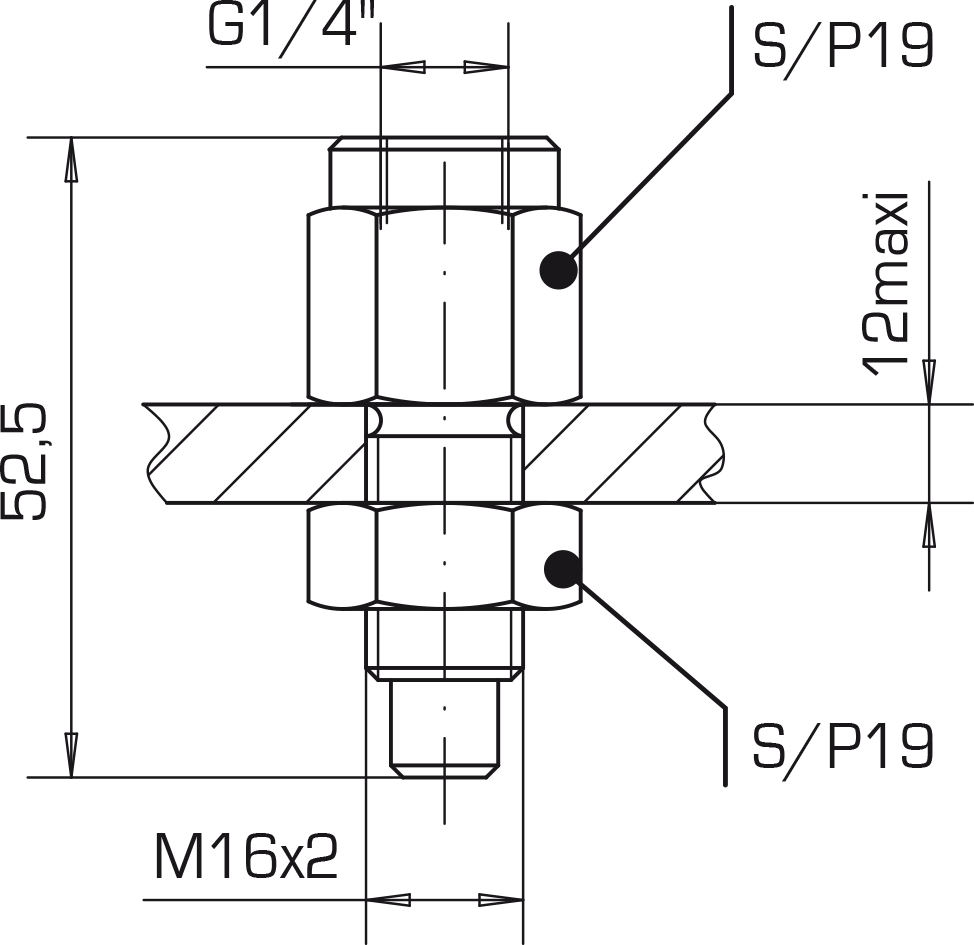

Connector for pressure gauge

Part number: A 65 038

Accessories for clamping hydraulic unit ACHB : Hydraulic unit and components - Quiri - 2

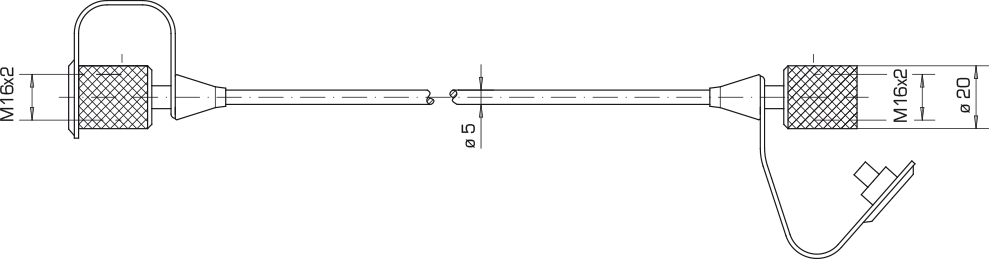

High-pressure flexible capillary tubing, 630 long

Part number: A 65 036

Accessories for clamping hydraulic unit ACHB : Hydraulic unit and components - Quiri - 3

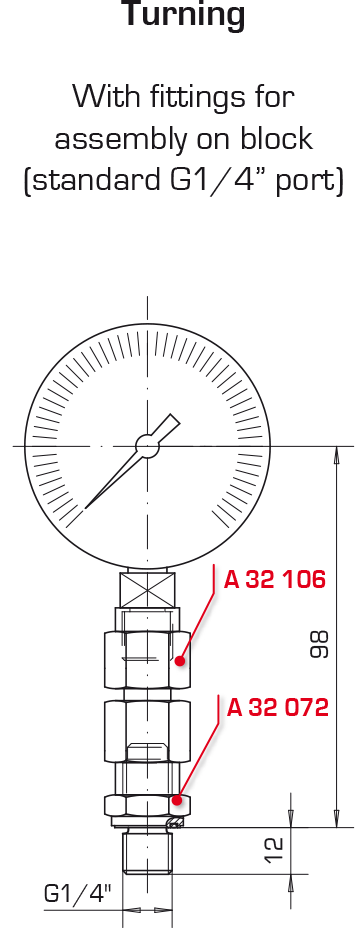

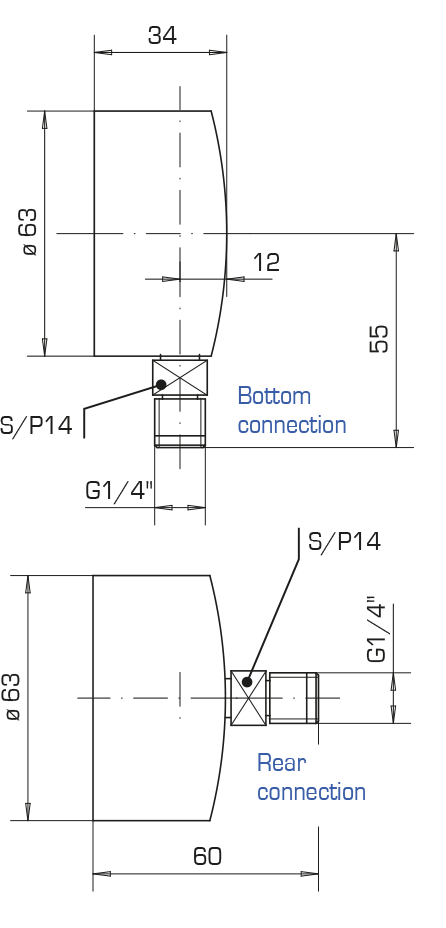

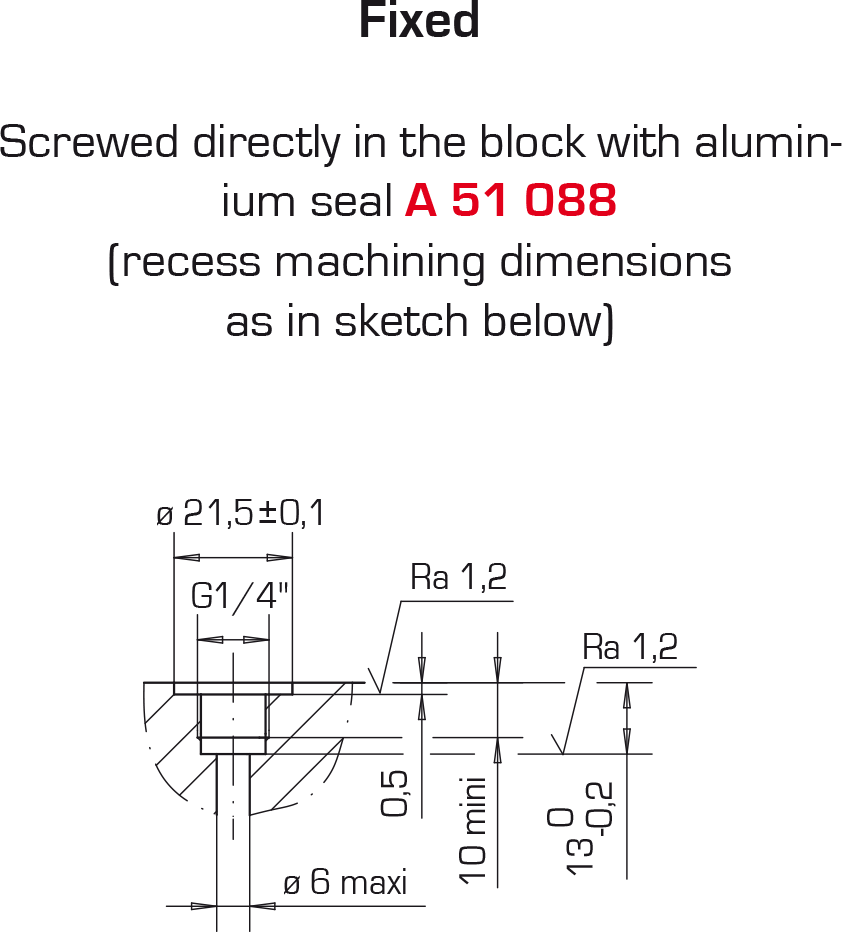

Glycerine-filled pressure gauges.

Accessories for clamping hydraulic unit ACHB : Hydraulic unit and components - Quiri - 4
Accessories for clamping hydraulic unit ACHB : Hydraulic unit and components - Quiri - 5
Accessories for clamping hydraulic unit ACHB : Hydraulic unit and components - Quiri - 6
Graduations Part numbers Type of fitting
0 to 250 bar A 69 033 Bottom
0 to 400 bar A 69 030 Bottom
0 to 250 bar A 69 251 Rear
0 to 400 bar A 69 252 Rear



Compatible products

Clamping hydraulic unit CHB

With electric motor
0.55 to 2.2 kW - 1.3 to 5 l/mm - 250 bar

See similar accessories

Filters for pressure intensifier – 10µ filter

On pipe

Filters for pressure intensifier – online filter

On pipe

Filters for pressure intensifier – NG6 filter

Sandwich NG6

Self-Coupler M20x1.5

Screw-in coupling mechanism.
Operating pressure from 5 to 350 bar.
Flow 12l/min at 70 bar. Max flow 20l/min.
