Clamping hydraulic unit CHB
With electric motor
0.55 to 2.2 kW - 1.3 to 5 l/mm - 250 bar
Motor pump unit:
Gear pump
• peak pressure : 300 bar
• service pressure : 250 bar
Electric motor
• supply voltage : 220 – 240V – 50 Hz
380 – 420V – 50 Hz
• rotation speed : 1450 rpm
• protection : IP54
Duty factor : S3
Tank:
• total capacity : 12 and 20 litres
• useful capacity : 8 and 14 litres
Equipment:
• 150-micron suction strainer
• filling port
• visual oil level indicator
• breather with air filter
Minimum electrical oil level indication with thermostatic probe.
Part number: A 36 365

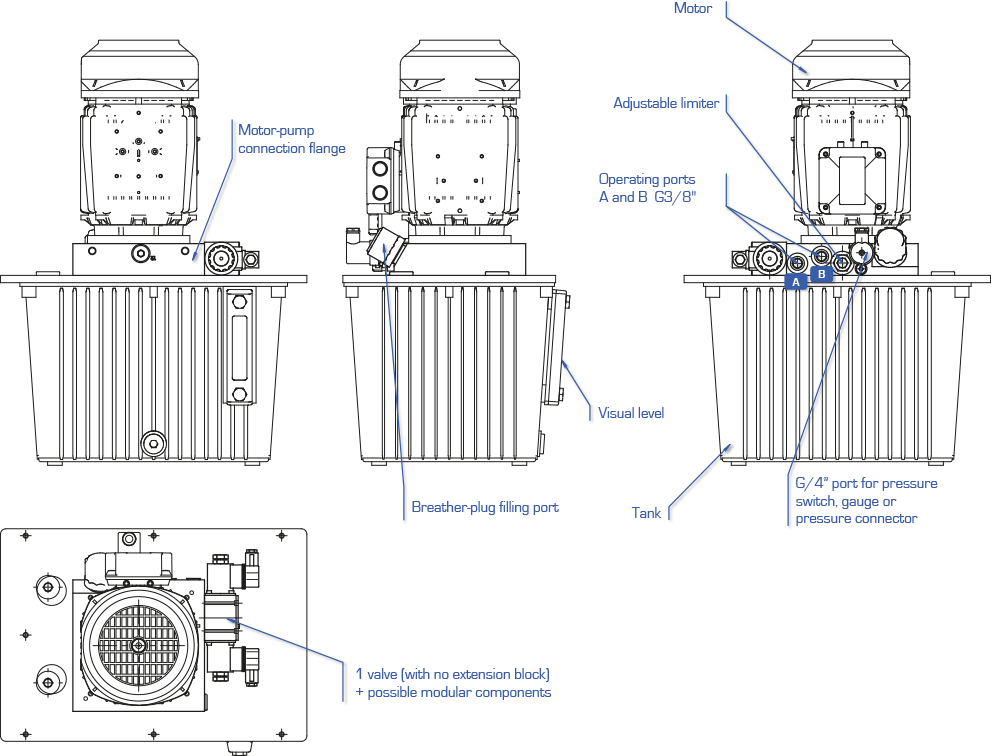

Motor and pump connection flange equipped with:
• pressure limiter adjustable from 0 to 300 bar
• check valve
• cavity for CETOP 03 valve
• G1/4’’ tapped hole
• pressure switch, pressure gauge or pressure
connector
• outlet A and B with G3/8’’ tap
• direct return port with G 3/8’’ tap
| Type | Reference | Pump
flow rate |
Power
motor |
Pressure
maximum |
Tank capacity | Dimensions | |||
| Total | Useful | H
|
L
|
P
|
|||||
| l/min | kW | bar | litres | litres | mm | mm | mm | ||
| CHB 1.3 – 0.55 – 12 | 902 230/111 | 1.3 | 0.55 | 250 | 12 | 8 | 493 | 362 | 242 |
| CHB 1.3 – 0.55 – 20 | 902 230/112 | 20 | 14 | 523 | 419 | 291 | |||
| CHB 3.7 – 1.50 – 12 | 902 230/113 | 3.7 | 1.5 | 250 | 12 | 8 | 552 | 362 | 242 |
| CHB 3.7 – 1.50 – 20 | 902 230/114 | 20 | 14 | 582 | 419 | 291 | |||
| CHB 5 – 2.20 – 12 | 902 230/115 | 5.3 | 2.2 | 250 | 12 | 8 | 552 | 362 | 242 |
| CHB 5 – 2.20 – 20 | 902 230/116 | 20 | 14 | 582 | 419 | 291 | |||

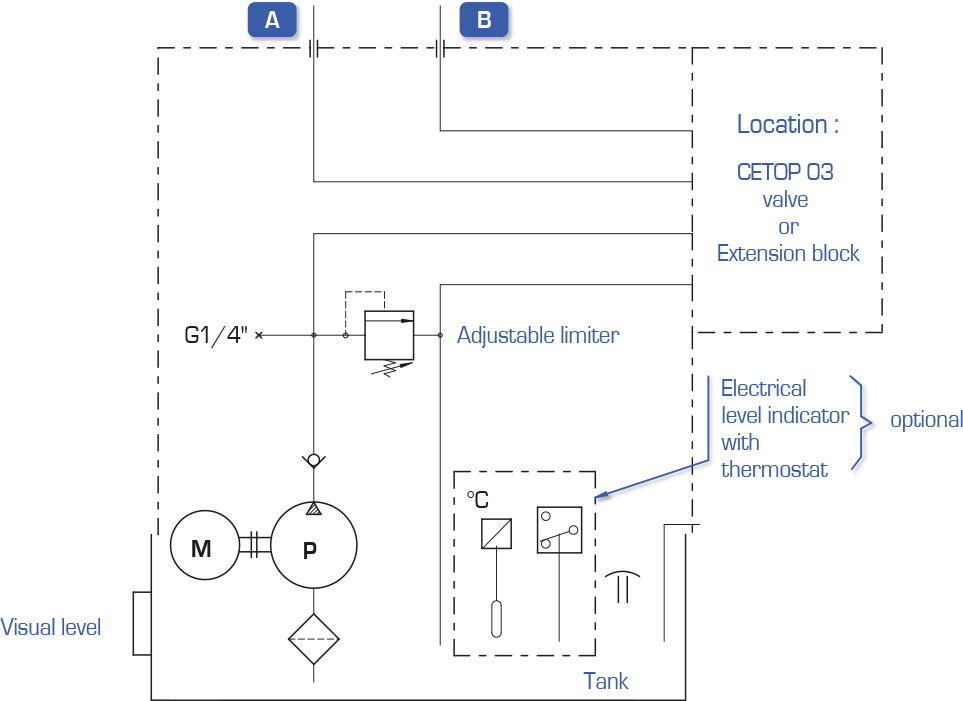

Hydraulic distribution
The basic unit allows the installation of a CETOP 3 valve and standard modular components.

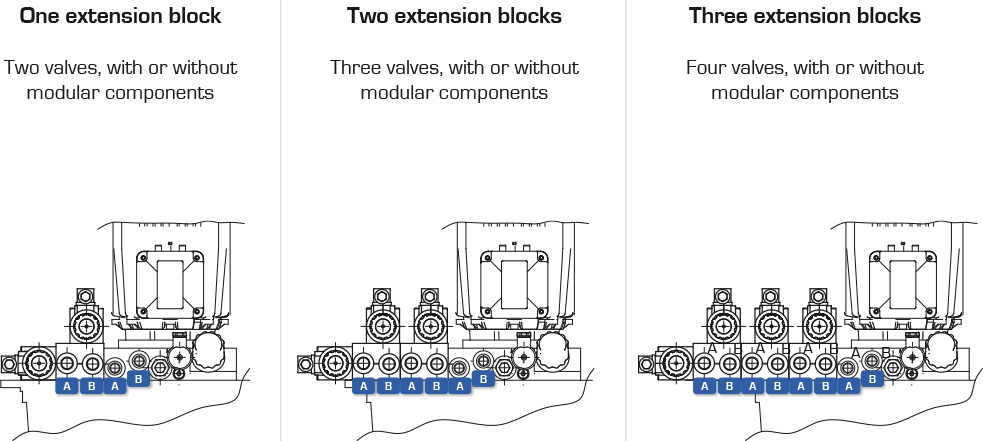

Extension blocks
The use of extension blocks allows the addition of more valves.
