Solenoid valves DN6

Characteristics

• maximum pressure : 315 bar
• maximum flow rate : 60 l/min
• fluid : hydraulic mineral oil
• control voltage : 24 V
• power consumption : 33W

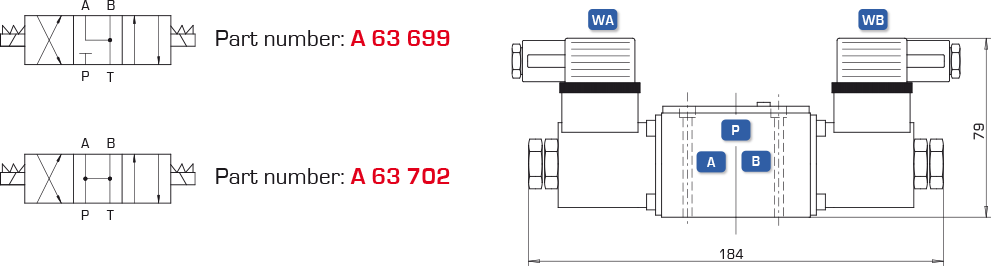

2 solenoids – 3 positions – spring centring.

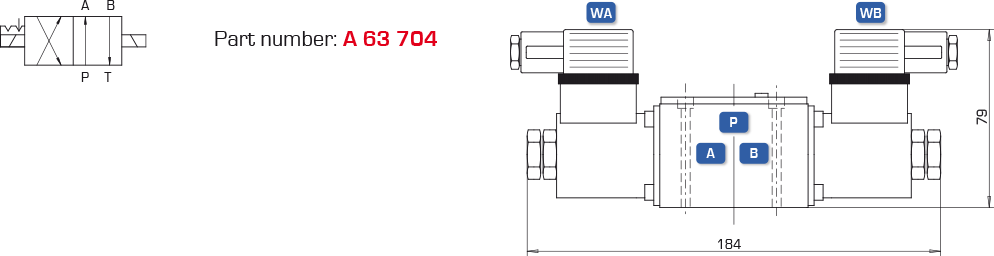

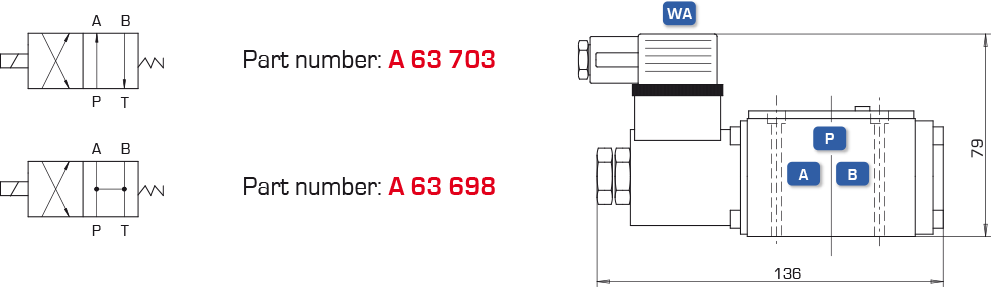

1 solenoid – 2 positions – spring return.

2 solenoids – 2 end positions with notches.
