Sequence valve VDS
With check valve
Maximum service pressure: 350 bar
The sequence valve allows a secondary circuit to be supplied when the pre-set pressure is reached in the primary circuit. It is used to sequence the movement of clamps, or for example, to clamp a workpiece before anti-vibration mountings provide support.
At the end of the cycle, the pressure in the secondary circuit is equal to the pressure in the primary circuit.
Type VDS 5.1 R :
Sequence valve developed for low pressure applications in ranges from 5 to 80 bars.
The sequential valves fitted to this set allow up to 1 sequence to be adjusted every 15 bars.
The bodies of these valves can be used in place of several installations from other brands.
| Type | Reference | ||||
| Pressure
range |
Max flow
rate |
||||
| bar | l/min | ||||

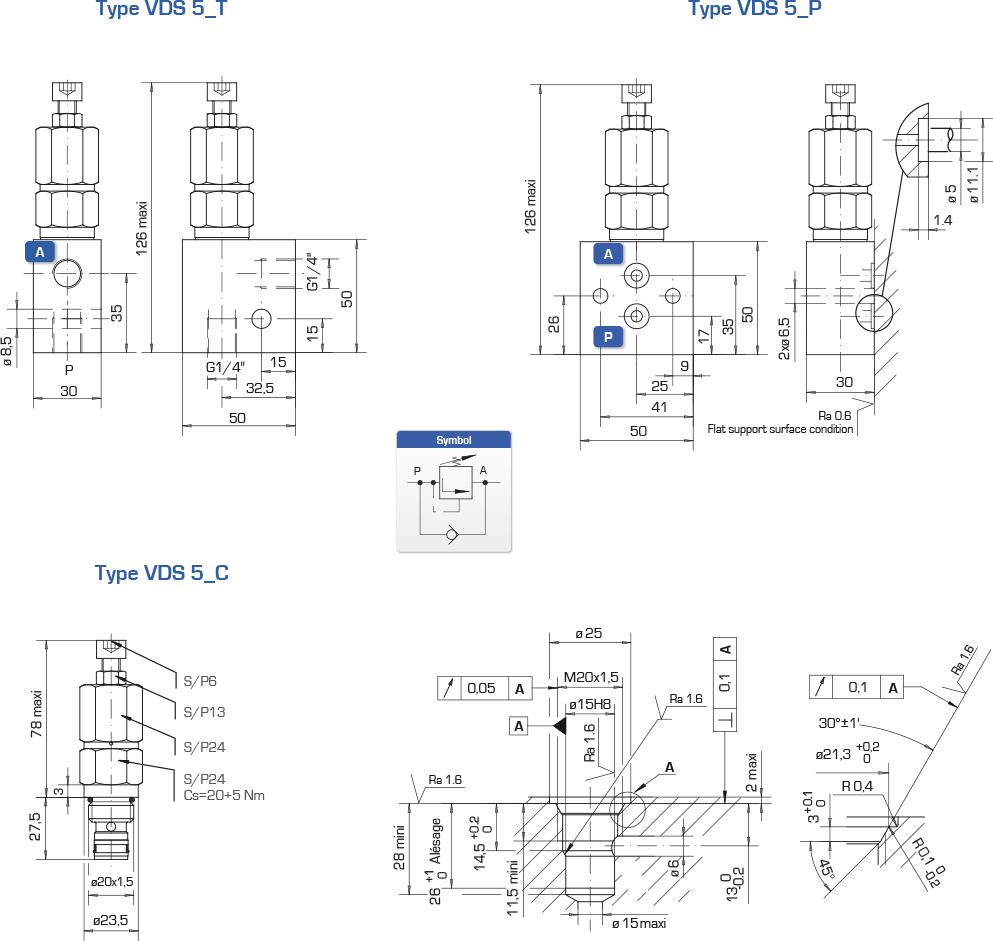

| VDS 5 | 1 | T | 354 007/100 | 10 to 100 | 12 |
| 2 | 354 007/200 | 50 to 250 | |||
| VDS 5 | 1 | P | 354 008/100 | 10 to 100 | 12 |
| 2 | 354 008/200 | 50 to 250 | |||
| VDS 5 | 1 | C | A 66 257 | 10 to 100 | 12 |
| 2 | A 66 258 | 50 to 250 | |||
| VDS 5 | 1 | R | 354 008/700 | 5 to 80 | 40 |
