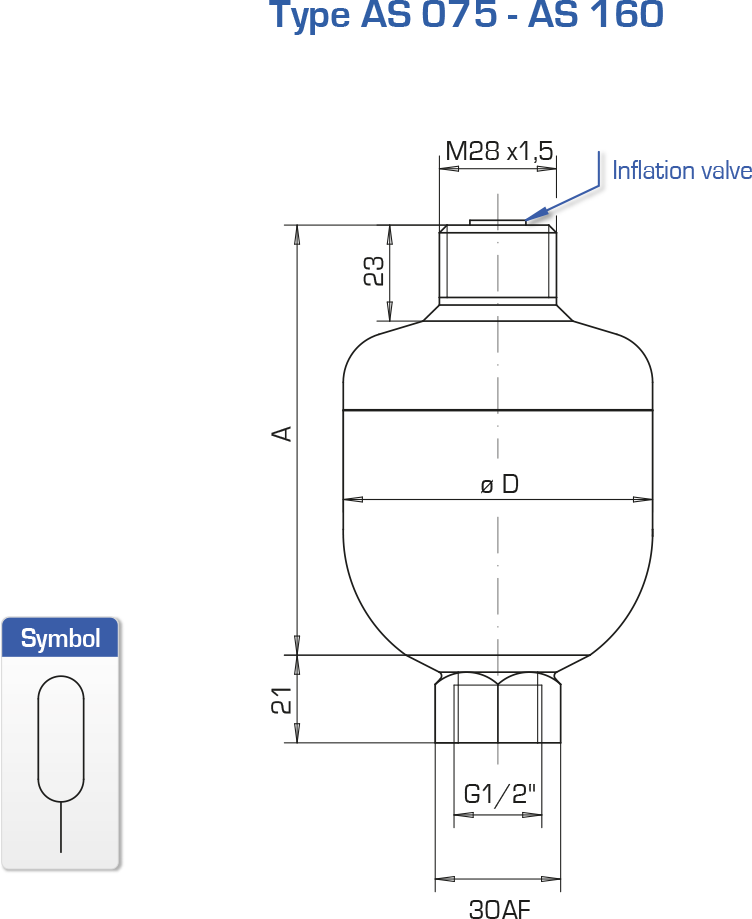

Spherical accumulators AS
Pressure: 210 bar - 250 bar
The hydropneumatic accumulator is a reservoir of power which is called on if needed.
• Membrane accumulator
• recommended nitrogen pre-inflation pressure: 0.8 x service pressure
| Type | Reference | |||||
| Pressure
Max.
|
Capacity
|
A
|
øD
|
Weight
|
||
| bar | cm3 | mm | mm | Kg | ||
| AS 075 | A 66 334 | 250 | 75 | 91 | 64 | 0.7 |
| AS 160 | A 66 318 | 210 | 160 | 103 | 74 | 0.8 |
