Double-acting cartridge clamp CD

Double-acting - Screw type
Max force at 350 bar: 10.8 to 109 kN

Characteristics

• screw type cartridge
• direct supply in the block
• spring return
• domed or tapped end with flats
• supplied with O-ring and anti-extrusion ring

Design

• steel body with anti-corrosion treatment
• treated steel rod
• double sealing on rod

Nota

The use of single-acting clamps is recommended when cutting fluid is used

Print this sheet
Double-acting cartridge clamp CD : Linear cylinders - Quiri - 2

Part numbers of packs of nitrile seals for CD: 141 ***/900
Part numbers of packs of Viton™ seals for CD. V: 141 ***/960

Force

at

350

bar

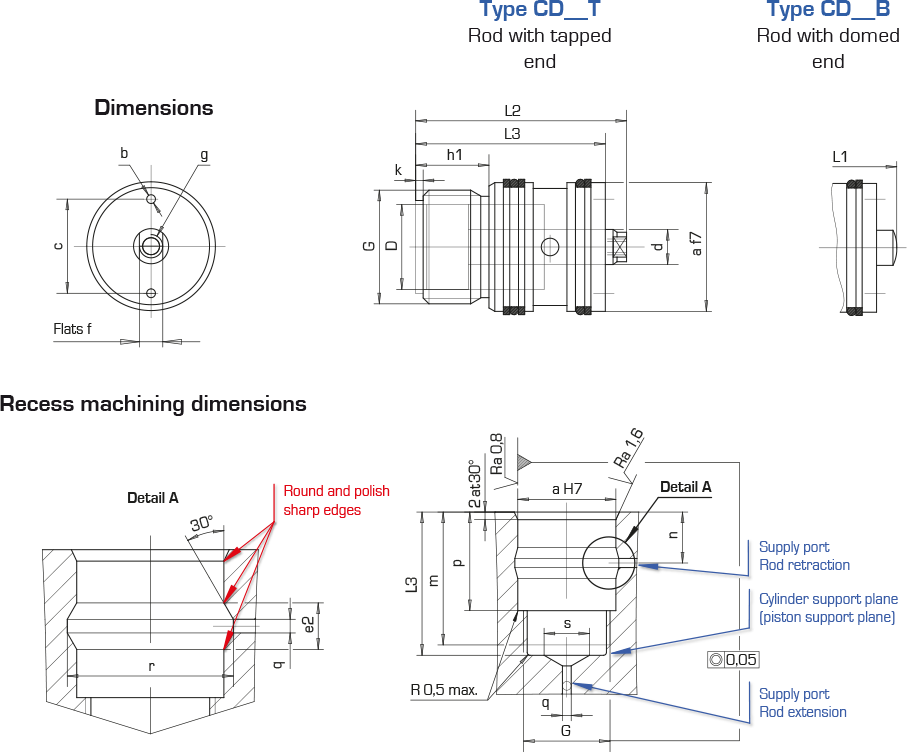

 Travel Thrust cross section Rod

øD

 Rod

ød

 Type Reference
L1





 L2





 L3





 h1





 øa





 øb





 c





 ør

e2



 f





 G





 g





 k

max



 p

+1

0

 q





 m





 n





 s




kN mm cm2 mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
P 10.8 20 P 3.14 20 10 CD 15 B 141 429/000 48 51 44 17 28 4 22 29 8 M26 x 1.5 M6 lg. 12 3 28 3 41 14 15 3D
T 8 T 2.35 CD 15 T 141 429/100 5
P 17.1 25 P 4.9 25 14 CD 25 B 141 103/000 56 59 52 19 34 4 28 35 11 M32 x 1.5 M8 lg. 12 4 34 3 48 16 20 3D
T 11.9 T 3.4 CD 25 T 141 103/100 5
P 28.0 25 P 8.0 32 16 CD 40 B 141 104/000 61 64 56 22 42 5 32 43.6 13 M40 x 1.5 M10 lg.15 4 35 4 52 19 27 3D
T 21.0 T 6.0 CD 40 T 141 104/100 7
P 43.7 40 P 12.5 40 20 CD 65 B 141 105/000 82 85 76.5 30 52 6 40 54 17 M50 x 1.5 M12 lg. 20 5 47 6 71.5 21.5 35 3D
T 32.9 T 9.4 CD 65 T 141 105/100 10
P 68.6 40 P 19.6 50 25 CD 100 B 142 200/000 85 88 77 33 64 8 48 66 19 M62 x 1.5 M16 lg. 22 6 45 6 71 22 45 3D
T 51.4 T 14.7 CD 100 T 142 200/100 10
P 109.2 50 P 31.2 63 32 CD 160 B 142 201/000 99 103 90 40 80 10 62 82 24 M78 x 1.5 M20 lg. 30 6 51 6 84 25 58 3D
T 80.8 T 23.1 CD 160 T 142 200/100 10
