Single-acting threaded clamp FS

Single-acting - spring return
Max force at 350 bar: 2.7 to 109 kN

Single-acting threaded clamp FS : Linear cylinders - Quiri

Characteristics

• spring return
• domed or tapped rod end

Design

• steel body with anti-corrosion treatment
• treated steel rod

Nota

The use of single-acting clamps is recommended when cutting fluid is used

Print this sheet

Single-acting threaded clamp FS : Linear cylinders - Quiri - 2

Part numbers of packs of nitrile seals for FS: 11* ***/900
Example for FS 40 clamp, part no.: 111 110/900

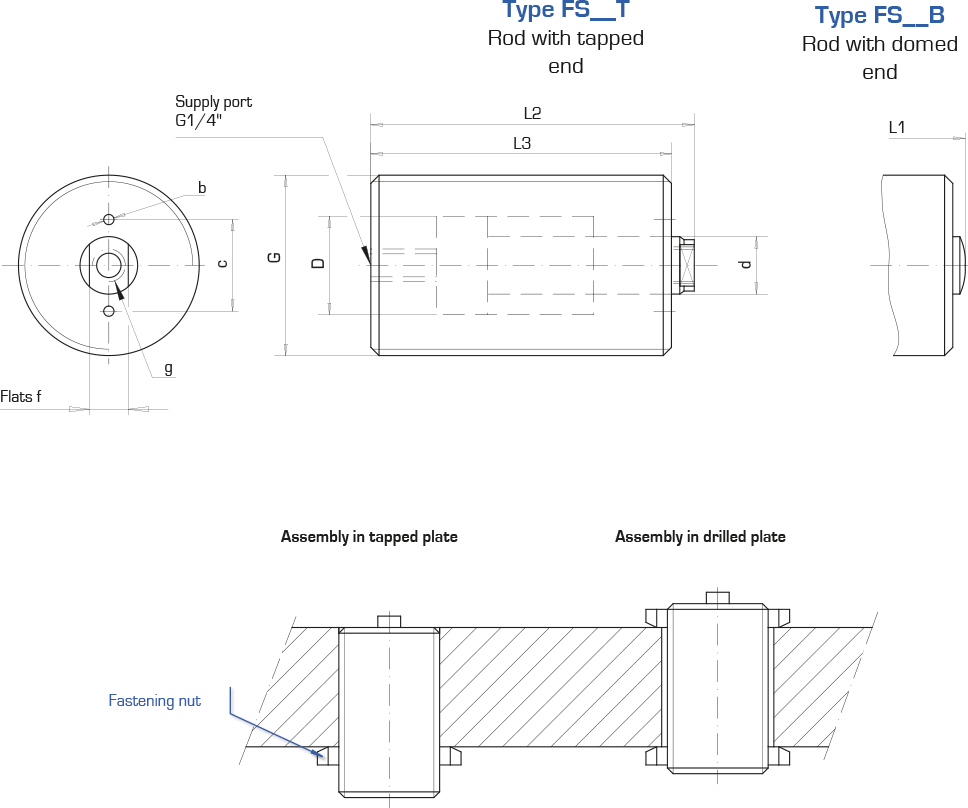

Force at 350 bar	Travel	Thrust cross section	Rod øD	Rod ød	Type	Reference
Force at 350 bar	Travel	Thrust cross section	Rod øD	Rod ød	Type	Reference	L1	L2	L3	øb	c	f	G	g
kN	mm	cm²	mm	mm			mm	mm	mm	mm	mm	mm
2.7	10	0.78	10	5	FS 5 B	111 106/200	49.5	52.5	48.5	2	12.5	–	M22 x 1.5	M3 lg. 6	3D
2.7	10	0.78	10	5	FS 5 T	111 106/300	49.5	52.5	48.5	2	12.5	–	M22 x 1.5	M3 lg. 6	3D
7	12	2.0	16	8	FS 10 B	111 107/200	58.5	61.5	57.5	3	18	–	M30 x 1.5	M5 lg. 10	3D
7	12	2.0	16	8	FS 10 T	111 107/300	58.5	61.5	57.5	3	18	–	M30 x 1.5	M5 lg. 10	3D
11	12	3.14	20	10	FS 15 B	111 108/200	63.5	66.5	61	4	22	8	M36 x 1.5	M6 lg.12	3D
11	12	3.14	20	10	FS 15 T	111 108/300	63.5	66.5	61	4	22	8	M36 x 1.5	M6 lg.12	3D
17.1	16	4.9	25	14	FS 25 B	111 109/200	71.5	74.5	69	4	28	11	M42 x 1.5	M8 lg. 12	3D
17.1	16	4.9	25	14	FS 25 T	111 109/300	71.5	74.5	69	4	28	11	M42 x 1.5	M8 lg. 12	3D
28	16	8.0	32	16	FS 40 B	111 110/200	76.5	79.5	73	5	32	13	M50 x 1.5	M10 lg. 15	3D
28	16	8.0	32	16	FS 40 T	111 110/300	76.5	79.5	73	5	32	13	M50 x 1.5	M10 lg. 15	3D
44	20	12.56	40	20	FS 65 B	111 111/200	98.5	101.5	94.5	6	40	17	M60 x 1.5	M12 lg. 20	3D
44	20	12.56	40	20	FS 65 T	111 111/300	98.5	101.5	94.5	6	40	17	M60 x 1.5	M12 lg. 20	3D
68.7	20	19.62	50	25	FS 100 B	112 092/200	101.5	104.5	95	8	48	19	M75 x 1.5	M16 lg. 22	3D
68.7	20	19.62	50	25	FS 100 T	112 092/300	101.5	104.5	95	8	48	19	M75 x 1.5	M16 lg. 22	3D
109	25	31.15	63	32	FS 160 B	112 093/200	117.5	120.5	109.5	10	62	24	M95 x 2	M20 lg. 30	3D
109	25	31.15	63	32	FS 160 T	112 093/300	117.5	120.5	109.5	10	62	24	M95 x 2	M20 lg. 30	3D
