Double-acting cartridge clamp – screw type CDD

Double-acting - Screw type
Max force at 350 bar: 7 to 28 kN

Double-acting cartridge clamp – screw type CDD : Linear cylinders - Quiri

Characteristics

• screw type cartridge
• direct supply in the block
• available with Viton™ seal (100°C < T° < 150 °C)
• supplied with O-ring and anti-extrusion ring

Design

• steel body with anti-corrosion treatment
• treated steel rod
• double sealing on rod

Nota

The use of single-acting clamps is recommended when cutting fluid is used

Print this sheet

Double-acting cartridge clamp – screw type CDD : Linear cylinders - Quiri - 2

Part numbers of packs of nitrile seals for CDD: 141 ***/900
Part numbers of packs of Viton™ seals for CDD. V: 141 ***/960

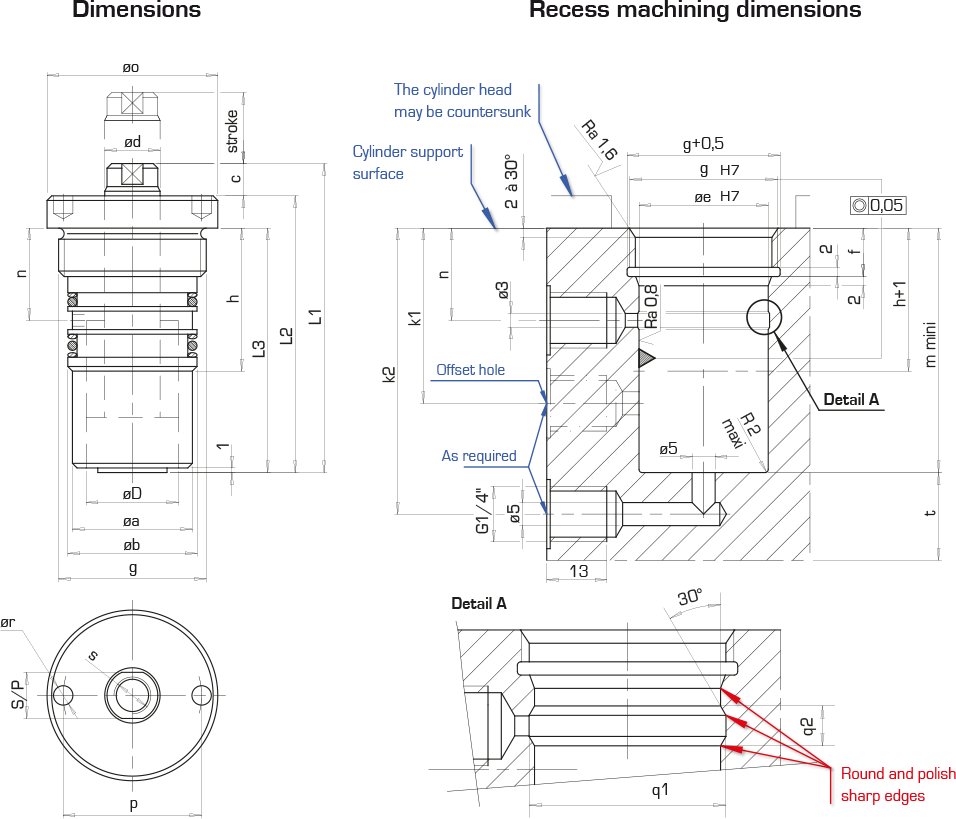

Force at 350 bar		Travel	Thrust cross section		Rod øD	Rod ød	Type	Reference
Force at 350 bar		Travel	Thrust cross section		Rod øD	Rod ød	Type	Reference	L1 ±1	L2	L3	øa	øb f7	c	øe H7	f +0.2	g	h	k1 min	k2 min	m +0.5	n	øo	p	øq1 q2	ør	s	t	S/P
kN		mm	cm²		mm	mm			mm	mm	mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm	mm	mm		mm	mm
P	7	16	P	2.0	16	10	CDD 10	141 374/000	65	59	48	21	22	6	22	8.5	M26 x 1.5	30	34	53	48	19	31	25	23	2.5	M6 x 12	8	8	3D
T	4.2	16	T	1.2	16	10	CDD 10 V	141 374/060	65	59	48	21	22	6	22	8.5	M26 x 1.5	30	34	53	48	19	31	25	5	2.5	M6 x 12	8	8	3D
P	10.8	20	P	3.1	20	12	CDD 15	141 375/000	67	60	53	26	28	7	28	10.5	M32 x 1.5	31	35	62	53	20	37	30	29	4.2	M8 x 12	10	10	3D
T	7	20	T	2.0	20	12	CDD 15 V	141 375/060	67	60	53	26	28	7	28	10.5	M32 x 1.5	31	35	62	53	20	37	30	5	4.2	M8 x 12	10	10	3D
P	17.1	25	P	4.9	25	16	CDD 25	141 376/000	82	75	65	33	35	7	35	13.5	M40 x 1.5	39	43	72	65	25	44	35	36	5.2	M10 x 15	11	13	3D
T	10.1	25	T	2.9	25	16	CDD 25 V	141 376/060	82	75	65	33	35	7	35	13.5	M40 x 1.5	39	43	72	65	25	44	35	5	5.2	M10 x 15	11	13	3D
P	28	32	P	8.0	32	20	CDD 40	141 377/000	94	84	72	42	44	10	44	15.5	M50 x 1.5	44	48	79	72	28	54	45	45	5.2	M12 x 15	13	17	3D
T	17.1	32	T	4.9	32	20	CDD 40 V	141 377/060	94	84	72	42	44	10	44	15.5	M50 x 1.5	44	48	79	72	28	54	45	5	5.2	M12 x 15	13	17	3D
