Hydraulic work support – 500 bar – with flange ring and supply taps AVLHT
Single-acting - tap on head
Locking force at 500 bar: 12 to 35 kN
Hydraulic supports are designed to support the workpieces in a specific plane and eliminate vibration during machining.
Support with single hydraulic supply port for extension and locking of the rod.
For the operating principle, consult the guide.
• screw fastening
• body with anti-corrosion treatment
• stainless steel spring
• prestress generated by spring
For operating pressure values below 150 bar, please enquire.
Special models can be made upon request.
IMPORTANT

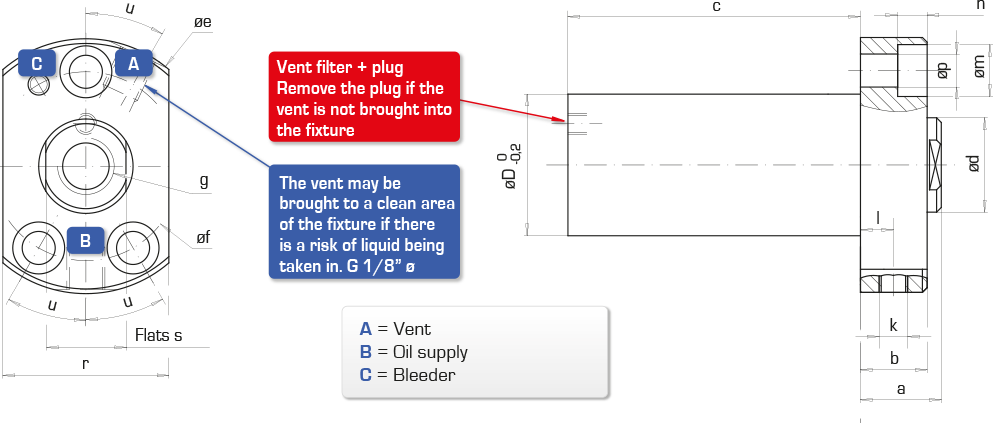

The bleeder must always be located at the highest point in the fixture.
In order to allow the rod to be retracted by springs, the counter pressure must not exceed 2 bar.
Maximum flow rate: 1.5l/min

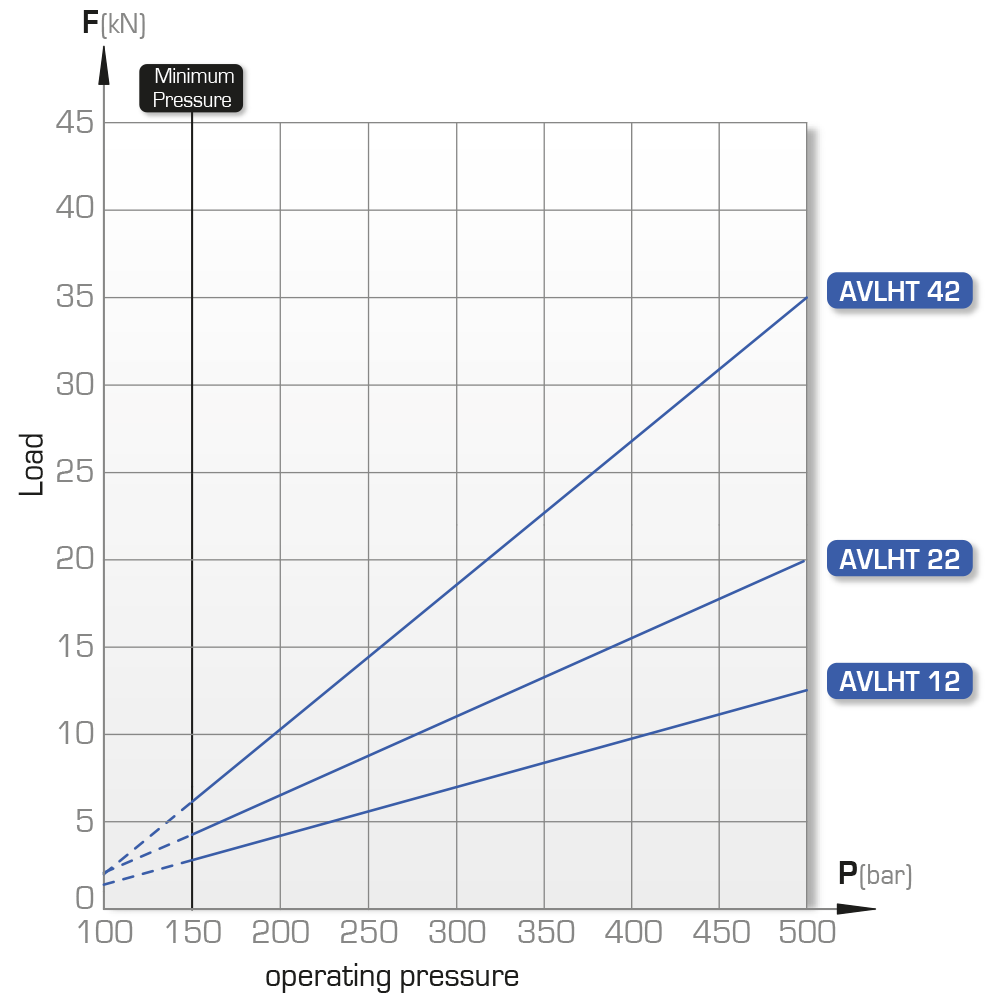

Locking force diagram

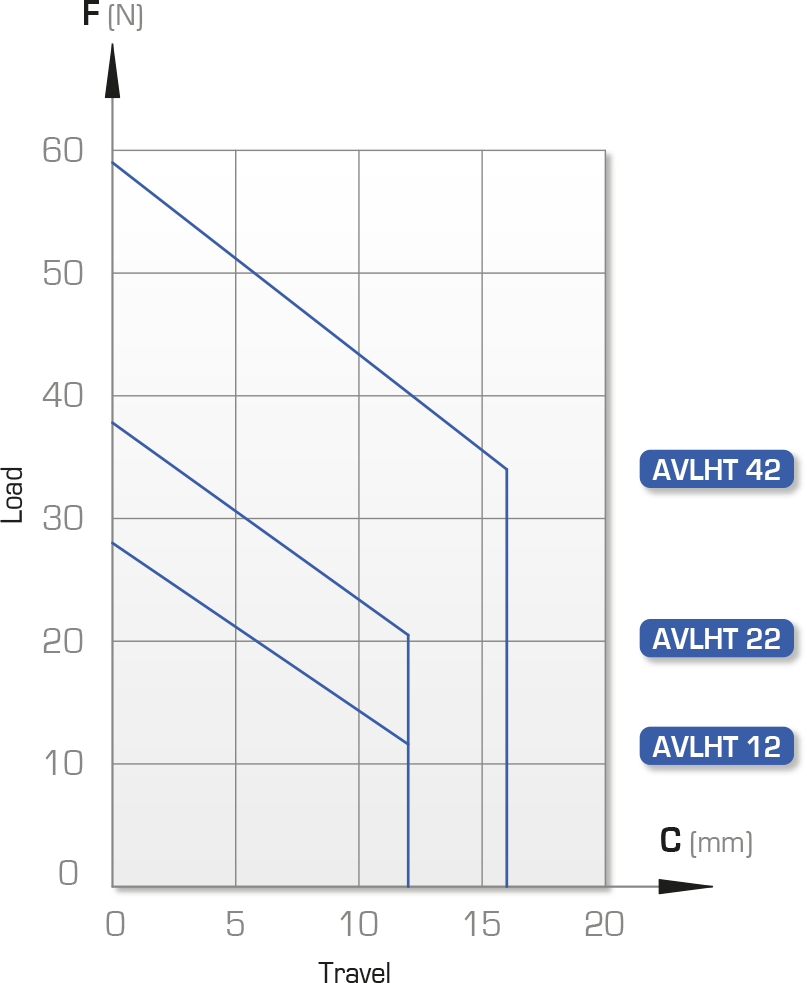

Contact force diagram
| Locking force | Elastic collapse at 500 bar | Travel | Rod
Ø |
Type | Reference | |||||||||||||||||
| D | a | b | c | e | f | g | k | l | m | n | p | r | s | u | ||||||||
| 500 bar | 300 bar | 150 bar | ||||||||||||||||||||
| kN | kN | kN | µm/kN | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | ° | ||||
| 12 | 7 | 2.8 | 3.5 | 12 | 20 | AVLHT 12 | 751 147/000 | 42 | 28 | 20 | 84 | 67 | 54 | M12 lg. 12 | G 1/8’’ | 9 | 11 | 6.5 | 7 | 42 | 17 | 30 |
