Work support, block version – 500 bar – hydraulic extension AVBH

Block version
Locking force at 500 bar: 12 to 35 kN

Hydraulic extension
Contact force by a spring
Single-acting with spring return

Definition

Hydraulic supports are designed to support the workpieces in a specific plane and eliminate vibration during machining.
Support with single hydraulic supply port for extension and locking of the rod.
For the operating principle, consult the guide.

Characteristics

• screw fastening
• rod treated to prevent seizing and corrosion
• stainless steel spring
• prestress generated by spring
• Supplied with O-rings:
5.28 x 1.78 – 90 NBR for AVBH 12 and AVBH22
7.65 x 1,78 – 90 NBR for AVBH 42

Optional

Special models available on request.
Please enquire for clamping pressure values below 150 bar.

Nota

IMPORTANT
The bleeder must always be located at the highest point in the fixture.
In order to allow the rod to be retracted by springs, the counter pressure must not exceed 2 bar.
Maximum flow rate: 1.5l/min

Print this sheet
Work support, block version – 500 bar – hydraulic extension AVBH : Hydraulic work supports - Quiri - 2

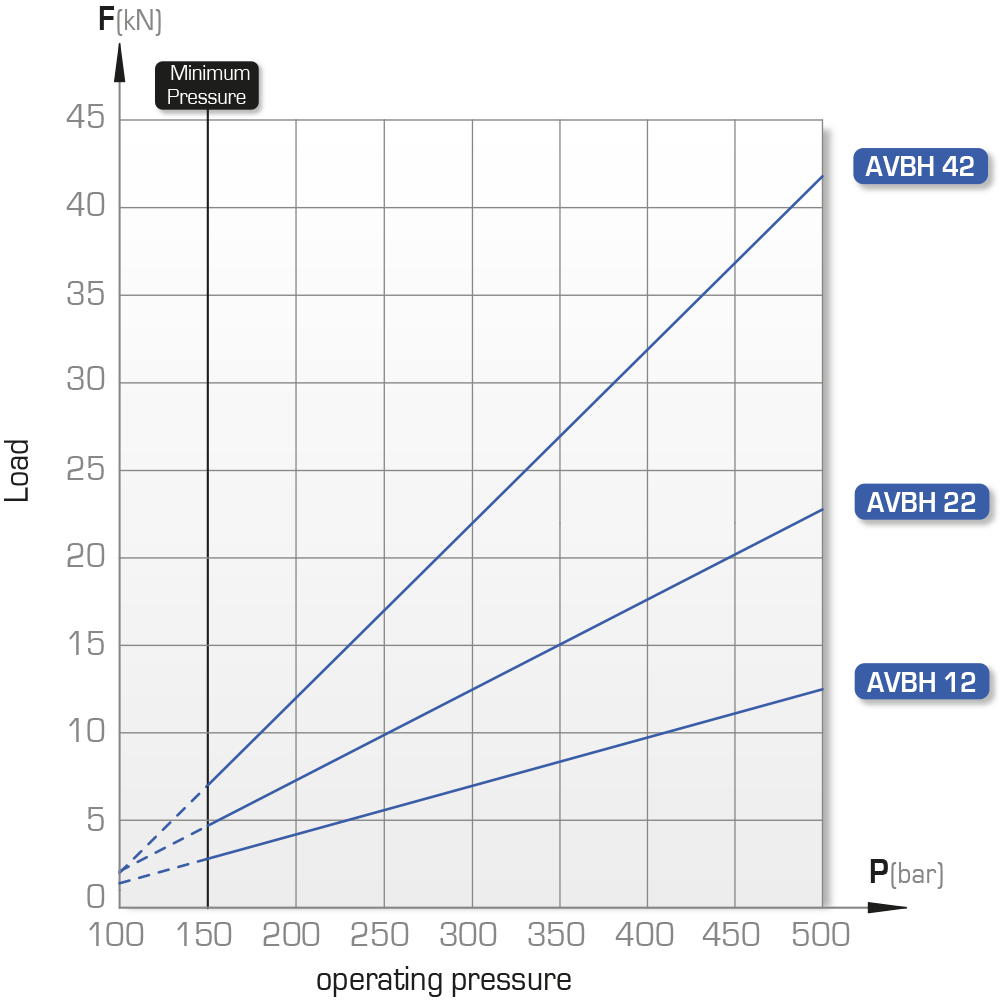

Locking force diagram

Work support, block version – 500 bar – hydraulic extension AVBH : Hydraulic work supports - Quiri - 3

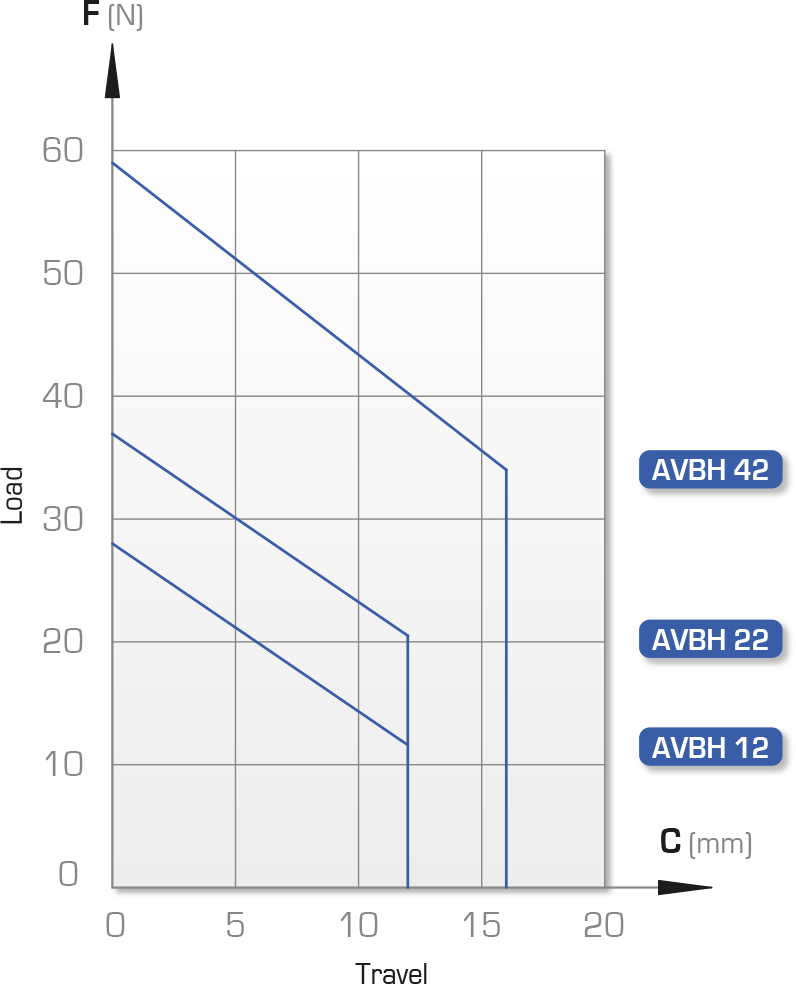

Contact force diagram

Work support, block version – 500 bar – hydraulic extension AVBH : Hydraulic work supports - Quiri - 4

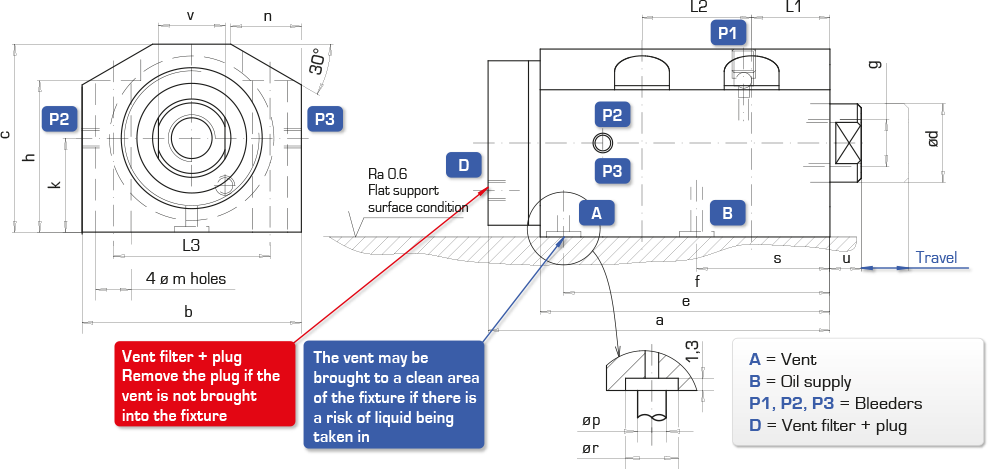

Locking force

at

 Elastic collapse at 500 bar Travel

Rod

Ø





 Type Reference
a b c e f g h k m n p r s u v L1 L2 L3
500 bar 300 bar 150 bar
kN kN kN µm/kN mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm
12 7 2.8 4.5 12 20 AVBH 12 751 060/000 104 56 48 83 68 M12 lg. 12 38 24 9 18 4 8.8 34 8 17 20 28 40 3D
20 12.5 4.7 3 12 30 AVBH 22 751 061/000 104 70 58 83 72 M12 lg. 15 44 29 11 25 4 8.8 34 10 26 20 28 52 3D
35 22 7 2 16 40 AVBH 42 751 072/000 138 96 70 109 98 M16 lg. 14 55 35 15 25 5 11 42 12 34 23 38 74 3D
