Work support – Screw type M36 M48 and M60 – 500 bar – with vent AVHE **

Single-acting - threaded - with vent
Locking force at 500 bar: 15 to 42 kN

Definition

Hydraulic supports are designed to support the workpieces in a specific plane and eliminate vibration during machining

Characteristics

• threaded steel body with anti-corrosion treatment
• treated steel rod
• very compact design
• travel: 10 mm and 16 mm
• hydraulic extension and locking

Option

Special models made on request.

Nota

IMPORTANT for AVHE
In order to allow the rod to be retracted by springs, the counter pressure must not exceed 2 bar.

Print this sheet

Work support – Screw type M36 M48 and M60 – 500 bar – with vent AVHE ** : Hydraulic work supports - Quiri - 2

Connection block

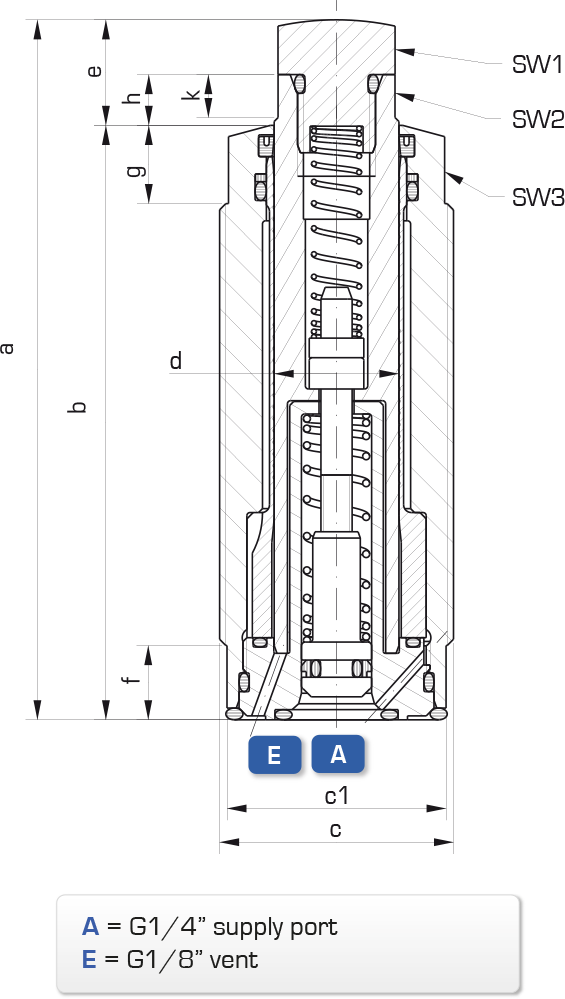

Work support – Screw type M36 M48 and M60 – 500 bar – with vent AVHE ** : Hydraulic work supports - Quiri - 3

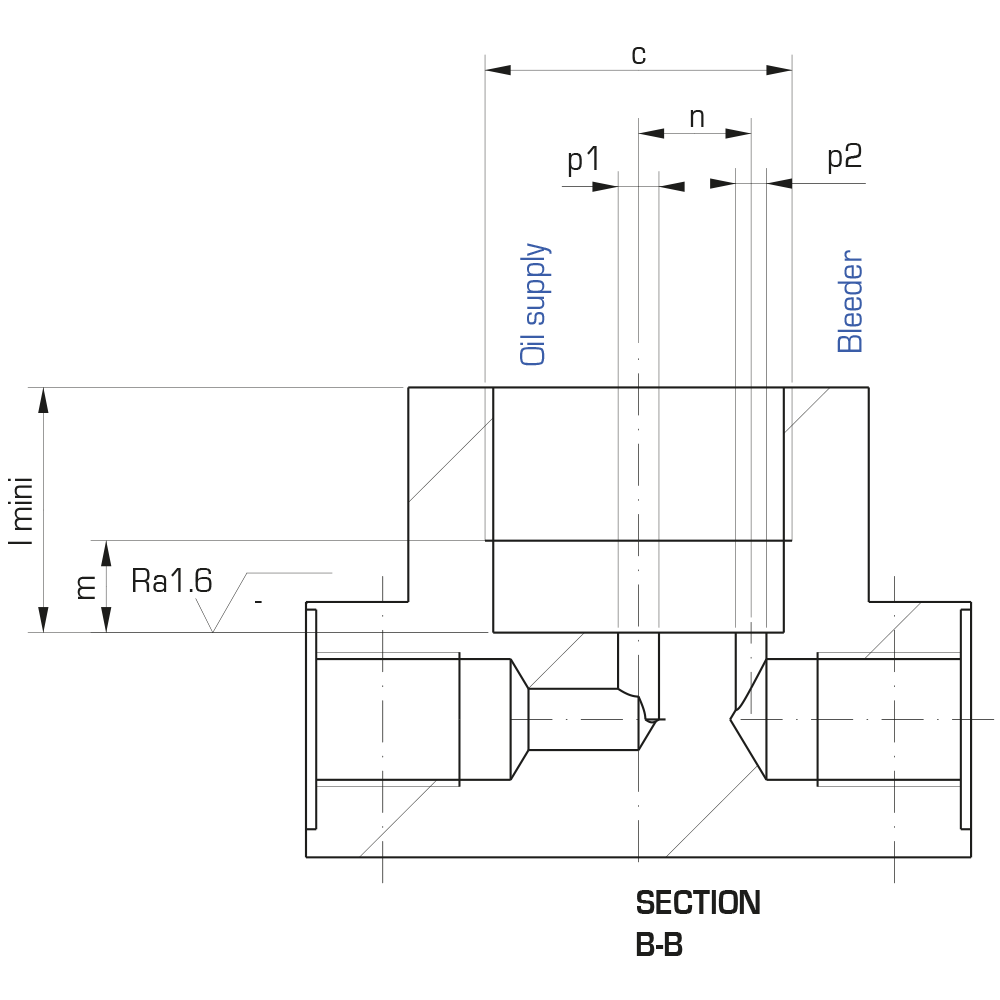

Recess machining dimensions

Work support – Screw type M36 M48 and M60 – 500 bar – with vent AVHE ** : Hydraulic work supports - Quiri - 4

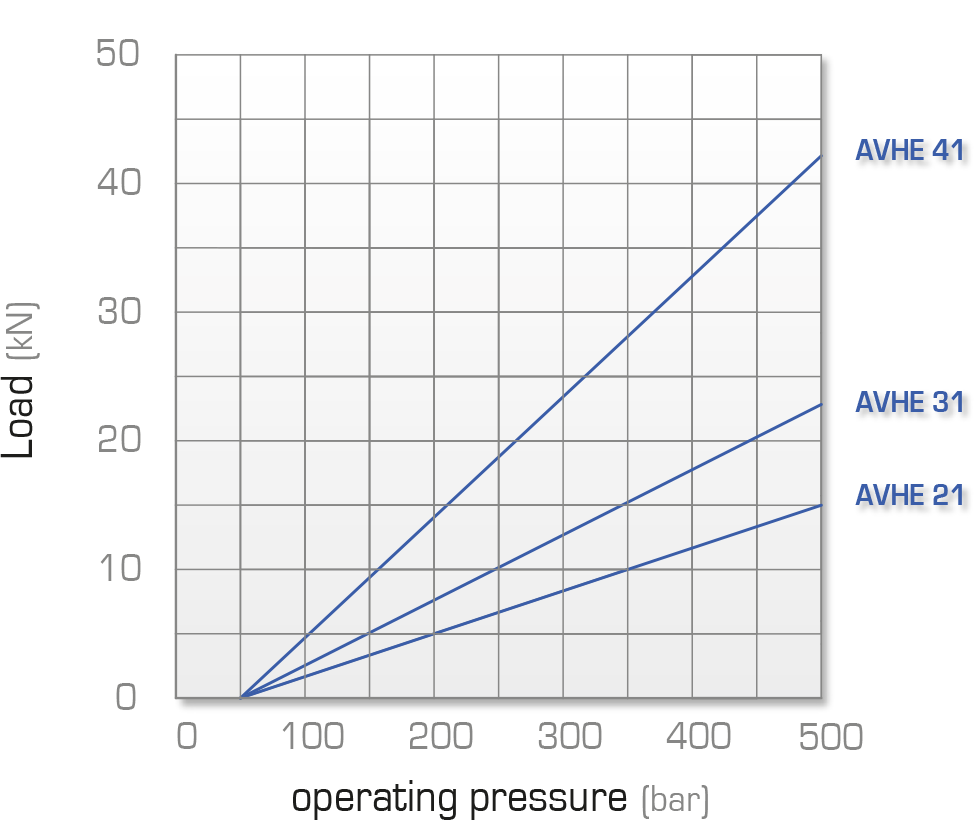

Locking force diagram

Work support – Screw type M36 M48 and M60 – 500 bar – with vent AVHE ** : Hydraulic work supports - Quiri - 5

Locking force		Elastic collapse at 500 bar	Contact force Min – Max	Rod diameter ød	Travel	Swept volume	Max flow rate	Min. recommended pressure	Maximum counter-pressure	Temperature	Tightening torque	Weight	a	a1	b	c	c1	e	f	g	h	k	SW1	SW2	SW3	Type	Reference
500 bar	160 bar	Elastic collapse at 500 bar	Contact force Min – Max	Rod diameter ød	Travel	Swept volume	Max flow rate	Min. recommended pressure	Maximum counter-pressure	Temperature	Tightening torque	Weight	a	a1	b	c	c1	e	f	g	h	k	SW1	SW2	SW3	Type	Reference
kN	kN	µm/kN	N	mm	mm	cm³	cm³/s	bar	bar	°C	Nm	kg	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm	mm	mm
15	3	3.5	13 – 25	20	10	0.8	25	50	2	0 to 70	100	0.5	86	106	72.5	M36x1.5	34.1	13	17.5	12	6	5	30	17	19	AVHE21 – C10	751 169/500
23.5	5.6	2.5	24 – 39	28	10	1.5	25	50	2	0 to 70	200	1	90	107	78	M48x1.5	46.1	12	21	12	4	3	41	22	22	AVHE31 – C10	751 170/500
42	11	2.5	38 – 61	36	16	5	35	50	2	0 to 70	400	2	115	132	102.5	M60x1.5	58.1	12.5	21	18	4.5	4	50	30	22	AVHE41 – C16	751 172/500

Connection block

l	m	n	p1	p2	r1	r2	r3	r4	s1	s2	t1	t2	u1	u2	v1	v2	w1	w2	for type	Reference
mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
35	15	12	4	3	50	55	55	30.5	39	44	11.5	37	12	12	25	37	24.5	40.5	AVHE21 – C10	834 B67/000
42	17	16	4	3	60	68	60	39	49	59	12	47	12	12	30	47	31	40.5	AVHE31 – C10	834 B65/000
46	16	22	4	3	68	80	63	43	57	69	12	56	12	12	34	56	37	58	AVHE41 – C16	834 B66/000
