Work support – Screw type M30 x1.5 – 500 bar – with vent AVHE 12

Single-acting - M30 - with metal scraper and vent
Locking force at 500 bar: 9.5 kN

Hydraulic supports are designed to support the workpieces in a specific plane and eliminate vibration during machining

• threaded steel body with anti-corrosion treatment
• treated steel rod
• very compact design
• travel: 8 mm and 15 mm
• hydraulic extension and locking

Special models made on request.

IMPORTANT for AVHE
In order to allow the rod to be retracted by springs, the counter pressure must not exceed 2 bar.

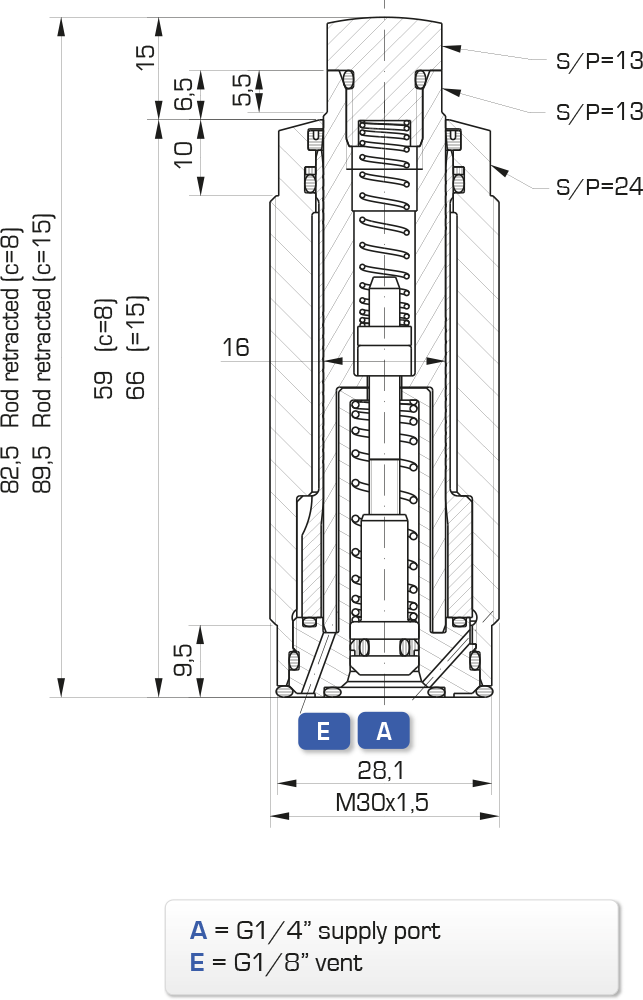

Print this sheet
Work support – Screw type M30 x1.5 – 500 bar  – with vent AVHE 12 : Hydraulic work supports - Quiri - 2

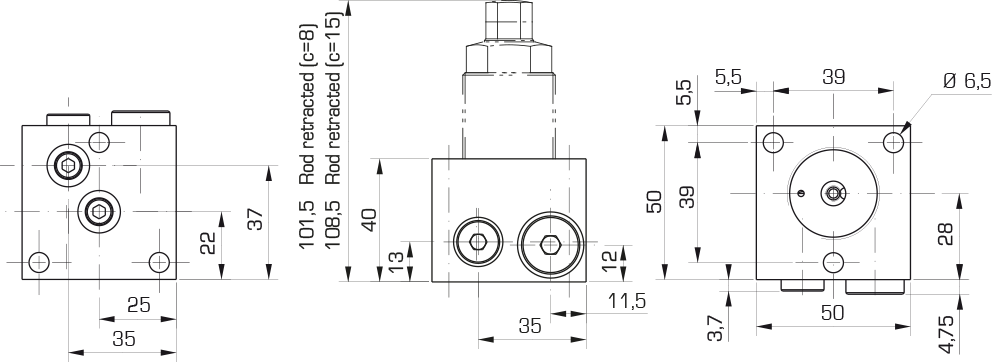

Supply unit: 834 B63/000

Work support – Screw type M30 x1.5 – 500 bar  – with vent AVHE 12 : Hydraulic work supports - Quiri - 3

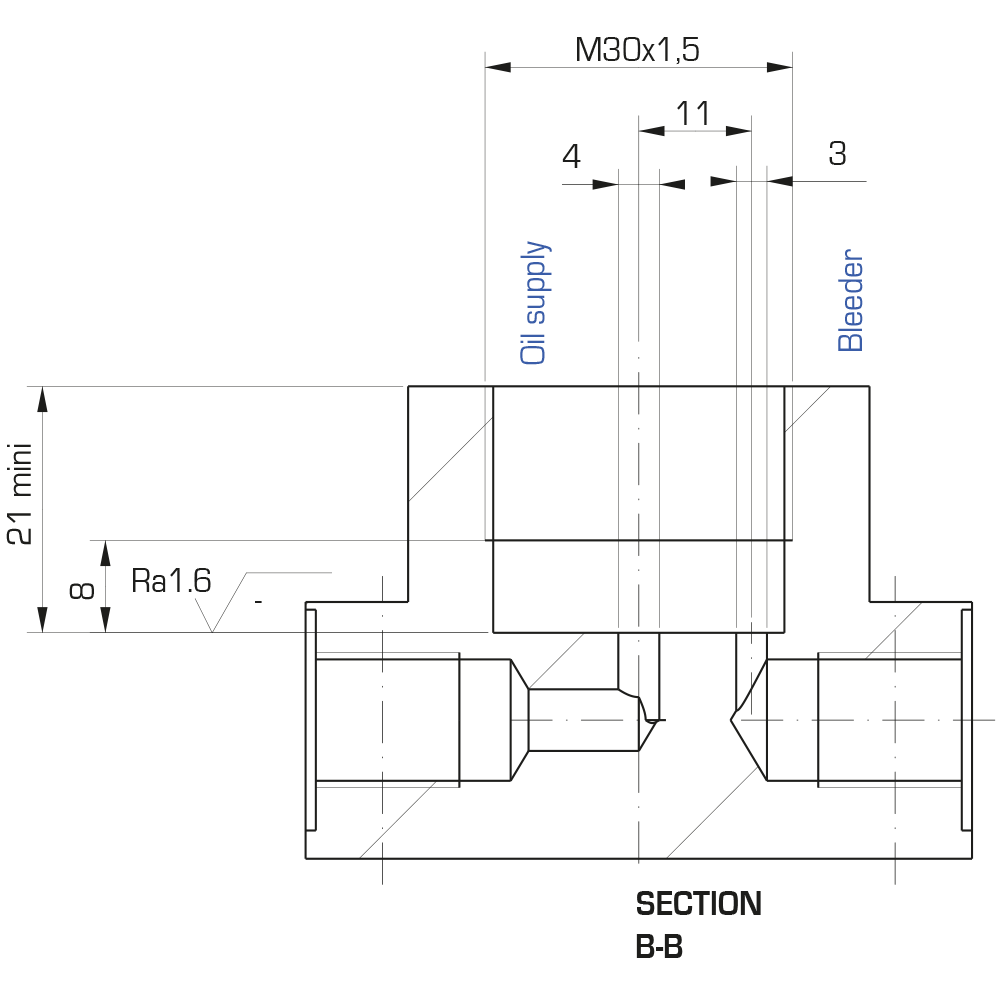

Recess machining dimensions

Work support – Screw type M30 x1.5 – 500 bar  – with vent AVHE 12 : Hydraulic work supports - Quiri - 4

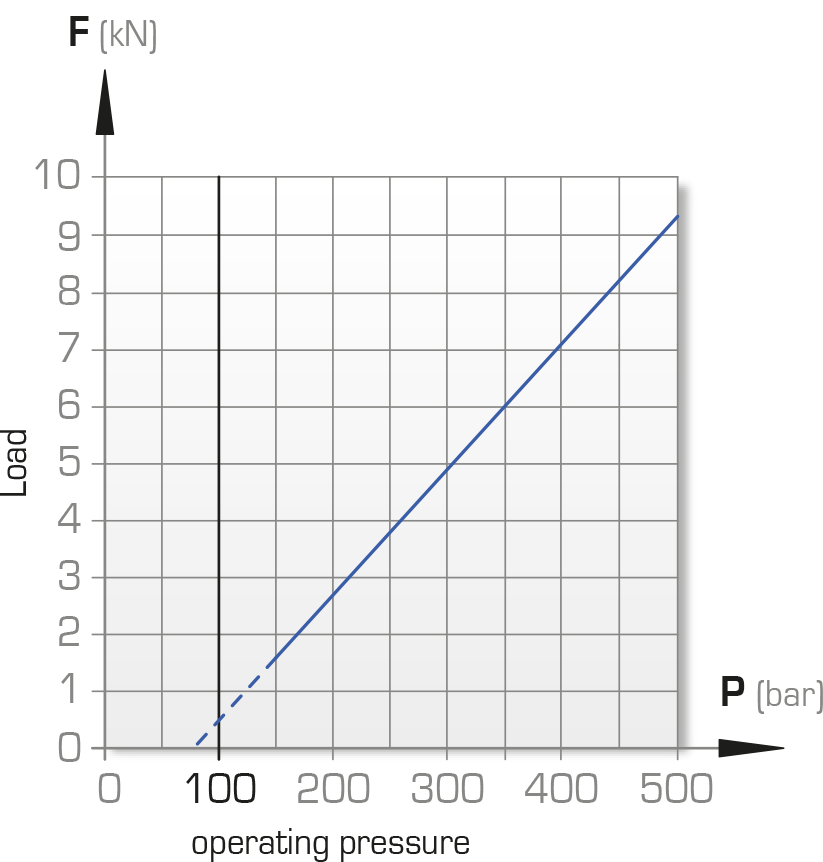

Locking force diagram

Work support – Screw type M30 x1.5 – 500 bar  – with vent AVHE 12 : Hydraulic work supports - Quiri - 5
Locking force Elastic collapse at 500 bar Contact force

Min – Max

Rod diameter

ød

Travel Swept volume Max flow rate Min. recommended pressure Maximum counter-pressure Temperature Tightening torque Weight Type Reference
500 bar 350 bar 160 bar
kN kN kN µm/kN N mm mm cm3 cm3/s bar bar °C Nm kg
9.5 6.5 2 4 11 – 18 16 8 0.5 25 160 2 0 to 70 60 0.3 AVHE12 – C08 751 109/500
9.5 6.5 2 4 10 – 23 16 15 1 25 160 2 0 to 70 60 0.4 AVHE12 – C15 751 157/500
