Air hydraulic pumps with remote control – 700 bar – PHP

For single acting cylinders

Features
Options

Features

• Hydraulic pressure proportional to air pressure
• Working cycle: advance / hold / return
• 3/3 directionnal valve for single-acting cylinders
• With wired remote control (length 3m)
• External adjustable pressure relief valve, set at 700 bar
• Useful tank capacity 2.5 l (polyethylene)
• Useful tank capacity 4 l (steel)
• Inlet pressure: 7 bar
• Degressive flow rate 1200 to 70 cm3/min
• Air consumption at no load: 350 l/min at 7 bar
• With 3/8 NPT oil outlet connection
• Use of a filter regulator lubricator (type FRL 14) is mandatory

Options

• Other relief valve setting on request

Print this sheet

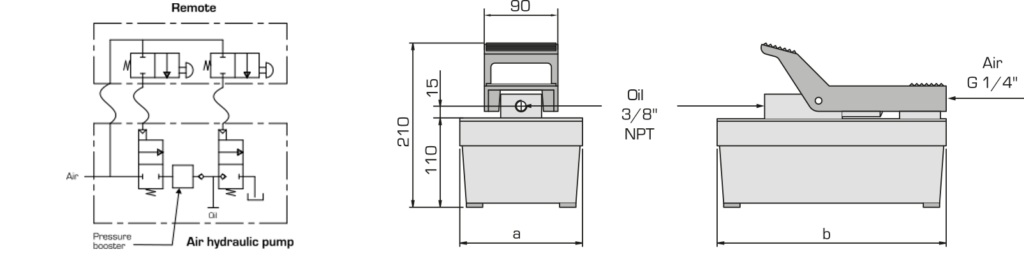

PHP 723D/753D

Air hydraulic pumps with remote control – 700 bar – PHP : Air hydraulic pumps 700 bar - Quiri - 2

Maximum pressure	Usable oil capacity (cm³)	Oil flow (cm³/min)		Reference	To use with cylinder…	Dimensions		Weight (kg)
Maximum pressure	Usable oil capacity (cm³)	no load	at 700 bar	Reference	To use with cylinder…	a	b	Weight (kg)
700	2400	1200	70	PHP 723D	single acting	170	310	11
700	4000	1200	70	PHP 753D	single acting	320	320	13
