Banjo

For Ø8 and Ø12 steel pipe - ISO 8434-1 - S series - PN630

Print this sheet
Banjo : Valves & fitting - Quiri

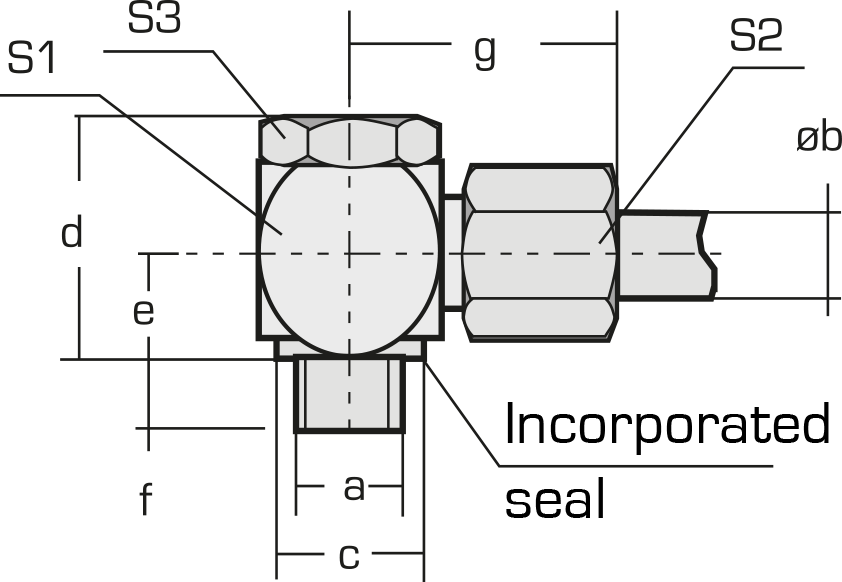

a b Reference Dimensions (mm)
c d e f g S1 S2 S3
G 1/4’’ 8 A32090 * 18 30 14 12 31 22 19 19
G 3/8’’ 12 A32092 * 22 36 16,5 12 35 27 24 24
M18x1,5 12 A32091 23 41 20 12 37 30 24 27

* Maximum pressure: 400 bar

Banjo : Valves & fitting - Quiri - 2

NOTE : fittings delivered without nut and without ring
